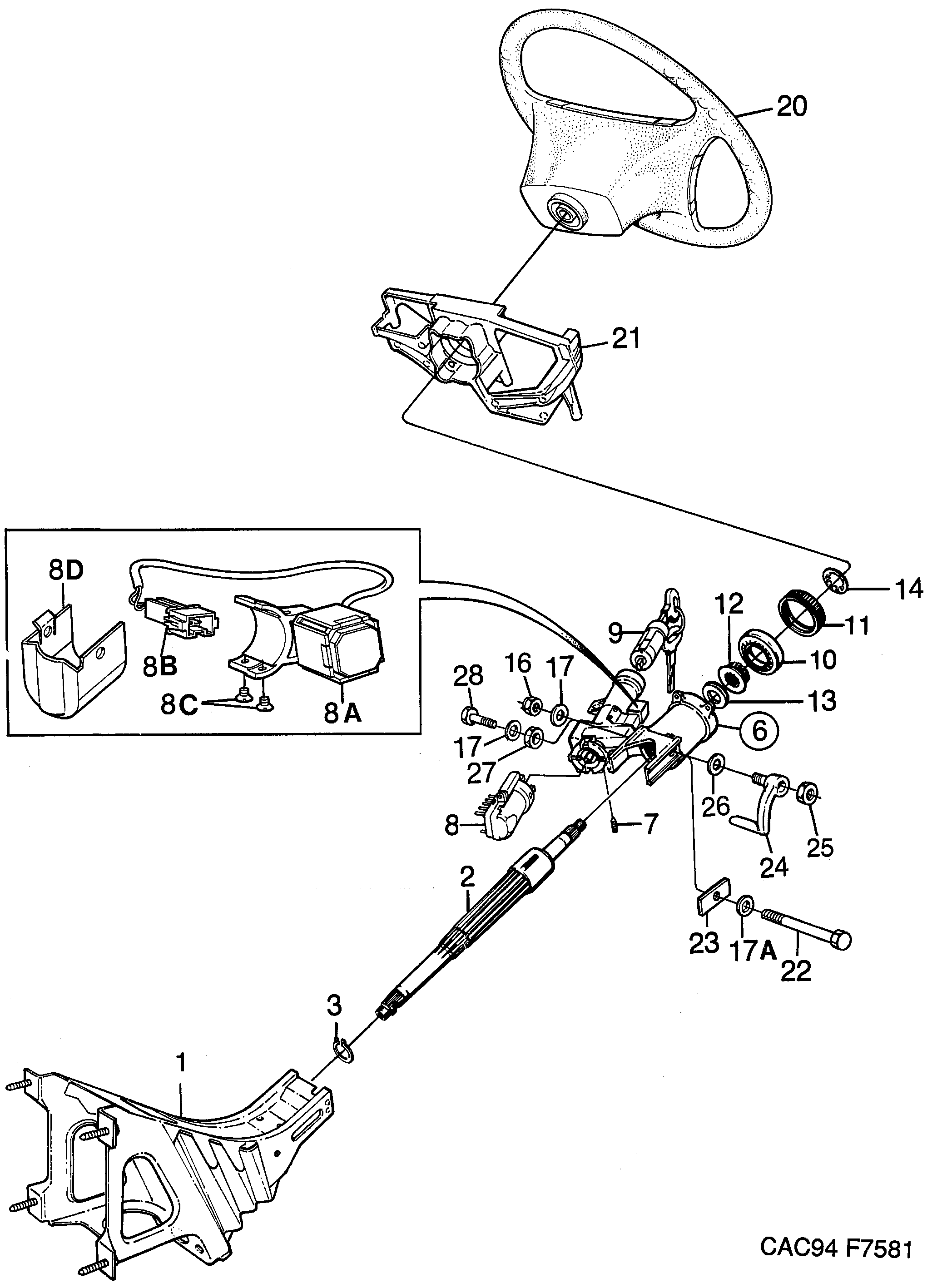

Group 6 Front wheel suspension, section 150
| Pos | Article | Part No. |
|---|---|---|
| 2 | Steering shaft | 8972929 |
| 3 | Snap ring | 7915119 |
| 6 | Lock | 4002648 |
| 6 | Lock | 30545254 (replaces 4311270) |
| 7 | Screw | 7398381 |
| 8 | Switch | 4946315 (replaces 4085783) |
| 8 | Switch | 4946315 |
| 8A | Solenoid | 30545255 (replaces 4314209) |
| 8B | Connector housing | 4117172 |
| 8D | Cover | 4416368 |
| 10 | Ball bearing | 4903985 (replaces 8950701) |
| 11 | Ring | 8950172 |
| 12 | Bushing | 8972374 |
| 13 | Washer | 4000360 |
| 14 | Lock ring | 8954281 |
| 16 | Nut | 7398324 |
| 17 | Washer | 8073108 |
| 17A | Washer | 8073264 |
| 22 | Screw | 8969032 |
| 23 | Spacer | 8969024 |
| 23 | Spacer | 4415972 |
| 24 | Lever | 4531679 |
| 25 | Nut | 92150143 (replaces 7971922) |
| 26 | Washer | 4531687 |
| 27 | Washer | 4531695 |
| 28 | Screw | 8084063 |
