Saab 9000 1994-1998 Front wheel suspension

Group 6 Front wheel suspension, section 120

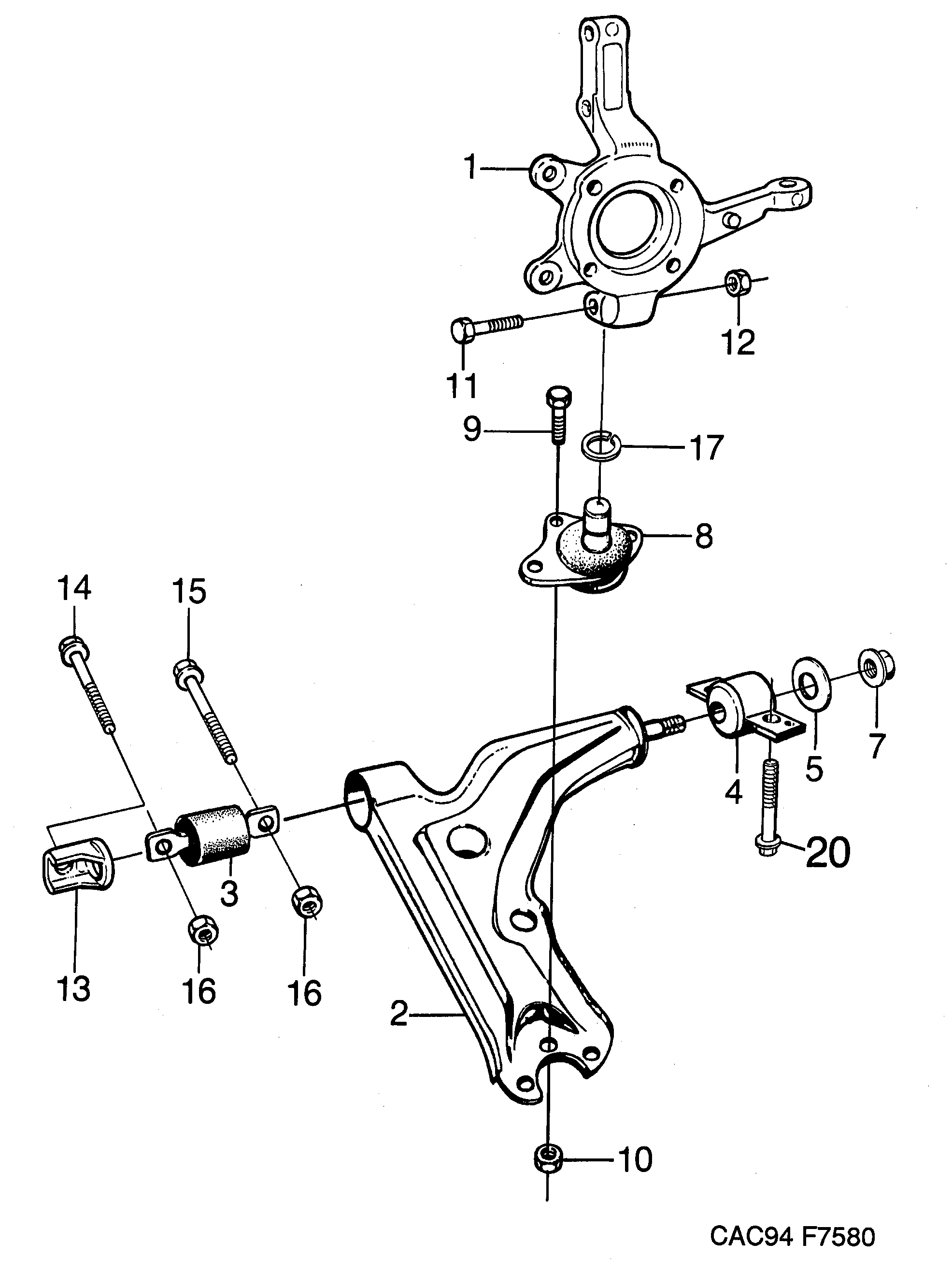

Saab 9000 Front wheel suspension diagram
PosArticlePart No.
1Steering knuckle housing8973216
1Steering knuckle housing8973224
2Swivel arm8958365
2Swivel arm8958373
3Bushing8961476
4Bearing anchorage8965253
5Washer8958779
7Nut92153201 (replaces 7971765)
8Ball joint kit8994212
9Screw7982986
10Nut11066386 (replaces 7975501)
11Screw8965121
12Nut7977309
13Bearing support4426003
14Screw7982036
15Screw4001111
16Nut11900437 (replaces 7973464)
17Lock ring7963168
