Saab 9000 1994-1998 Brakes

Group 5 Brakes, section 480

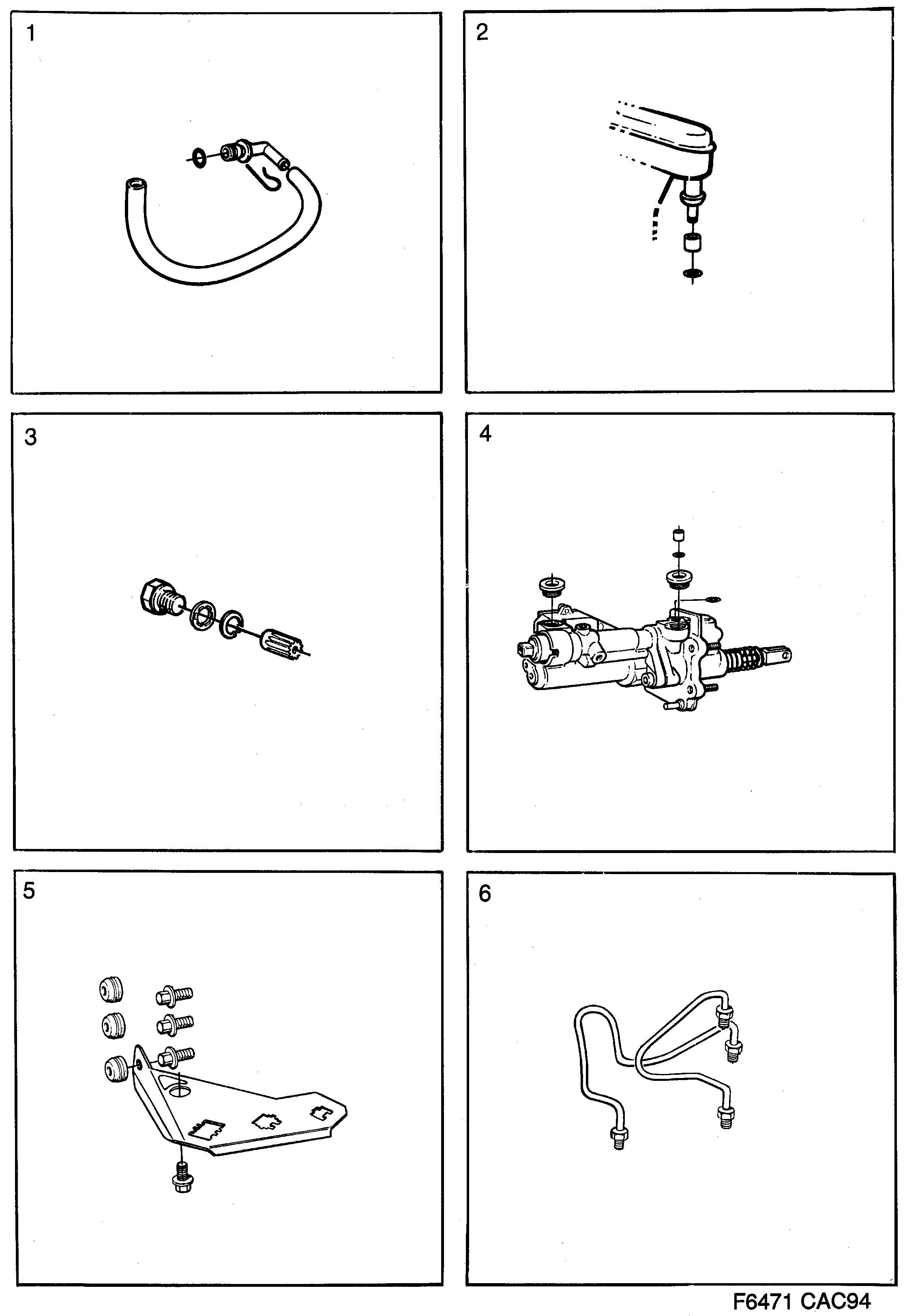

Saab 9000 Brakes diagram

Pos	Article	Part No.
1	Hose kit	4002861
	Hose	9104746
	Nipple	9104738
	O-ring	4003117
2	O-ring kit	8967390
	O-ring	8966681
	Sleeve	8966939
3	Adjuster kit	4107793
	Washer	4107801
	Adjustment screw	4107793 (replaces 8955304)
	Screw	8955312
	Stop ring	4107793 (replaces 8970147)
4	Master cylinder kit	4195889
	O-ring	8967267
	Rubber bushing	4482568 (replaces 8966335)
	O-ring	4195855
	Nut	8074106
5	Attachment kit	4198461
	Bracket	4198065
	Rubber bushing	4198107
	Screw	4198511
	Screw	4198529
6	Brake pipe	4198487
	Brake pipe	4198081
	Brake pipe	4198099
