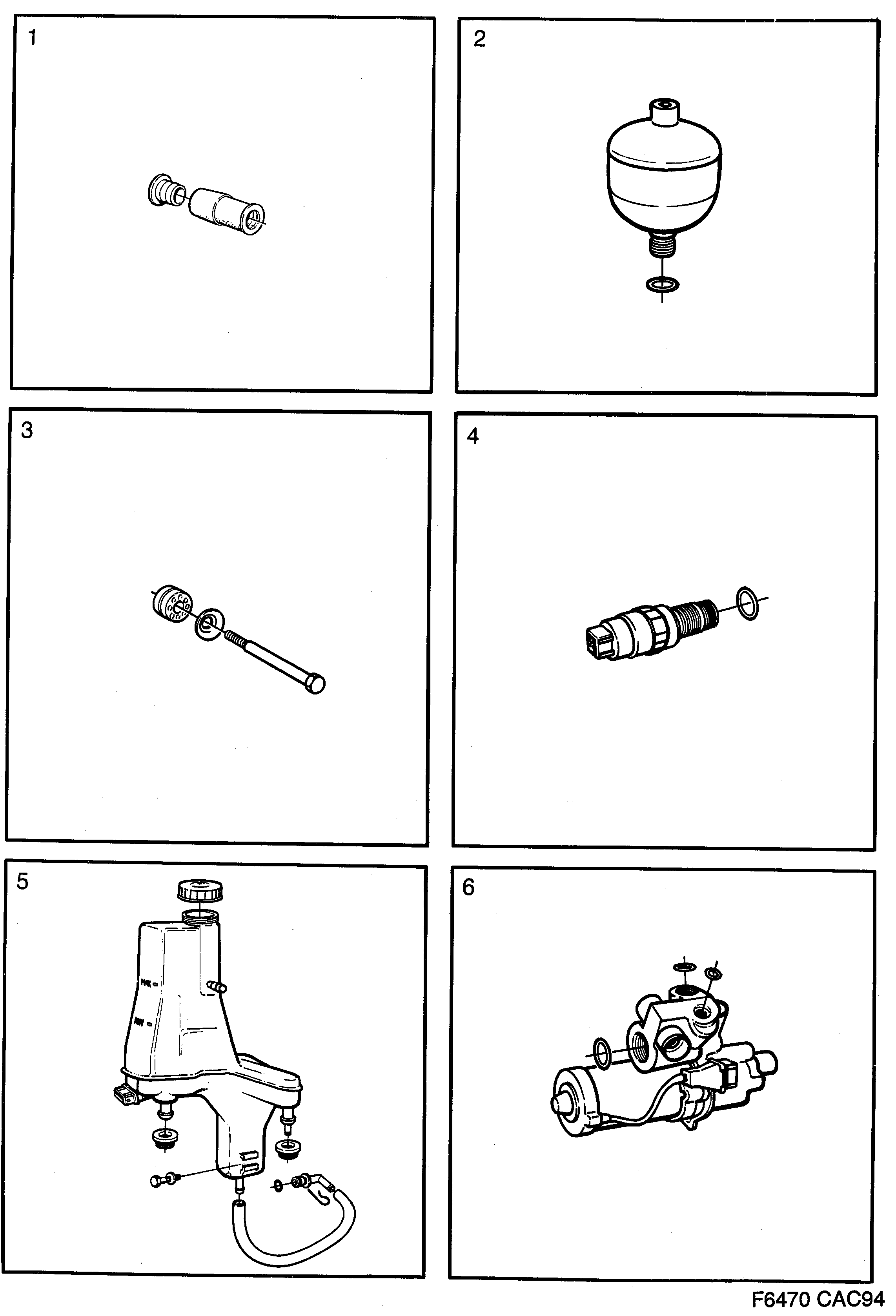

Group 5 Brakes, section 450
| Pos | Article | Part No. |
|---|---|---|
| 1 | Guide | 4467064 |
| Sleeve | 8969107 | |
| Cover | 8955478 | |
| 2 | Accumulator | 4002267 |
| Accumulator | 4001814 | |
| O-ring | 8967234 | |
| Label | 8966707 | |
| 3 | Suspension kit | 4002895 |
| Suspension | 9104811 | |
| Suspension | 8966236 | |
| Spacer | 4003083 | |
| Screw | 9104829 | |
| Sleeve | 9104944 | |
| Washer | 8966251 | |
| 4 | Pressure monitor | 8967309 |
| Pressure monitor | 8966160 | |
| O-ring | 8967325 | |
| 4 | Pressure monitor | 8994071 |
| Shrink hose | 4668737 | |
| Assembly instruction | 8994089 | |
| 5 | Reservoir | 4190617 |
| Bracket | 4195798 | |
| Bracket | 4002051 | |
| Hose kit | 4002861 | |
| O-ring | 4003117 | |
| Nipple | 9104738 | |
| Hose | 9104746 | |
| Reservoir | 4425740 | |
| Cover | 4425690 | |
| O-ring | 8966681 | |
| Sleeve | 8966939 | |
| Rubber bushing | 4482568 (replaces 8966335) | |
| Screw | 8966368 | |
| 6 | Pump kit | 4003158 |
| Pump motor | 4003166 |
