Saab 9000 1990-1993 Brakes

Group 5 Brakes, section 440

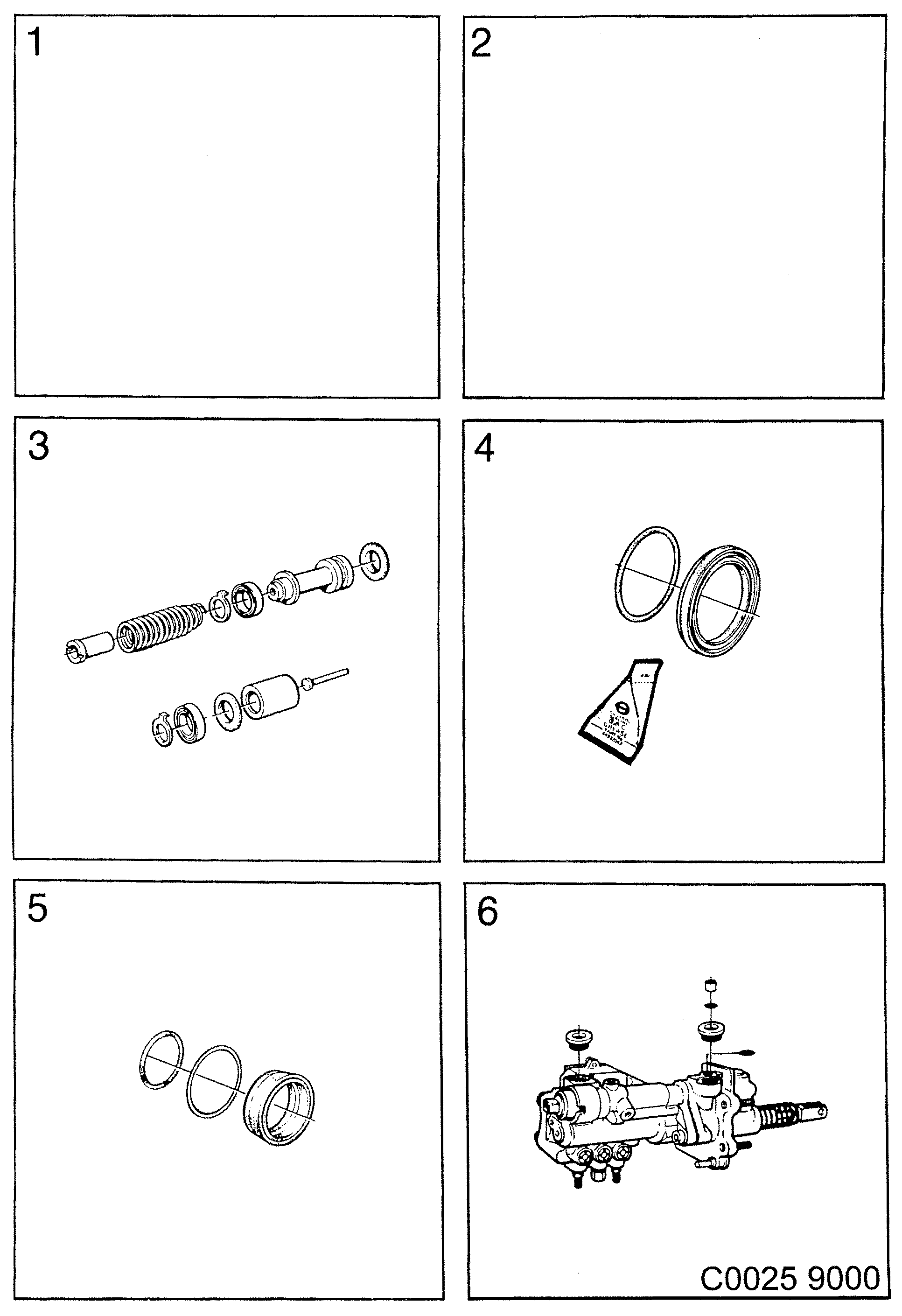

Saab 9000 Brakes diagram

Pos	Article	Part No.
3	Sealing kit	8965329
	Piston	8965782
	Gasket	8986911
	Seal	8986986
	Sealing ring	8987018
	Seal	8986994
	Pin	8965808
4	Gasket kit	8968968
	Boot	8969081
	Seal	8969099
	Grease	8955536
5	Gasket kit	8961849
	Seal	8955288
	Boot	8955296
	Ring	8955239
6	Master cylinder kit	4003182
	Master cylinder	4003174
	Connector	8966376
	Connector	8966384
	Nut	8074106
	Washer	92153033 (replaces 7916497)
	Rubber bushing	4482568 (replaces 8966335)
	O-ring kit	8967390
