Saab 9000 1990-1993 Parking brake system

Group 5 Brakes, section 410

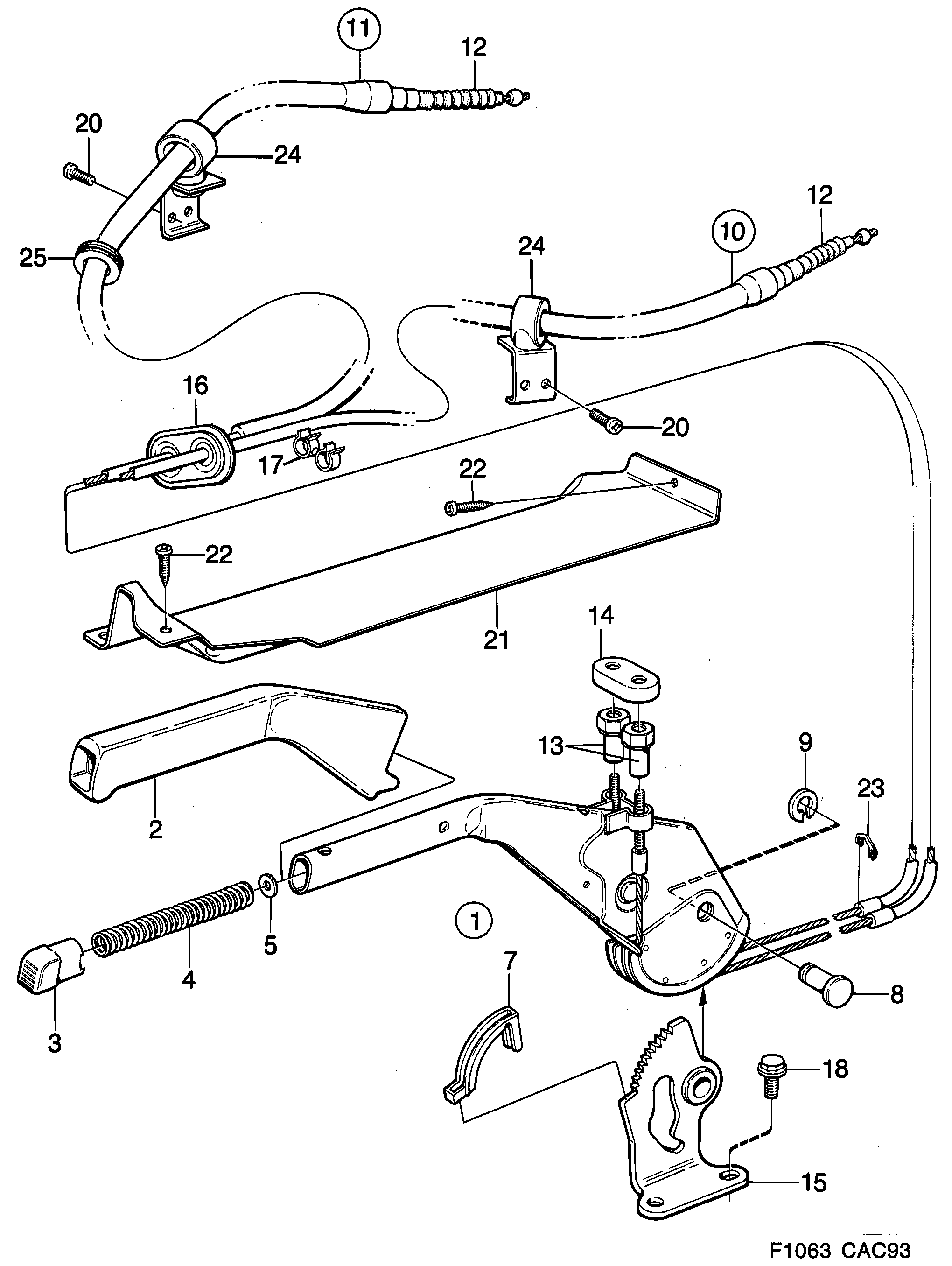

Saab 9000 Parking brake system diagram

Pos	Article	Part No.
1	Parking brake lever	8956179
2	Handle	8962649
3	Push button	8953788
4	Spring	8953739
5	Washer	8029969
7	Slide rail	8961062
8	Bolt	8953762
9	Retaining ring	7963143 (replaces 7915077)
10	Parking brake cable	8967481
11	Parking brake cable	8970733
12	Bellows	8954455
13	Adjusting nut	8953796
14	Turn stop	8953879
15	Segment	8953689
16	Grommet	8954646
17	Clamp	7398464
18	Screw	55562121 (replaces 7967938)
20	Screw	7972805
21	Protection	9764044
23	Clamp	8966608
24	Bracket	8967655
25	Grommet	8970725
