Saab 9000 1985-1989 Brakes

Group 5 Brakes, section 400

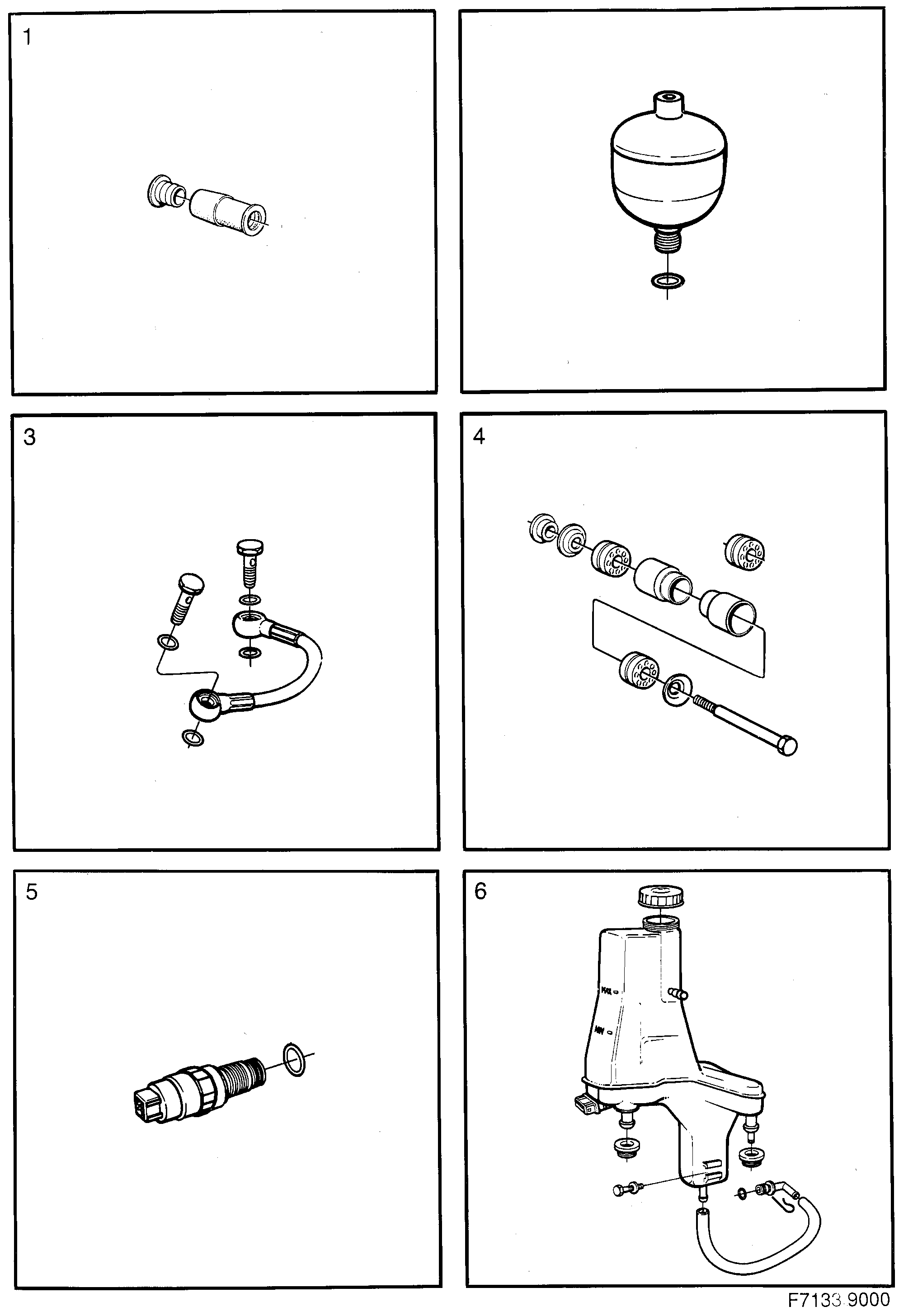

Saab 9000 Brakes diagram

Pos	Article	Part No.
1	Guide	4467064 (replaces 8955445)
	Bushing	8955452
	Sleeve	8955460
	Cover	8955478
2	Accumulator	8967218
	Accumulator	8966277
	O-ring	8967234
	Label	8966707
2	Accumulator	4002267
	Accumulator	4001814
3	Hose kit	8967259
	High pressure hose	8966319
	O-ring	8967408
	Fitting	8966327
4	Suspension kit	8967283
	Suspension	8966236
	Spacer	8966244
	Screw	8966269
	Washer	8966251
4	Suspension kit	4002895
	Suspension	9104811
	Spacer	4003083
	Screw	9104829
	Sleeve	9104944
5	Pressure monitor	8967309
	Pressure monitor	8966160
	O-ring	8967325
6	Reservoir	8967333
	Reservoir	8966137
	Screw	8966368
	Cover	8966152
	Bracket	8966350
	Rubber bushing	4482568 (replaces 8966335)
	Hose kit	8967341
6	Reservoir	4003141
	Bracket	4002051
	Hose kit	4002861
	O-ring kit	8967390
