Saab 9000 1990-1993 Brake operation

Group 5 Brakes, section 380

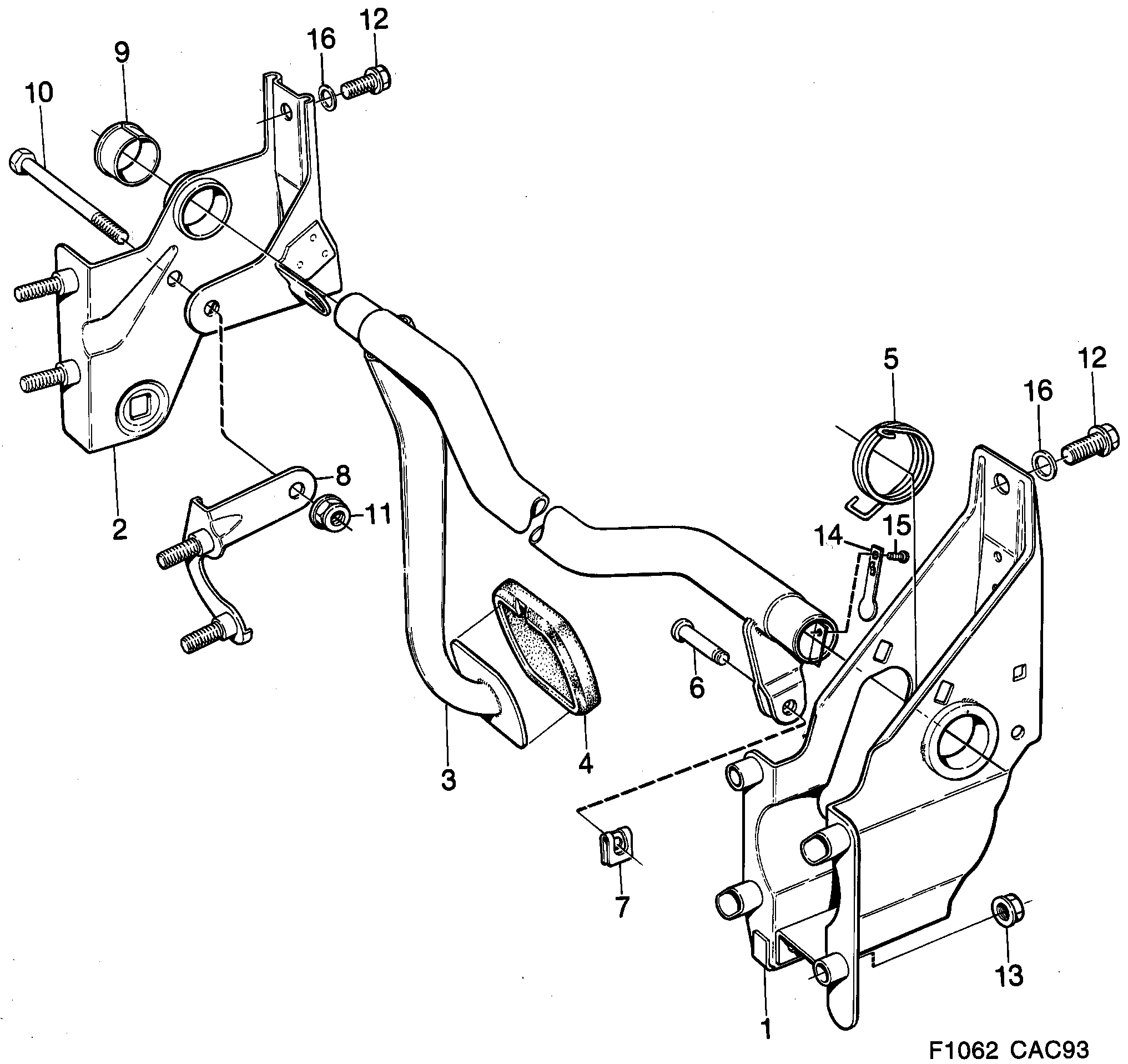

Saab 9000 Brake operation diagram

Pos	Article	Part No.
1	Bracket	8965600
1	Bracket	4105268
2	Bracket	8970444
3	Brake pedal	8965618
3	Brake pedal	8965626
4	Pedal pad	8916272
4	Pedal pad	8956393
5	Return spring	8962300
6	Bolt	8956443
7	Clip	12780365 (replaces 8252553)
8	Bracket	8957482
9	Plastic bushing	8953390
10	Screw	7979248
11	Lock nut	7399801
12	Screw	7970288
13	Nut	92150143 (replaces 7971922)
14	Stop, shoulder	8965501
15	Screw	7922800
16	Sealing washer	8929531
