Saab 9000 1985-1989 Brakes

Group 5 Brakes, section 370

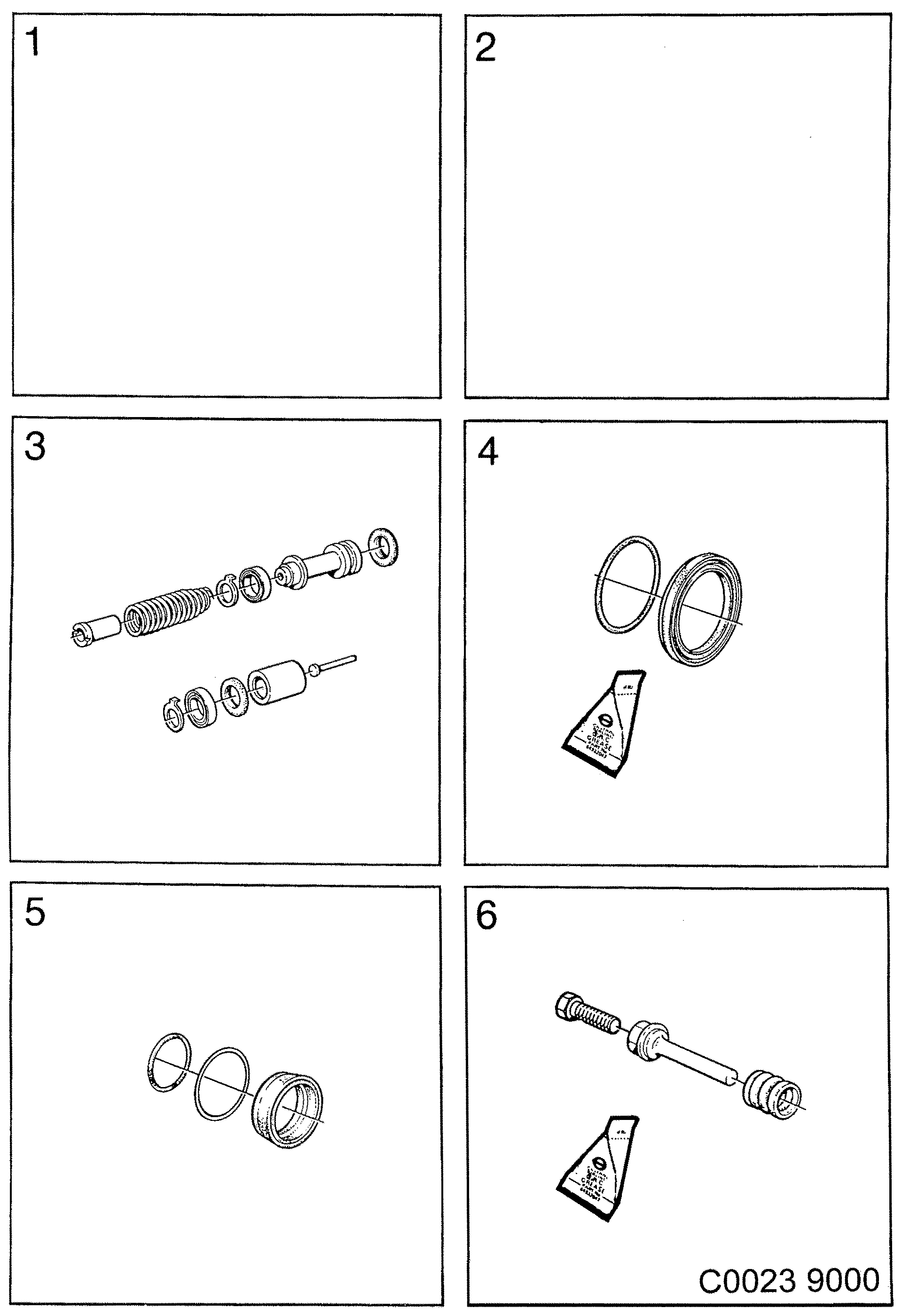

Saab 9000 Brakes diagram

Pos	Article	Part No.
3	Sealing kit	8988149
	Piston	8986945
	Gasket	8986911
	Seal	8986986
	Sealing ring	8987018
	Seal	8986994
	Pin	8965808
3	Sealing kit	8965329
	Piston	8965782
4	Gasket kit	8961799
	Boot	8955056
	Seal	8955064
	Grease	8955155
4	Gasket kit	8968968
	Boot	8969081
	Seal	8969099
	Grease	8955536
5	Gasket kit	8961849
	Seal	8955288
	Boot	8955296
	Ring	8955239
6	Bellows kit	8961807
	Slide pin	8961807 (replaces 8955114)
	Screw	8955122
	Protecting casing	8955130
	Grease	8955148
