Saab 9000 1994-1998 Brake operation

Group 5 Brakes, section 360

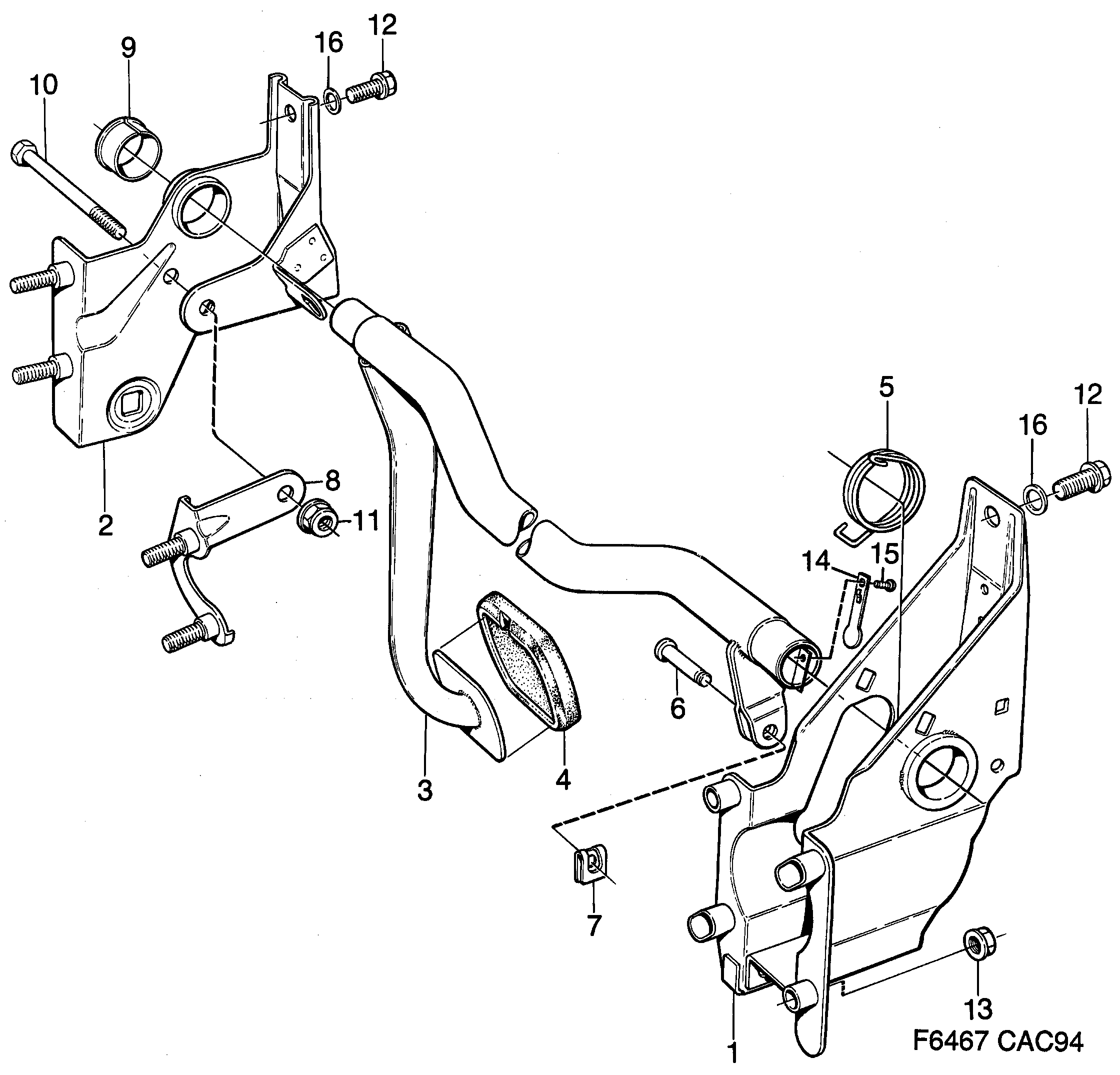

Saab 9000 Brake operation diagram

Pos	Article	Part No.
1	Bracket	8965600
1	Bracket	4105268
2	Bracket	8970444
3	Brake pedal	8965618
3	Brake pedal	8965626
4	Pedal pad	8916272
4	Pedal pad	8956393
5	Return spring	8962300
6	Bolt	8956443
7	Clip	12780365 (replaces 8252553)
8	Bracket	8957482
9	Plastic bushing	8953390
10	Screw	7979248
11	Lock nut	7399801
12	Screw	55566034 (replaces 7978190)
13	Nut	92150143 (replaces 7971922)
14	Stop, shoulder	8965501
15	Screw	7922800
16	Sealing washer	8929531
