Saab 9000 1994-1998 Brake operation

Group 5 Brakes, section 330

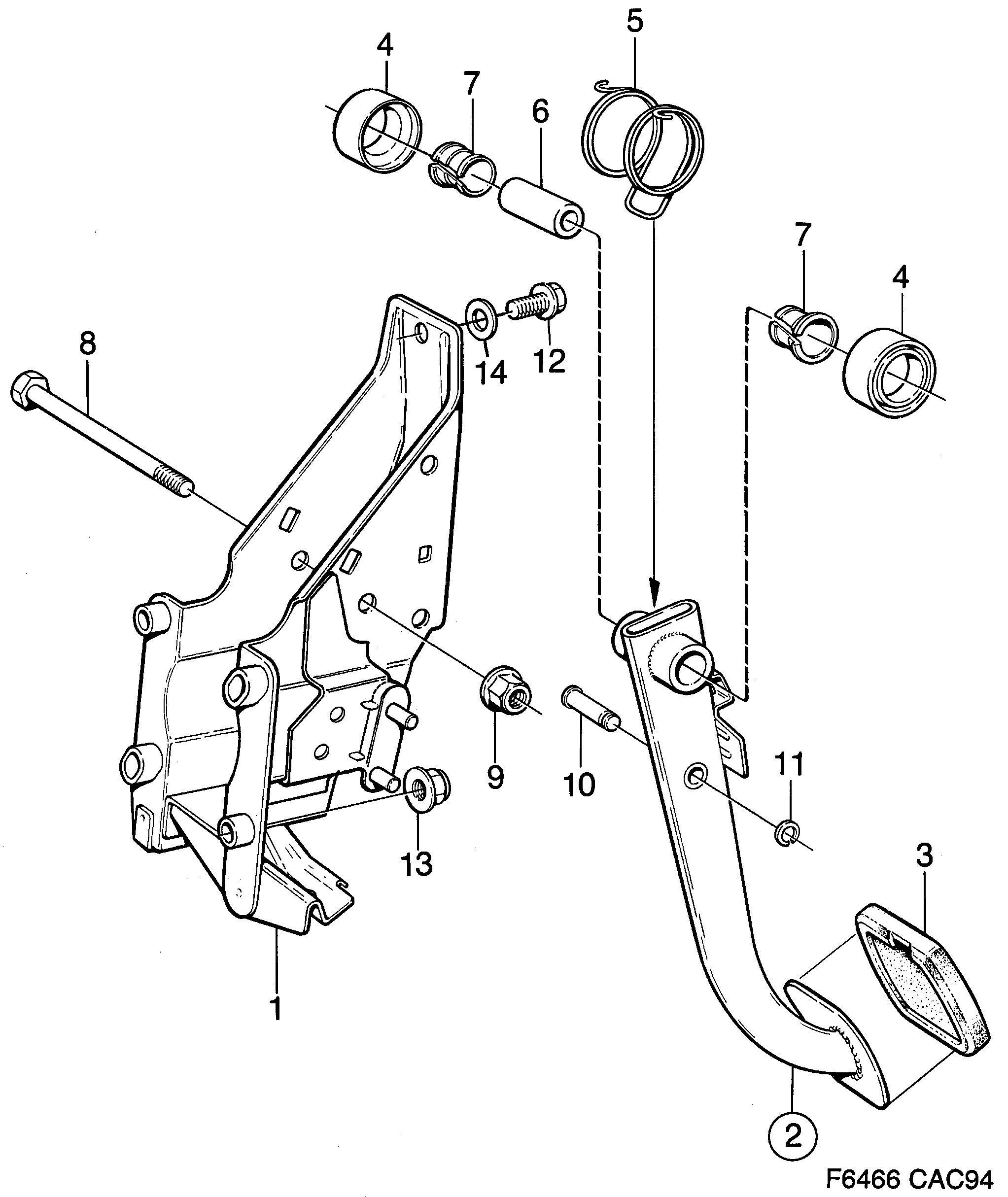

Saab 9000 Brake operation diagram

Pos	Article	Part No.
1	Bracket	8970410
1	Bracket	4000410
2	Brake pedal	4003026
2	Brake pedal	4545307
2	Brake pedal	4545315 (replaces 4003034)
2	Brake pedal	4545315
3	Pedal pad	8916272
3	Pedal pad	8956393
4	Spacer sleeve	8970204
5	Spring	8951527
6	Spacer tube	8950297
7	Bearing bushing	8962128
8	Screw	7979271
9	Lock nut	7399801
10	Bolt	8956443
11	Clip	12780365 (replaces 8252553)
12	Screw	55566034 (replaces 7978190)
13	Nut	92150143 (replaces 7971922)
14	Sealing washer	8929531
