Saab 9000 1993-1993 Brake lines ABS Mark IV

Group 5 Brakes, section 320

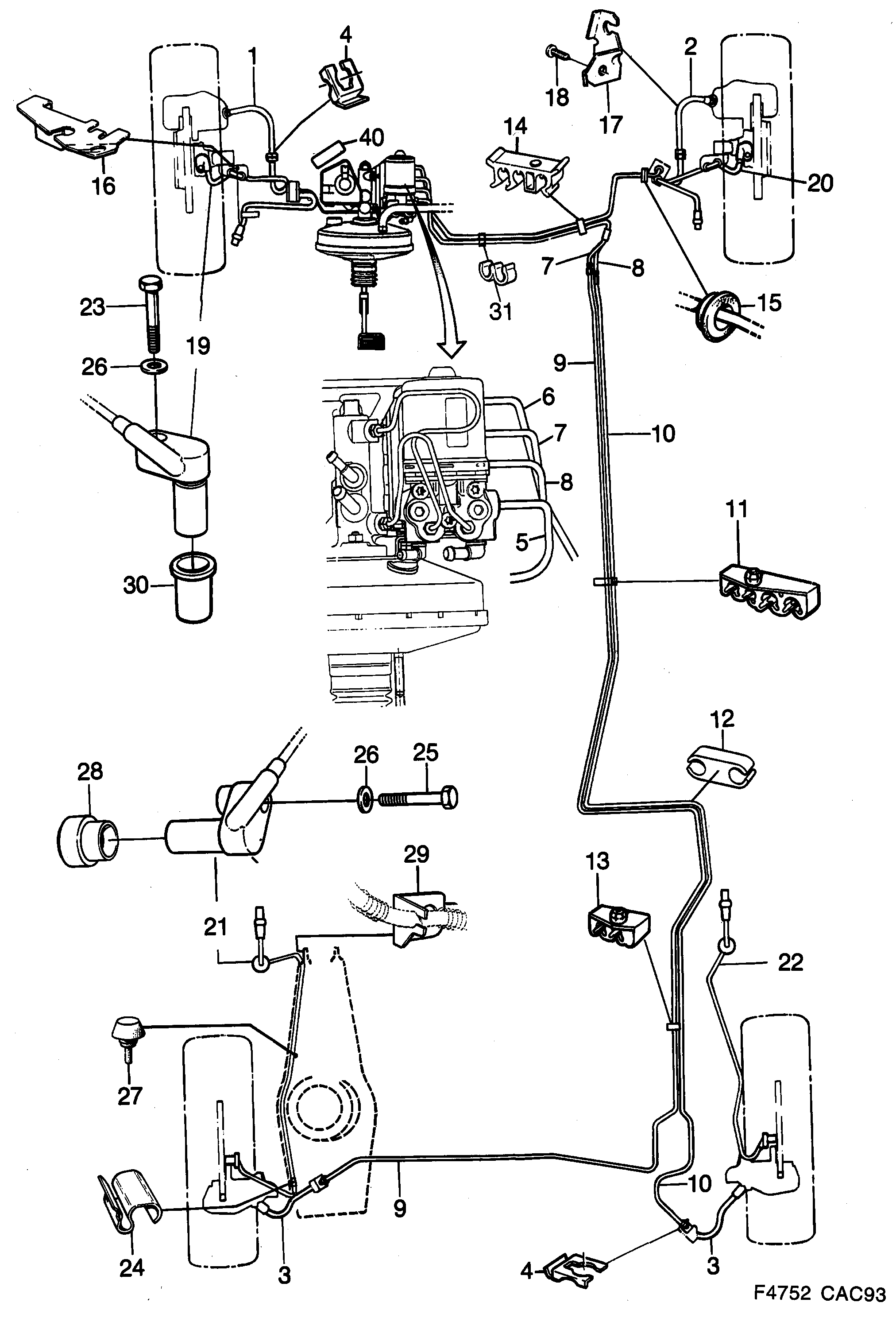

Saab 9000 Brake lines ABS Mark IV diagram

Pos	Article	Part No.
1	Brake hose	4426474 (replaces 4002341)
3	Brake hose	4837076 (replaces 8969206)
4	Bracket	8952699
5	Brake pipe	4197935
6	Brake pipe	4197943
7	Brake pipe	4778668 (replaces 4197968)
8	Brake pipe	4197950
9	Brake pipe	4196333
10	Brake pipe	4196325
11	Tube clamp	8968166
12	Clamp	8958530
13	Tube clamp	8959520
14	Tube clamp	4194221
15	Plug	8459497
16	Bracket	30500130 (replaces 4003042)
16	Bracket	30500131 (replaces 4003059)
17	Bracket	6973861
18	Screw	7971294
19	Sensor	4001459
20	Sensor	4001467
21	Sensor	4001475
22	Sensor	4001483
23	Screw	8021917
24	Clamp	8931461
25	Screw	8021925
26	Washer	9166364
27	Rubber plug	8944795
28	Sleeve	8963019
29	Bracket	4002127
29	Bracket	4002135
30	Sleeve	8965634
31	Tube clamp	12793419 (replaces 9106139)
