Saab 9000 1985-1989 Brake operation

Group 5 Brakes, section 310

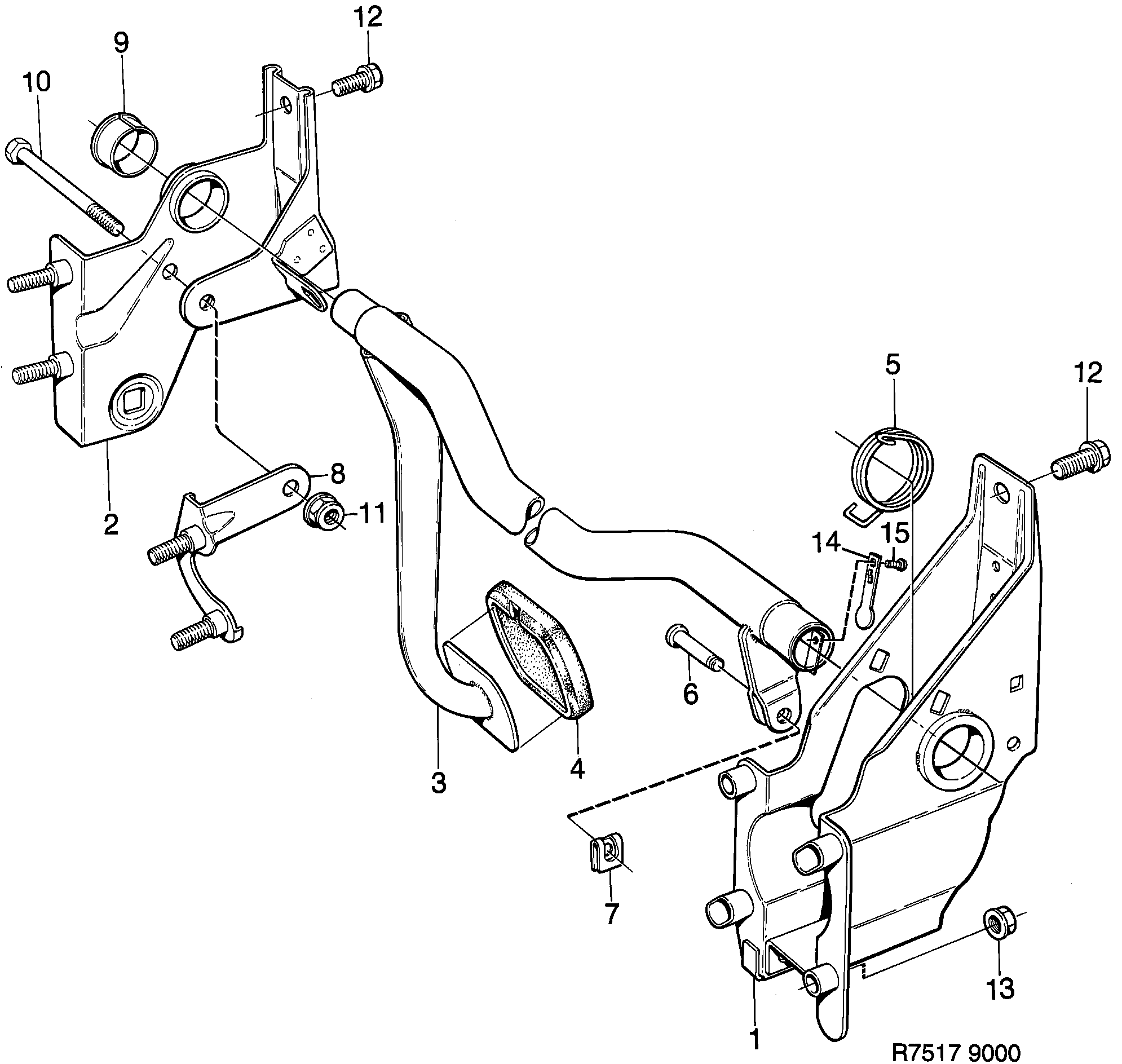

Saab 9000 Brake operation diagram

Pos	Article	Part No.
1	Bracket	8965600
2	Bracket	8970444 (replaces 8965584)
2	Bracket	8970444
3	Brake pedal	8965618
3	Brake pedal	8965626
4	Pedal pad	8916272
4	Pedal pad	8956393
5	Return spring	8962300
6	Bolt	8956443
7	Clip	12780365 (replaces 8252553)
8	Bracket	8957482
9	Plastic bushing	8953390
10	Screw	7979248
11	Lock nut	7969306
12	Screw	55562121 (replaces 7967938)
12	Screw	7970288
13	Nut	92150143 (replaces 7971922)
14	Stop, shoulder	8965501
15	Screw	7922800
