Saab 9000 1985-1989 Brake operation

Group 5 Brakes, section 280

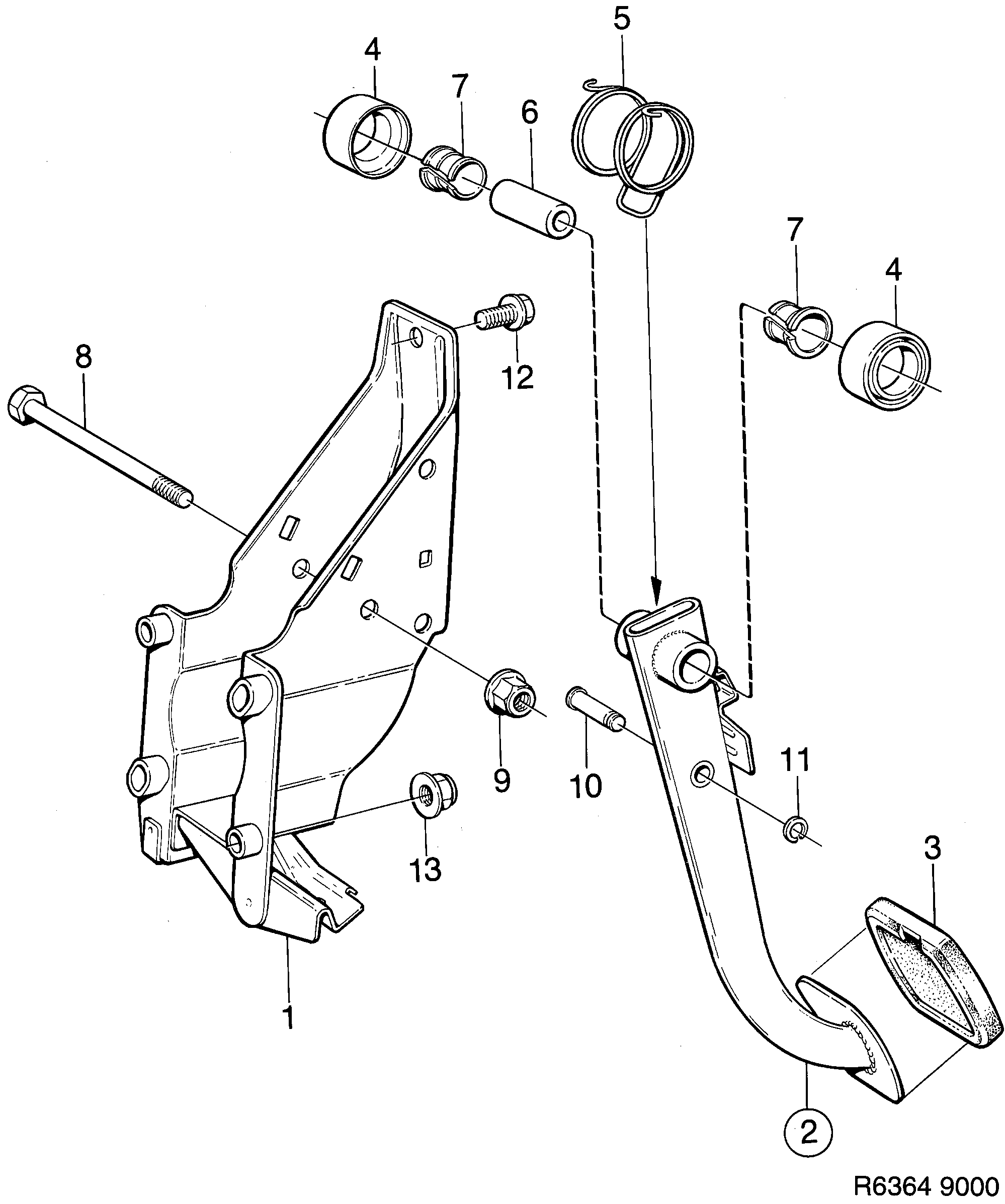

Saab 9000 Brake operation diagram

Pos	Article	Part No.
1	Bracket	8957672
2	Brake pedal	8951840
2	Brake pedal	8952244
3	Pedal pad	8916272
3	Pedal pad	8956393
4	Spacer sleeve	8950024
4	Spacer sleeve	8970204
5	Spring	8951527
6	Spacer tube	8950297
7	Bearing bushing	8962128
8	Screw	7979248
9	Lock nut	7969306
10	Bolt	8956443
11	Clip	12780365 (replaces 8252553)
12	Screw	55562121 (replaces 7967938)
12	Screw	7970288
13	Nut	92150143 (replaces 7971922)
