Saab 9000 1994-1995 Brake lines ABS Mark II

Group 5 Brakes, section 270

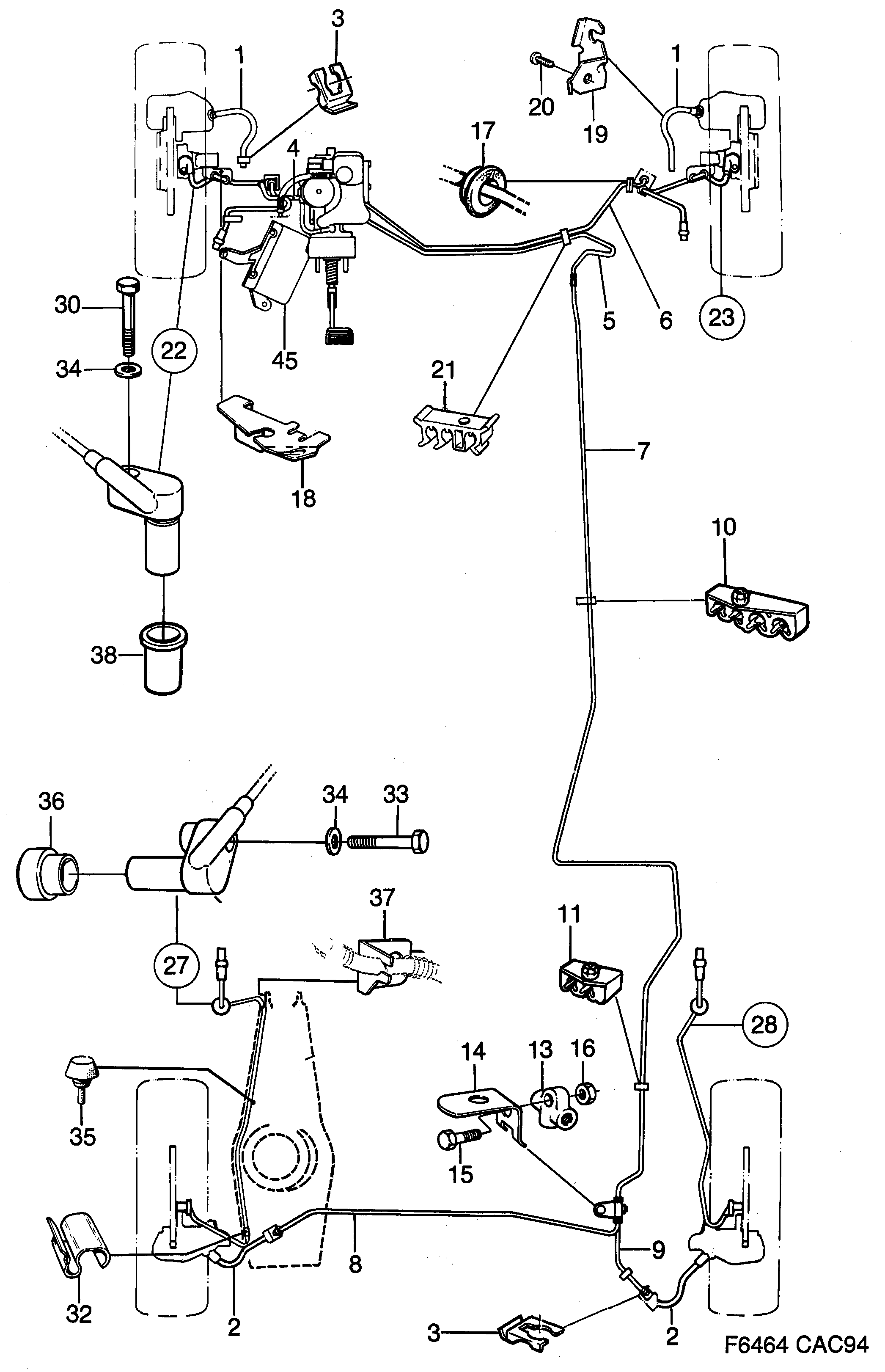

Saab 9000 Brake lines ABS Mark II diagram

Pos	Article	Part No.
1	Brake hose	4426474 (replaces 4002341)
1	Brake hose	4426474 (replaces 4426490)
2	Brake hose	4837076 (replaces 8969206)
2	Brake hose	4837076 (replaces 4426508)
3	Bracket	8952699
4	Brake pipe	4001970
5	Brake pipe	4195673
6	Brake pipe	4195681
7	Brake pipe	4196341
8	Brake pipe	4105946
9	Brake pipe	4105920
10	Tube clamp	8968166 (replaces 8958548)
11	Tube clamp	8959520
13	T-piece	8964686
14	Bracket	4105961
15	Screw	9166331
16	Nut	8151235
17	Plug	8459497
18	Bracket	30500130 (replaces 4003042)
18	Bracket	30500131 (replaces 4003059)
19	Bracket	6973861
20	Screw	7971294
21	Tube clamp	4194221
22	Sensor	4001459
23	Sensor	4001467
27	Sensor	4001475
28	Sensor	4001483
30	Screw	8021917
32	Clamp	8931461
33	Screw	8021925
34	Washer	9166364
35	Rubber plug	8944795
36	Sleeve	8963019
37	Bracket	4002127
37	Bracket	4002135
38	Sleeve	8965634
