Saab 9000 1990-1992 Brake lines

Group 5 Brakes, section 260

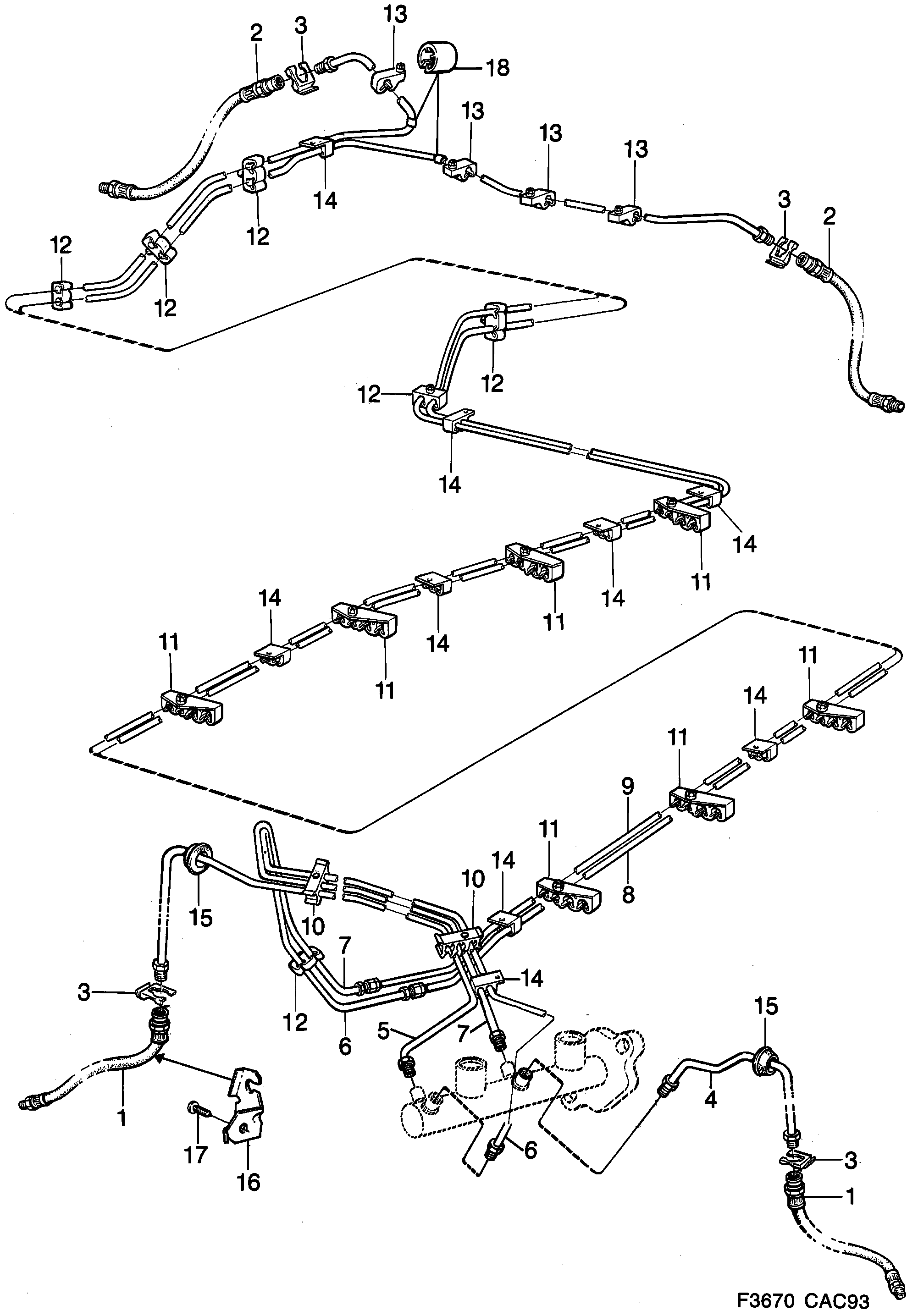

Saab 9000 Brake lines diagram

Pos	Article	Part No.
1	Brake hose	4426474 (replaces 4002341)
2	Brake hose	4837076 (replaces 8969206)
3	Bracket	8952699
4	Brake pipe	8964843
5	Brake pipe	4001384
5	Brake pipe	4195665
6	Brake pipe	8964769
6	Brake pipe	4195657
7	Brake pipe	8964728
7	Brake pipe	4195640
8	Brake pipe	4103875
8	Brake pipe	4196333
9	Brake pipe	8959306
9	Brake pipe	4196325
10	Tube clamp	8961021
10	Tube clamp	4194221
11	Tube clamp	8968166
12	Tube clamp	8959520
13	Tube clamp	8959538
14	Clamp	8958530
15	Plug	8459497
16	Bracket	6973861
17	Screw	7971294
18	Tube clamp	8965097
