Saab 9000 1985-1989 Brake lines ABS

Group 5 Brakes, section 250

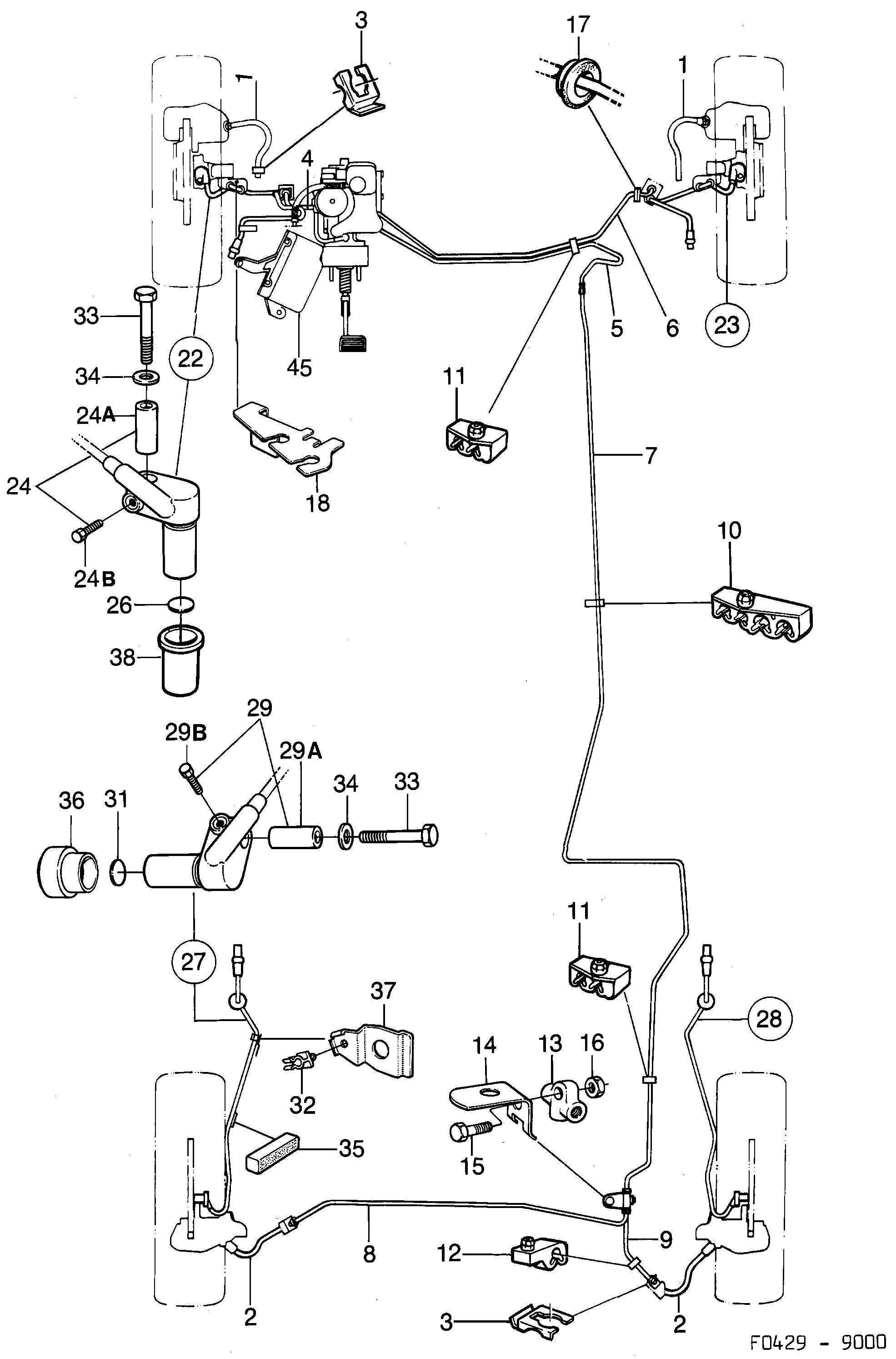

Saab 9000 Brake lines ABS diagram

Pos	Article	Part No.
1	Brake hose	4426474 (replaces 8973034)
2	Brake hose	4837076 (replaces 8969206)
3	Bracket	8952699
4	Brake pipe	8964413
4	Brake pipe	4001970
5	Brake pipe	8964496
5	Brake pipe	4001996
6	Brake pipe	8964454
6	Brake pipe	4002010
7	Brake pipe	8964553
8	Brake pipe	8964595
8	Brake pipe	4000204
9	Brake pipe	8964637
10	Tube clamp	8968166 (replaces 8958548)
11	Tube clamp	8959520
12	Tube clamp	8959538
13	T-piece	8964686
14	Bracket	8964678
15	Screw	55562873 (replaces 8082968)
16	Nut	8074106
16	Nut	8151235
17	Plug	8459497
18	Bracket	8963621
18	Bracket	8963647
22	Sensor	8963092
23	Sensor	8963613
24	Screw kit	32000324 (replaces 9105115)
24A	Sleeve	8967374
24B	Screw	8967382
26	Spacer	8967507
27	Sensor	8965857
28	Sensor	8965840
32	Clip	7399140
33	Screw	8021925
34	Washer	8029951
35	Set ring	8967226
36	Sleeve	8963019
37	Bracket	8966988
38	Sleeve	8965634
