Saab 9000 1994-1998 Master cylinder Mark IV

Group 5 Brakes, section 240

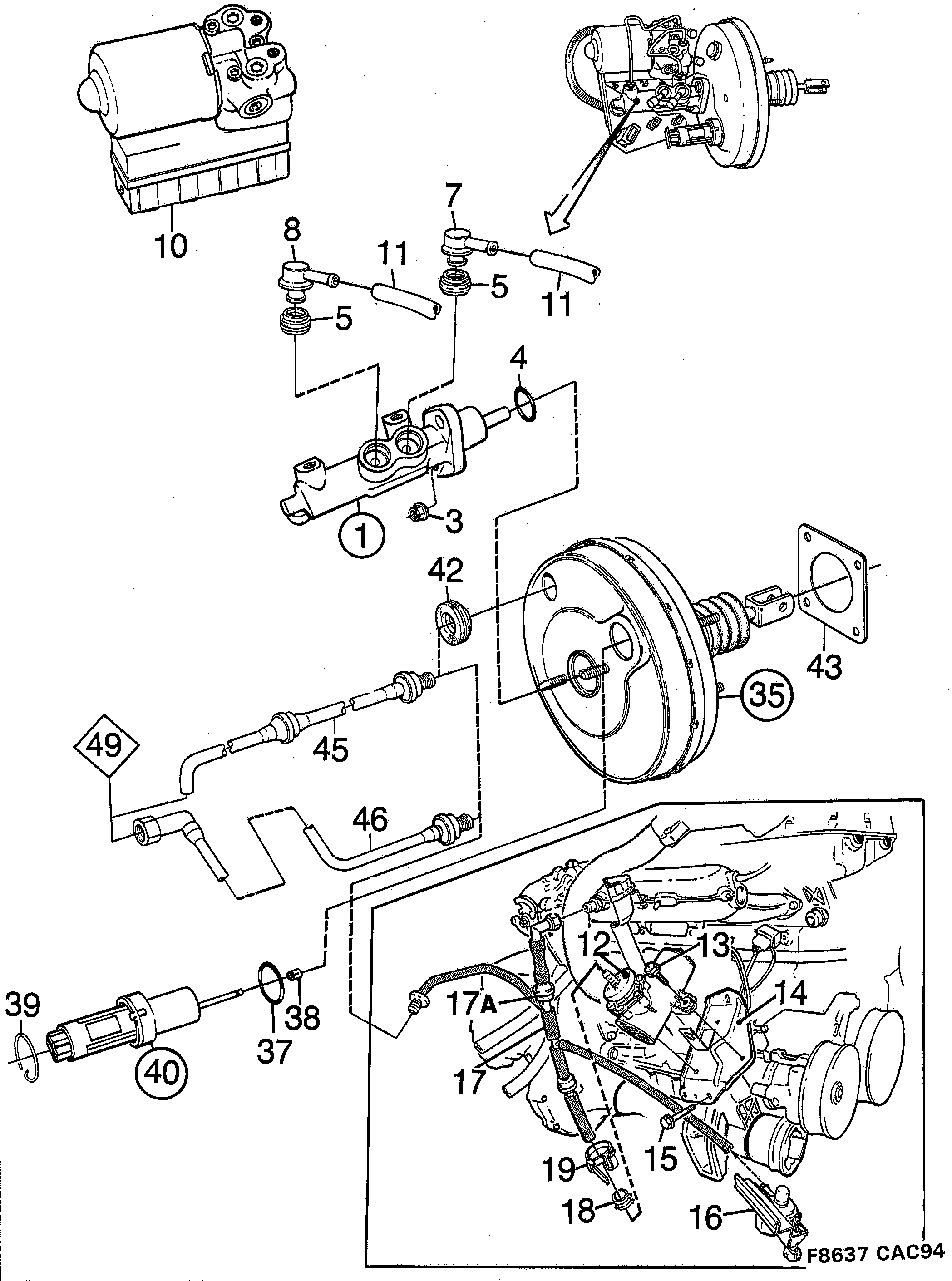

Saab 9000 Master cylinder Mark IV diagram

Pos	Article	Part No.
1	Master cylinder	4198438
3	Nut	4198396
4	Sealing ring	4198503
5	Pipe end	4198297
7	Connection nipple	4198305
8	Connection nipple	4198313
12	Vacuum pump	4646220
13	Screw	7978133
14	Bracket	4646469
17	Vacuum pipe	4646253
17	Vacuum pipe	4907598
17A	Check valve	4647624
18	Hose clamp	7974009
19	Tie strap	30507607 (replaces 7593221)
35	Brake servo	4645487 (replaces 4198412)
35	Brake servo	4645487
37	O-ring	4198339
38	Spacer	4198354
38	Spacer	4198362
38	Spacer	4198370
38	Spacer	4198388
39	Clamping ring	4198347
40	Pedal sensor	4198420
42	Pipe end	5233739 (replaces 4198149)
43	Seal	8958357
45	Vacuum hose	4425773
46	Vacuum pipe	4425468
46	Vacuum pipe	4904355
46	Vacuum pipe	4424958
