Saab 9000 1993-1993 Hydraulic unit ABS Mark IV

Group 5 Brakes, section 230

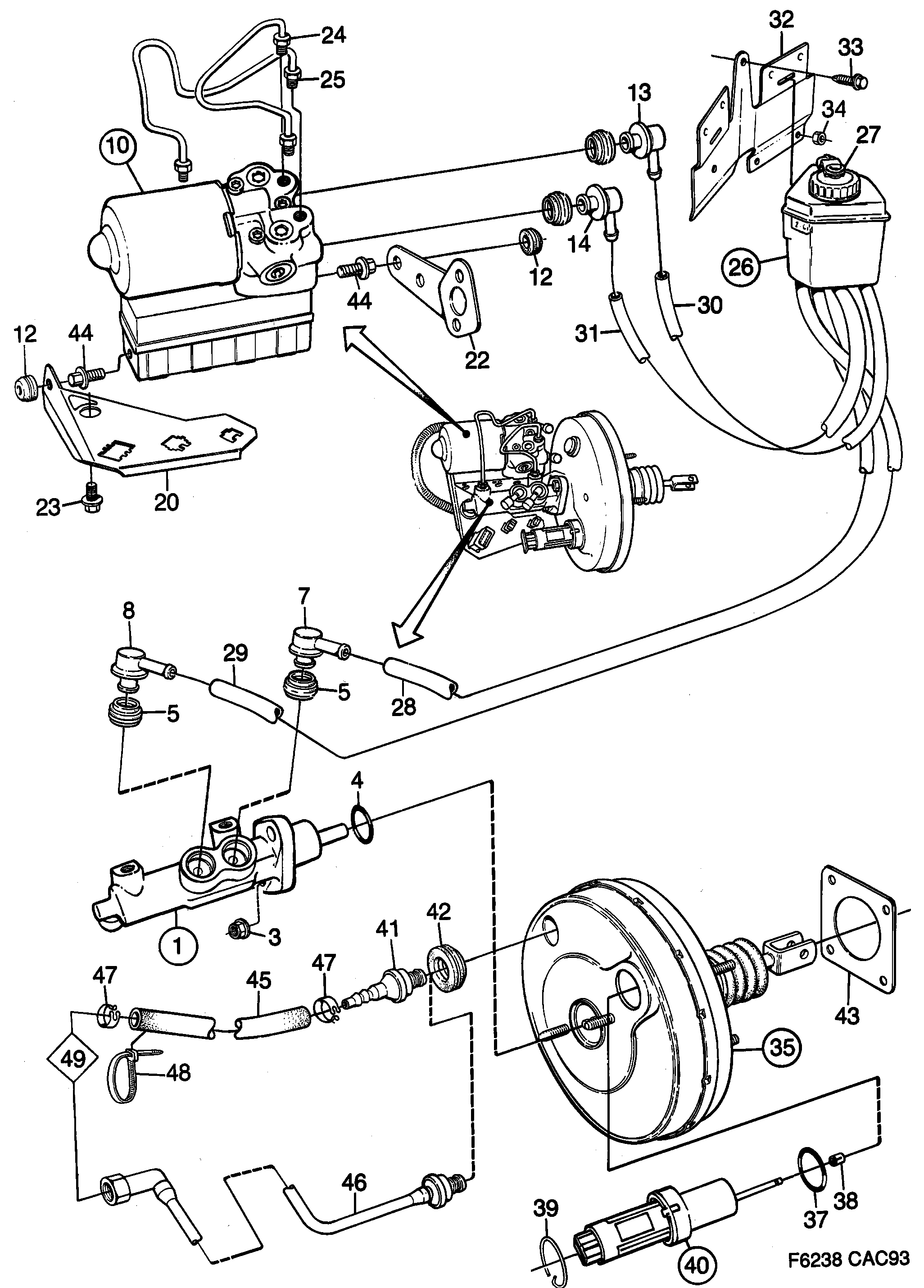

Saab 9000 Hydraulic unit ABS Mark IV diagram

Pos	Article	Part No.
1	Master cylinder	4198438
3	Nut	4198396
4	Sealing ring	4198503
5	Pipe end	4198297
7	Connection nipple	4198305
8	Connection nipple	4198313
10	Hydraulic unit	4198446
12	Rubber bushing	4198107
13	Nipple	4198222
14	Nipple	4198230
20	Bracket	4198065
22	Bracket	4198073
23	Screw	4198511
24	Brake pipe	4198081
25	Brake pipe	4198099
26	Reservoir	4425724
27	Cover	4425708
28	Hose	4198271
29	Hose	4198289
30	Hose	4198123
31	Hose	4198131
32	Bracket	4197919
33	Screw	92151885 (replaces 7978638)
34	Nut	11900451 (replaces 7977929)
35	Brake servo	4645487 (replaces 4198412)
37	O-ring	4198339
38	Spacer	4198354
38	Spacer	4198362
38	Spacer	4198370
38	Spacer	4198388
39	Clamping ring	4198347
40	Pedal sensor	4198420
41	Check valve	8986705
42	Pipe end	5233739 (replaces 4198149)
43	Seal	8958357
44	Screw	4198529
45	Vacuum hose	8966954
46	Vacuum pipe	4425468
47	Hose clamp	8943177
48	Clamp	7398373
48	Tie strap	11900513 (replaces 7971880)
	Attachment kit	4198461
	Hose kit	4198479
	Brake pipe	4198487
