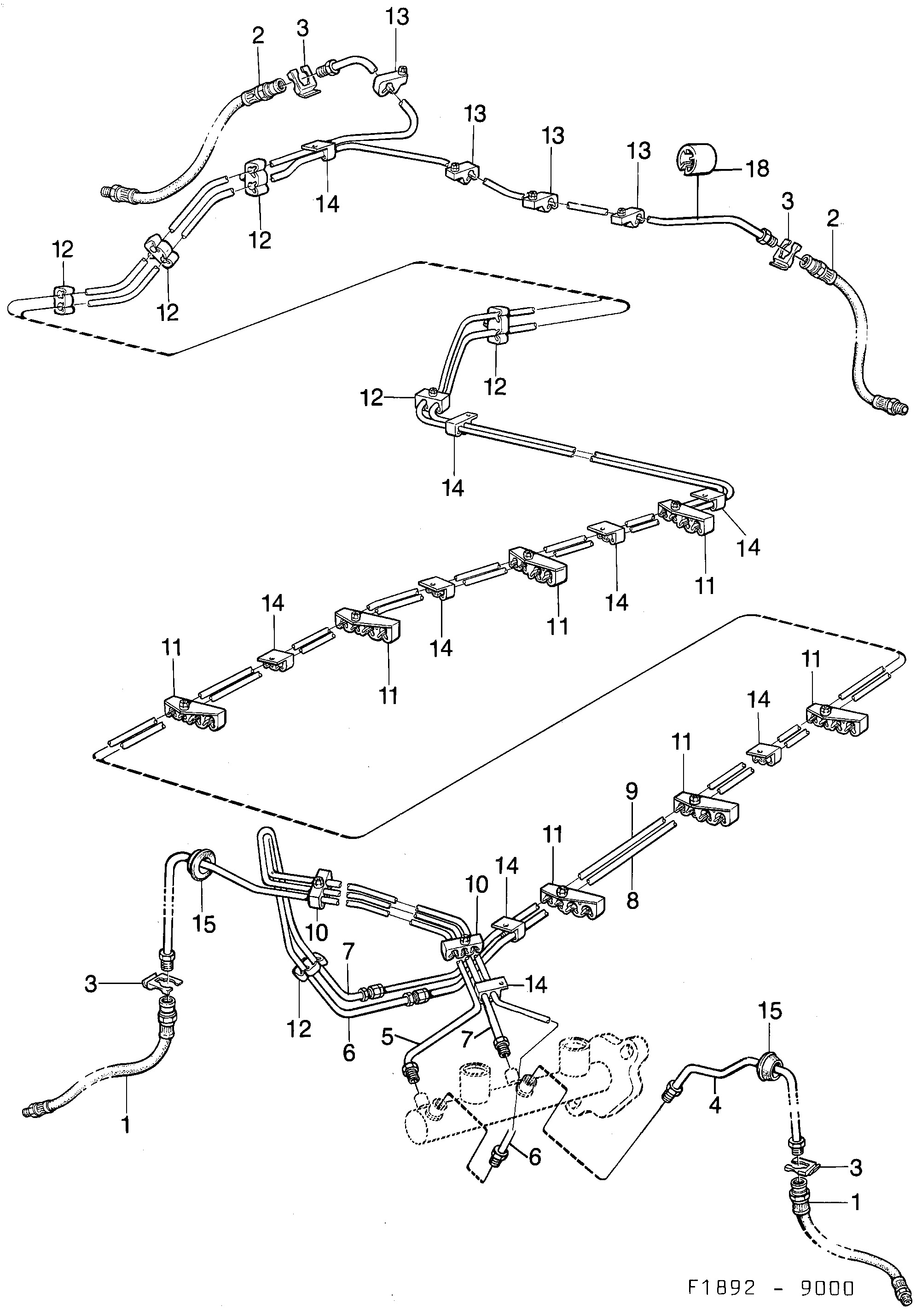

Group 5 Brakes, section 220
| Pos | Article | Part No. |
|---|---|---|
| 1 | Brake hose | 4426474 (replaces 8973034) |
| 2 | Brake hose | 4837076 (replaces 8969206) |
| 3 | Bracket | 8952699 |
| 4 | Brake pipe | 8959223 |
| 4 | Brake pipe | 8964843 |
| 5 | Brake pipe | 8959488 |
| 5 | Brake pipe | 8964801 |
| 6 | Brake pipe | 8959447 |
| 6 | Brake pipe | 8964769 |
| 7 | Brake pipe | 8959264 |
| 7 | Brake pipe | 8964728 |
| 8 | Brake pipe | 8959348 |
| 8 | Brake pipe | 4000188 |
| 9 | Brake pipe | 8959306 |
| 10 | Tube clamp | 8961021 |
| 11 | Tube clamp | 8968166 (replaces 8958548) |
| 11 | Tube clamp | 8968166 |
| 12 | Tube clamp | 8959520 |
| 13 | Tube clamp | 8959538 |
| 14 | Clamp | 8958530 |
| 15 | Plug | 8459497 |
| 18 | Tube clamp | 8965097 |
