Saab 9000 1994-1998 Hydraulic unit ABS Mark IV

Group 5 Brakes, section 210

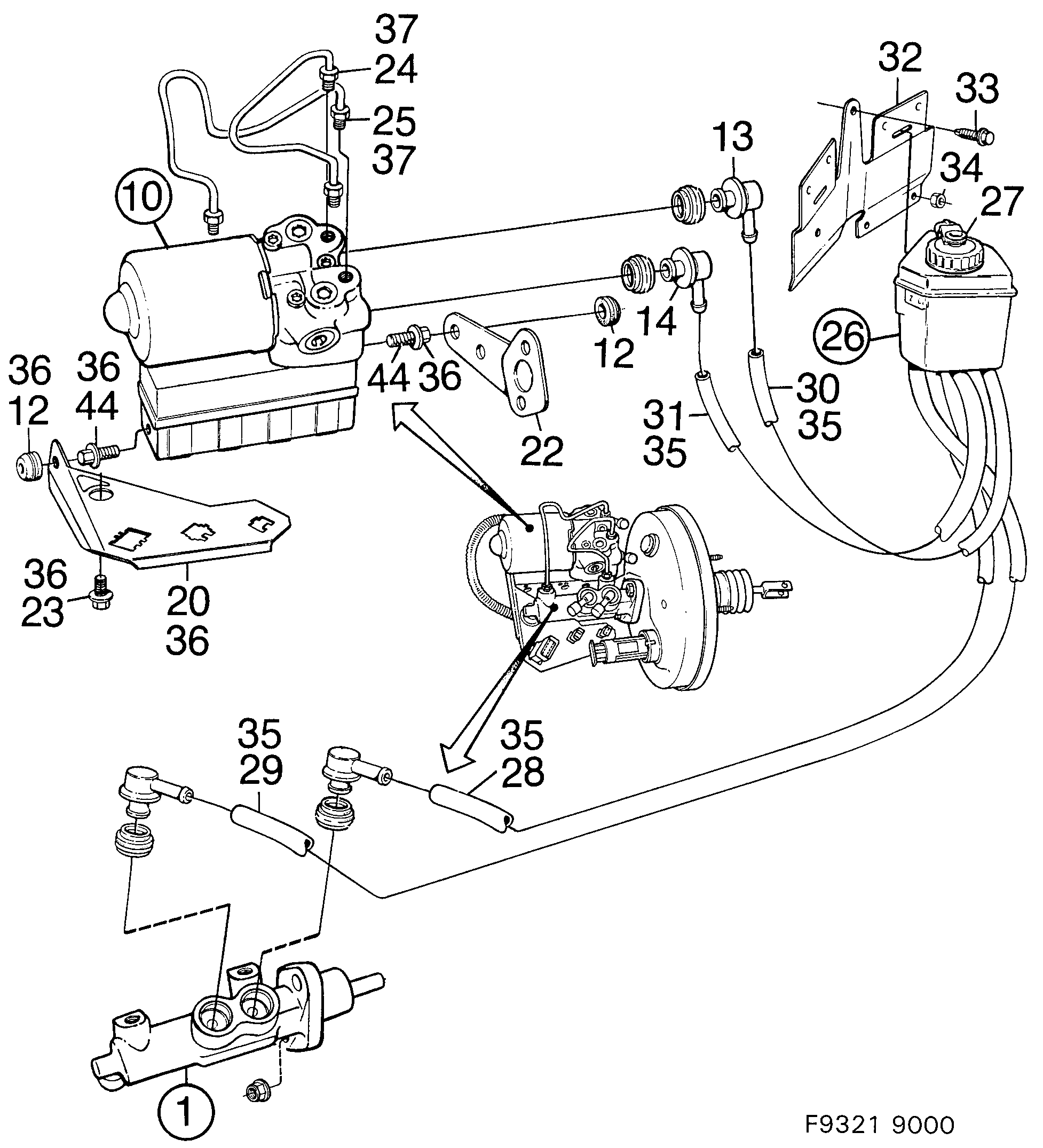

Saab 9000 Hydraulic unit ABS Mark IV diagram

Pos	Article	Part No.
10	Hydraulic unit	4198446
12	Rubber bushing	4198107
13	Nipple	4198222
14	Nipple	4198230
20	Bracket	4198065
22	Bracket	4198073
23	Screw	4198511
24	Brake pipe	4198081
25	Brake pipe	4198099
26	Reservoir	4425724
27	Cover	4425708
28	Hose	4198271
29	Hose	4198289
30	Hose	4198123
31	Hose	4198131
32	Bracket	4197919
33	Screw	92151885 (replaces 7978638)
34	Nut	11900451 (replaces 7977929)
35	Hose kit	4198479
36	Attachment kit	4198461
44	Screw	4198529
