Saab 9000 1990-1993 Hydraulic unit ABS Mark II

Group 5 Brakes, section 200

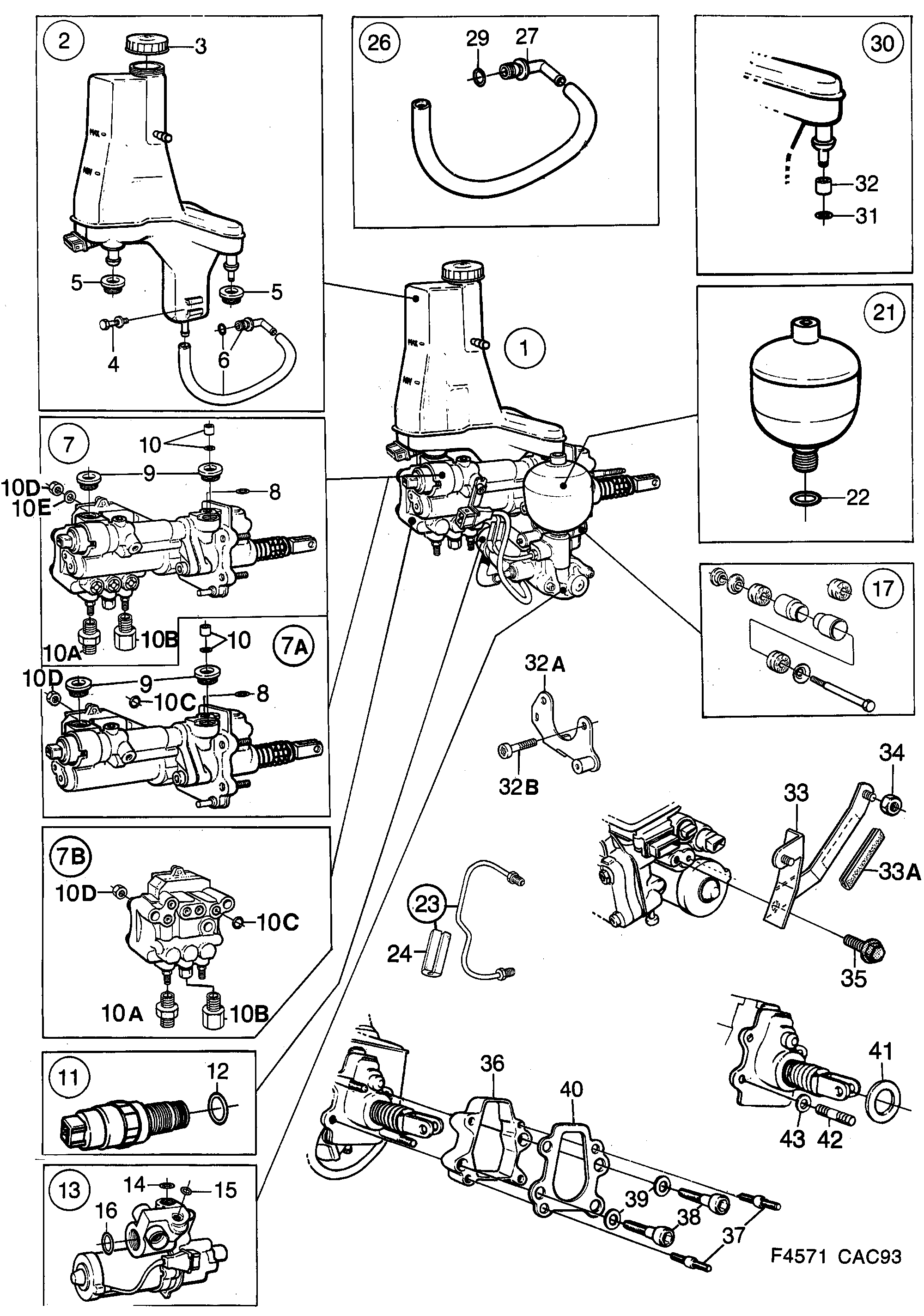

Saab 9000 Hydraulic unit ABS Mark II diagram

Pos	Article	Part No.
1	Hydraulic unit	4000113
1	Hydraulic unit	4104261
1	Hydraulic unit	4003406
1	Hydraulic unit	4425732
2	Reservoir	4003141
2	Reservoir	4190617
3	Cover	8966152
3	Cover	4107819
3	Cover	4425690
4	Screw	8966368
5	Rubber bushing	4482568 (replaces 8966335)
6	Hose kit	4002861
7	Master cylinder kit	4003182
7A	Master cylinder kit	4195897
7A	Master cylinder kit	4195889
8	O-ring	8967267
10	O-ring kit	8967390
10C	O-ring	4195855
10D	Nut	8074106
7B	Valve body	4195863
7B	Valve body	4195871
10A	Connector	8966376
10B	Connector	8966384
10E	Washer	92153033 (replaces 7916497)
11	Pressure monitor	8967309
12	O-ring	8967325
13	Pump kit	4003158
14	O-ring	8967234
17	Suspension kit	4002895
21	Accumulator	4002267
23	Delivery pipe	8993644
23	Delivery pipe	4195772
24	Absorber	4002093
27	Nipple	9104738
29	O-ring	4003117
31	O-ring	8966681
32	Sleeve	8966939
32A	Holder	4002069
32A	Holder	4190773
32B	Screw	8966491
33	Brace	8967028
33	Brace	4004024
33A	Protecting moulding	8564973
34	Nut	11900428 (replaces 7971658)
35	Screw	7969223
36	Adapter	8966012
37	Stud	8966038
38	Screw	8098311
39	Washer	8029993
40	Seal	9104456
41	Seal	4103420
42	Stud	9104795
43	Sealing washer	8929531
