Saab 9000 1985-1989 Hydraulic unit ABS

Group 5 Brakes, section 190

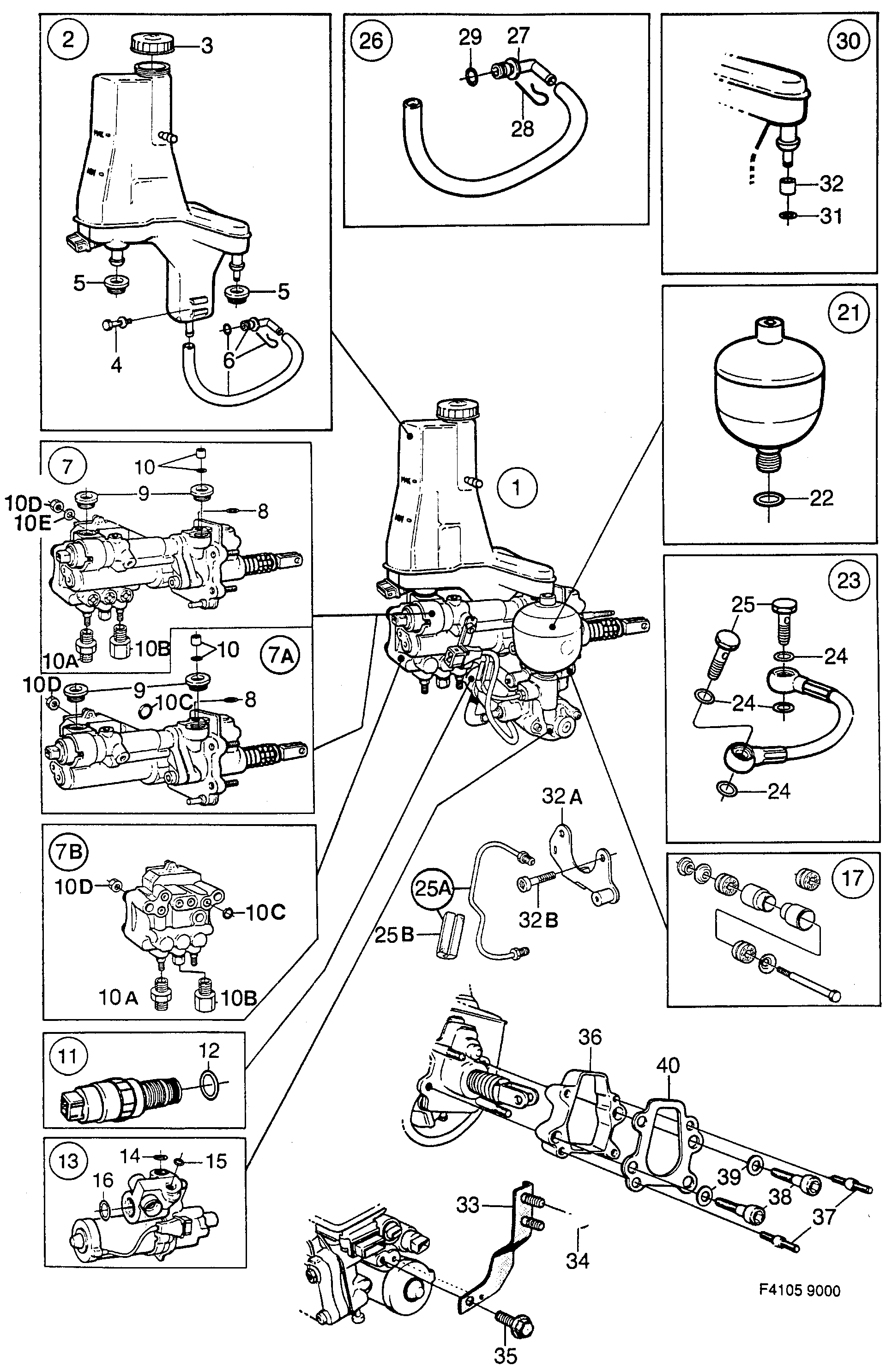

Saab 9000 Hydraulic unit ABS diagram

Pos	Article	Part No.
1	Hydraulic unit	8964900
1	Hydraulic unit	4000113
2	Reservoir	8967333
2	Reservoir	4003141
3	Cover	8966152
4	Screw	8966368
5	Rubber bushing	4482568 (replaces 8966335)
6	Hose kit	8967341
6	Hose kit	4002861
7	Master cylinder kit	8967457
7	Master cylinder kit	4003182
7A	Master cylinder kit	4195905
7A	Master cylinder kit	4195897
8	O-ring	8967408
10	O-ring kit	8967390
10C	O-ring	4195855
10D	Nut	8074106
7B	Valve body	4195863
10A	Connector	8966376
10B	Connector	8966384
10E	Washer	92153033 (replaces 7916497)
11	Pressure monitor	8967309
12	O-ring	8967325
13	Pump kit	8967424
13	Pump kit	4003158
14	O-ring	8967234
17	Suspension kit	8967283
17	Suspension kit	4002895
21	Accumulator	8967218
21	Accumulator	4002267
23	Hose kit	8967259
25	Fitting	8966327
25A	Delivery pipe	8993644
25B	Absorber	4002093
27	Nipple	8966285
27	Nipple	9104738
28	Needle	8966293
29	O-ring	4003117
31	O-ring	8966681
32	Sleeve	8966939
32A	Holder	4002069
32B	Screw	8966491
33	Brace	8967028
34	Nut	11900428 (replaces 7971658)
35	Screw	7969223
36	Adapter	8966012
37	Stud	8966038
38	Screw	8098311
39	Washer	8029993
40	Seal	9104456
