Saab 9000 1994-1995 Hydraulic unit ABS Mark II

Group 5 Brakes, section 180

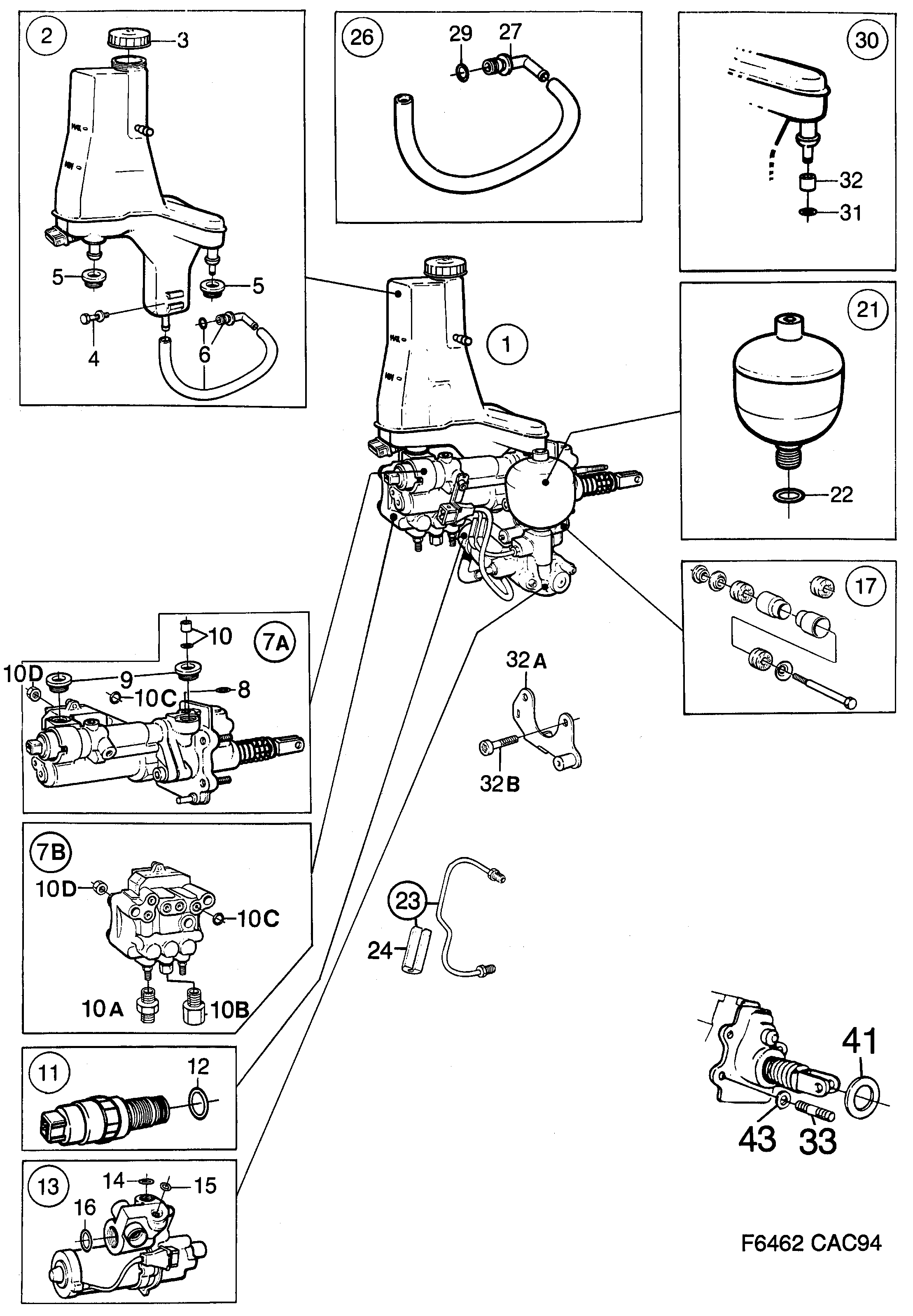

Saab 9000 Hydraulic unit ABS Mark II diagram

Pos	Article	Part No.
1	Hydraulic unit	4425732
2	Reservoir	4190617
3	Cover	4425690
4	Screw	8966368
5	Rubber bushing	4482568 (replaces 8966335)
6	Hose kit	4002861
7A	Master cylinder kit	4195889
8	O-ring	8967267
10	O-ring kit	8967390
10C	O-ring	4195855
10D	Nut	8074106
7B	Valve body	4195871
10A	Connector	8966376
10B	Connector	8966384
10E	Washer	92153033 (replaces 7916497)
11	Pressure monitor	8967309
11	Pressure monitor	8994071
12	O-ring	8967325
13	Pump kit	4003158
14	O-ring	8967234
17	Suspension kit	4002895
21	Accumulator	4002267
23	Delivery pipe	8993644
23	Delivery pipe	4195772
24	Absorber	4002093
27	Nipple	9104738
29	O-ring	4003117
31	O-ring	8966681
32	Sleeve	8966939
32A	Holder	4190773
32B	Screw	8966491
33	Stud	9104795
41	Seal	4103420
43	Sealing washer	8929531
