Saab 9000 1990-1993 Rear wheel brake

Group 5 Brakes, section 140

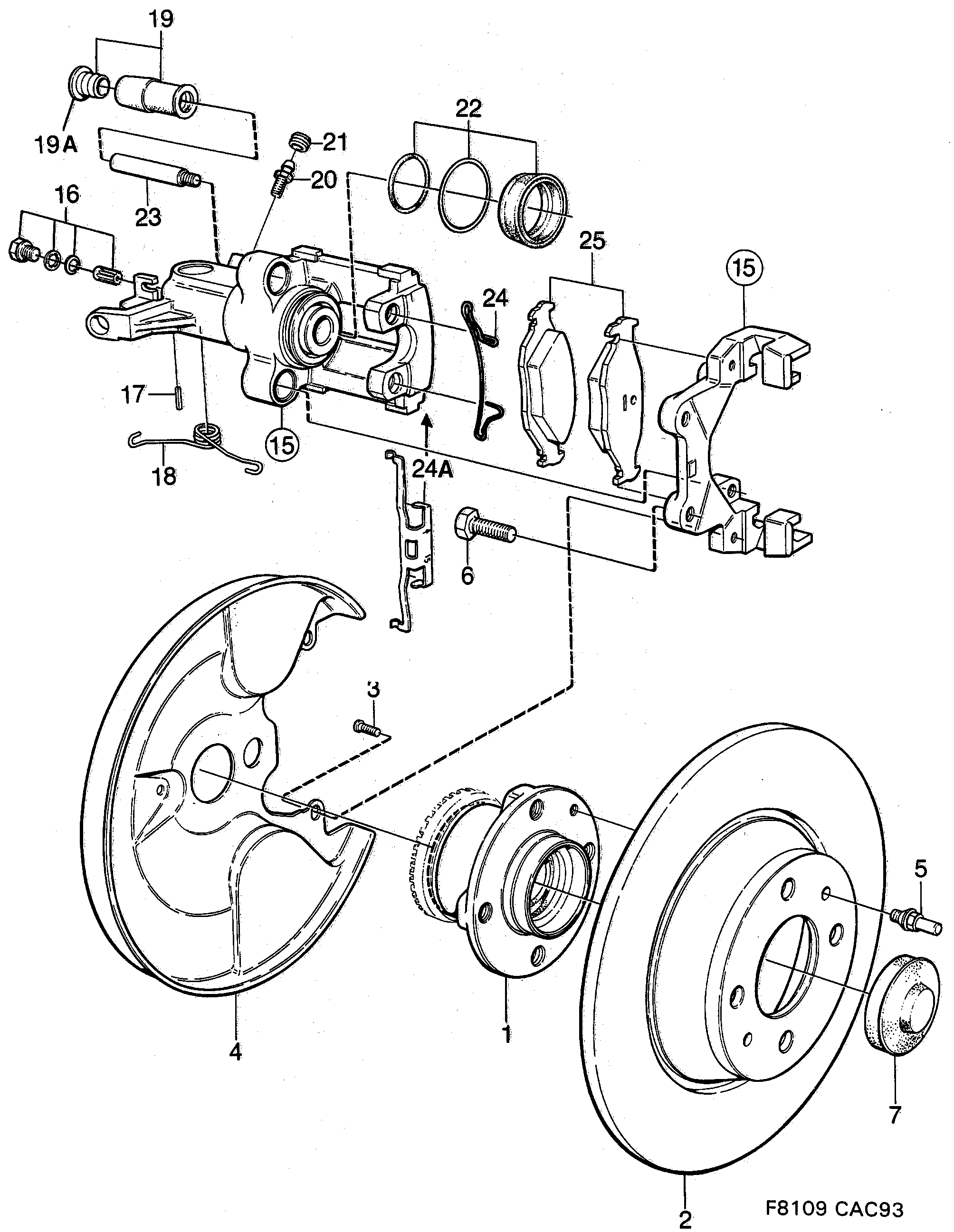

Saab 9000 Rear wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	8971095
1	Wheel hub	8973406
2	Brake disc	8970717
3	Screw	7972441
4	Protecting plate	8963027 (replaces 8954547)
4	Protecting plate	8963027
5	Pin	8968588
6	Screw	8970428
7	Cap	8952665
15	Brake housing	8970618
15	Brake housing	8970626
16	Adjuster kit	4107793
17	Pin	8955437
18	Spring	8955395
18	Spring	8955403
19	Guide	4467064 (replaces 8955445)
19A	Cover	8955478
20	Bleed screw	8955411
20	Bleed screw	4838124
21	Protecting casing	8908576
22	Gasket kit	8961849
23	Slide pin	90297771 (replaces 8955486)
24	Spring	8970816
24A	Spring	8955528
25	Brake pad kit	5055967 (replaces 4196317)
25	Brake pad kit	5055967
