Saab 9000 1994-1998 Front wheel brake

Group 5 Brakes, section 120

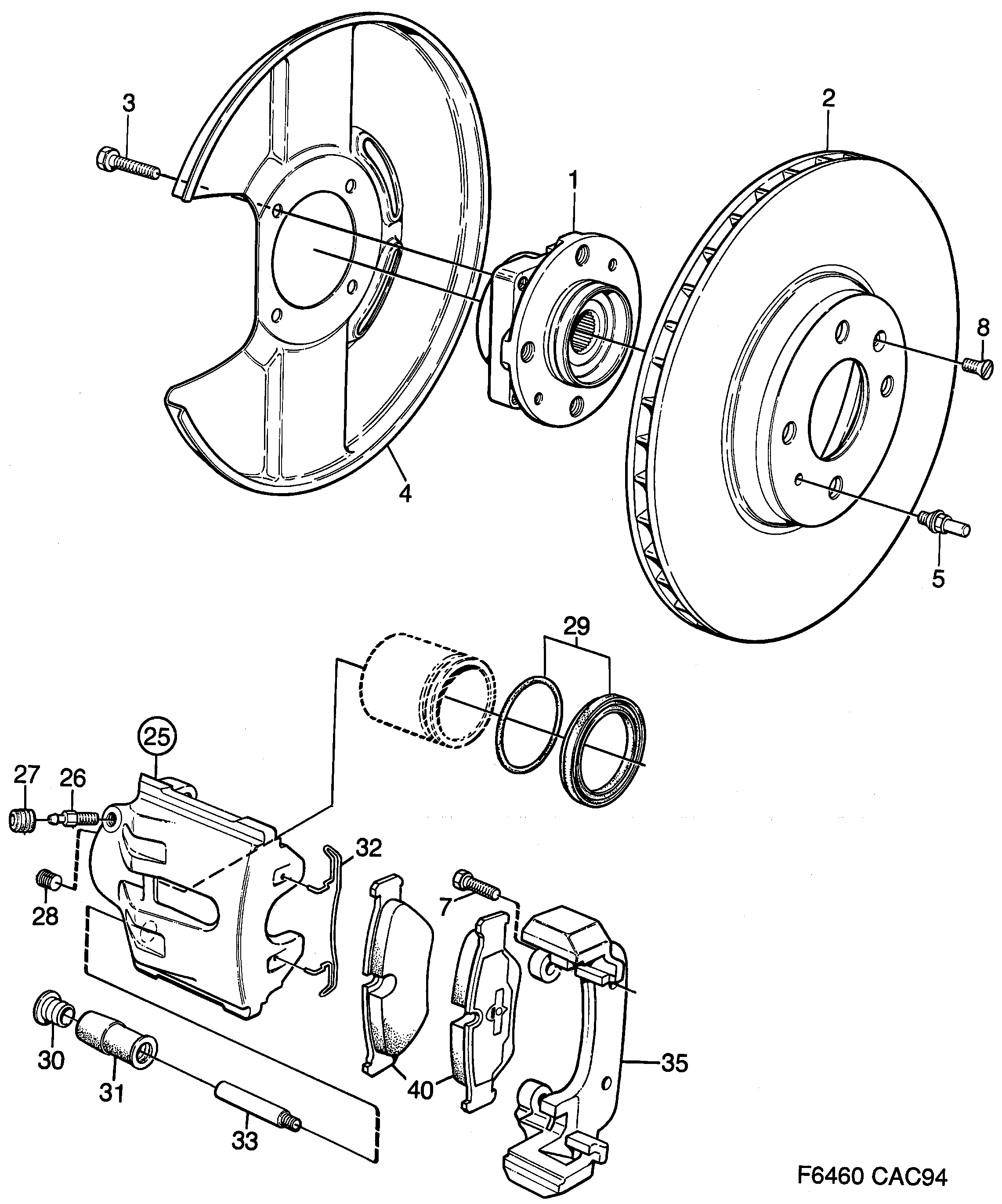

Saab 9000 Front wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	4107462
2	Brake disc	4002143
3	Screw	8098295
4	Protecting plate	4002689
5	Pin	8968588
7	Screw	8953283
8	Screw	8056160
25	Brake housing	4543765 (replaces 8968943)
25	Brake housing	4543773 (replaces 8968950)
25	Brake housing	4543765
25	Brake housing	4543773
26	Bleed screw	8955411
27	Protecting casing	8908576
28	Plug	8955973
29	Gasket kit	8968968
30	Cover	8955478
31	Sleeve	8969107
32	Spring	8969123
33	Slide pin	90297771 (replaces 8969651)
35	Retainer	8969115
40	Brake pad kit	5055769
40	Brake pad kit	4839700
40	Brake pad kit	5055769 (replaces 8993768)
