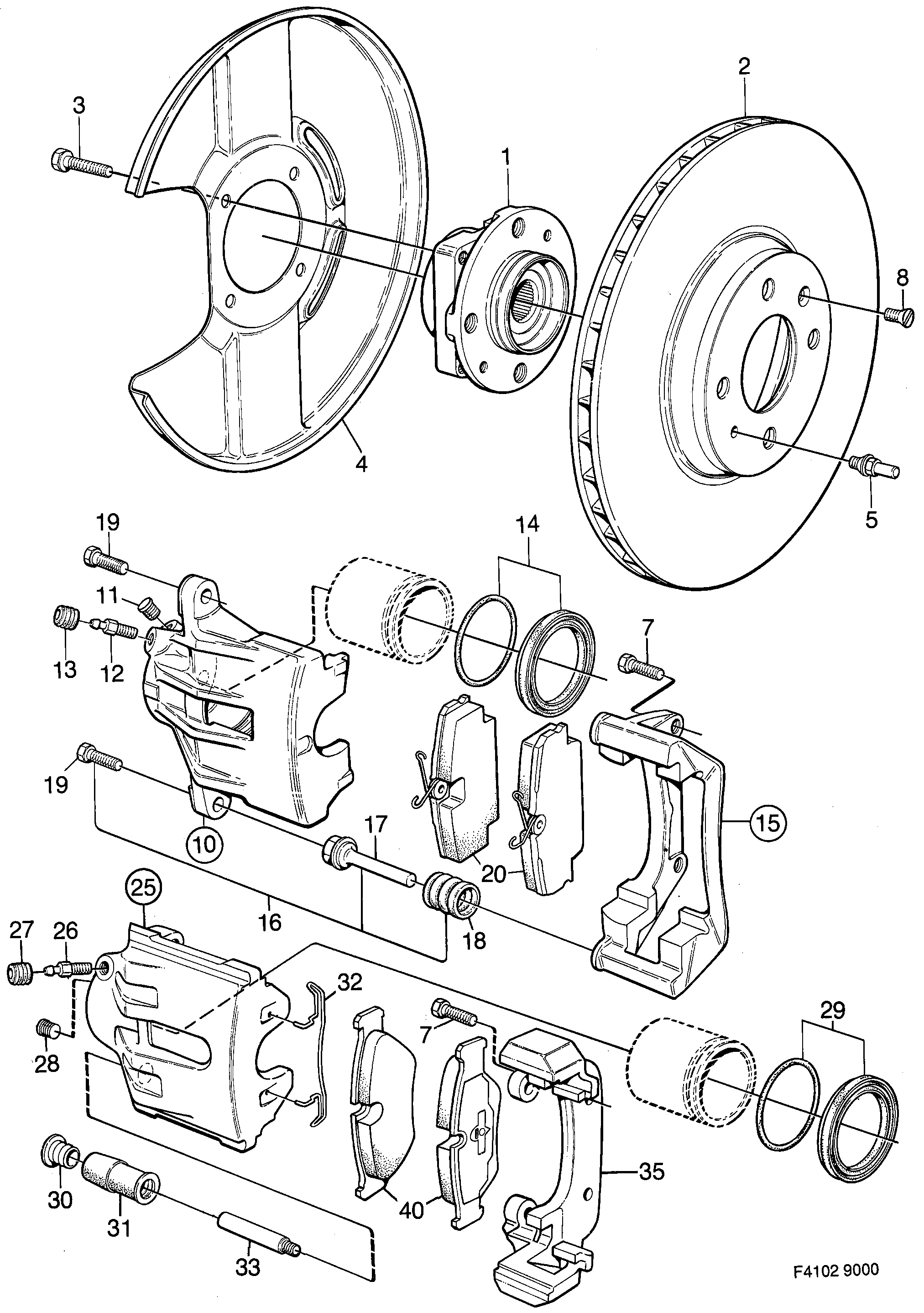

Group 5 Brakes, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Wheel hub | 8952996 |
| 2 | Brake disc | 8965550 |
| 2 | Brake disc | 4002150 (replaces 8966962) |
| 2 | Brake disc | 4002150 |
| 2 | Brake disc | 4002143 |
| 3 | Screw | 7978794 |
| 4 | Protecting plate | 8952939 |
| 4 | Protecting plate | 4002671 |
| 4 | Protecting plate | 4002689 (replaces 8968752) |
| 4 | Protecting plate | 4002689 |
| 5 | Pin | 8953176 |
| 5 | Pin | 8968588 |
| 7 | Screw | 8953283 |
| 8 | Screw | 8056160 |
| 10 | Brake housing | 8955908 |
| 10 | Brake housing | 8955916 |
| 10 | Brake housing | 9102971 |
| 10 | Brake housing | 8967788 |
| 10 | Brake housing | 9102989 |
| 11 | Plug | 8955973 |
| 12 | Bleed screw | 8955072 |
| 13 | Protecting casing | 8955080 |
| 14 | Gasket kit | 8961799 |
| 15 | Retainer | 8955098 |
| 15 | Retainer | 8967713 |
| 16 | Bellows kit | 8961807 |
| 17 | Slide pin | 8961807 (replaces 8955114) |
| 18 | Protecting casing | 8955130 |
| 19 | Screw | 8955122 |
| 20 | Brake pad kit | 8993974 |
| 25 | Brake housing | 4543765 (replaces 8968943) |
| 25 | Brake housing | 4543773 (replaces 8968950) |
| 26 | Bleed screw | 8955411 |
| 27 | Protecting casing | 8908576 |
| 29 | Gasket kit | 8968968 |
| 30 | Cover | 8955478 |
| 31 | Sleeve | 8969107 |
| 32 | Spring | 8969123 |
| 33 | Slide pin | 90297771 (replaces 8969651) |
| 35 | Retainer | 8969115 |
| 40 | Brake pad kit | 5055769 |
| 40 | Brake pad kit | 5055769 (replaces 8993768) |
