Saab 9000 1985-1989 Transmission

Group 4 Transmission, section 850

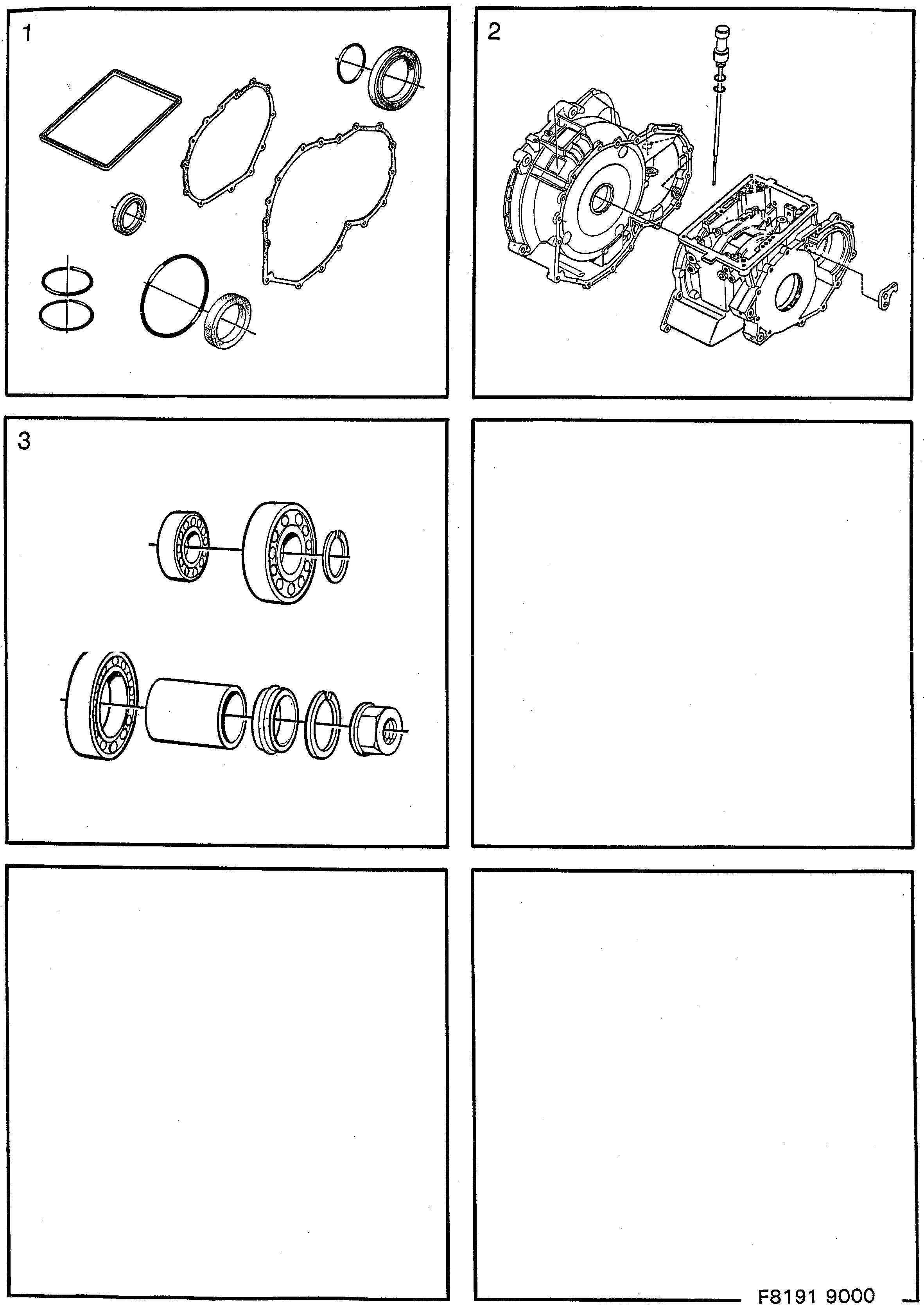

Saab 9000 Transmission diagram

Pos	Article	Part No.
1	Gasket kit	7496094
	Sealing ring	4119244
	O-ring	7552250
	Shaft seal	5440318 (replaces 7552276)
	Seal	7552342
	Gasket	4477378 (replaces 7556228)
	O-ring	7556996
	Sealing ring	7558356
	Shaft seal	30588149 (replaces 7558406)
	Gasket	4477394 (replaces 7570542)
	Sealing ring	7571391
	Sealing ring	4477527 (replaces 7572175)
	Seal	7592223
	Seal	4280376 (replaces 7592231)
	Gasket	7592330
	O-ring	7594120
	O-ring	7594146
	O-ring	7594179
	O-ring	7594187
	O-ring	7594898
	O-ring	7595325
	O-ring	7597776
	Seal	8724874
1	Gasket kit	7496102
	O-ring	4026936
	O-ring	7552151
	O-ring	7552193
	O-ring	7552201
	O-ring	7552235
	O-ring	7552243
	O-ring	7552268
	Piston ring	7557457
	Seal	7557465
	O-ring	7574833
	O-ring	7594153
	O-ring	7594161
	O-ring	7594880
	O-ring	7597354
2	Conversion kit	7496110
	Transmission housing	4025086
	Stop	4025136
	Dipstick	4026449
	Converter shell	4119376
	Screw	8724882
2	Conversion kit	7496128
	Transmission housing	7599798
3	Pinion bearing kit	8781775
	Nut	8716490
	Roller bearing	90490861 (replaces 8719163)
	Roller bearing	8720278
	Snap ring	90511077 (replaces 8721946)
	Gasket	8728685
	Roller bearing	90490864 (replaces 8729378)
	Overhaul kit	8781502
