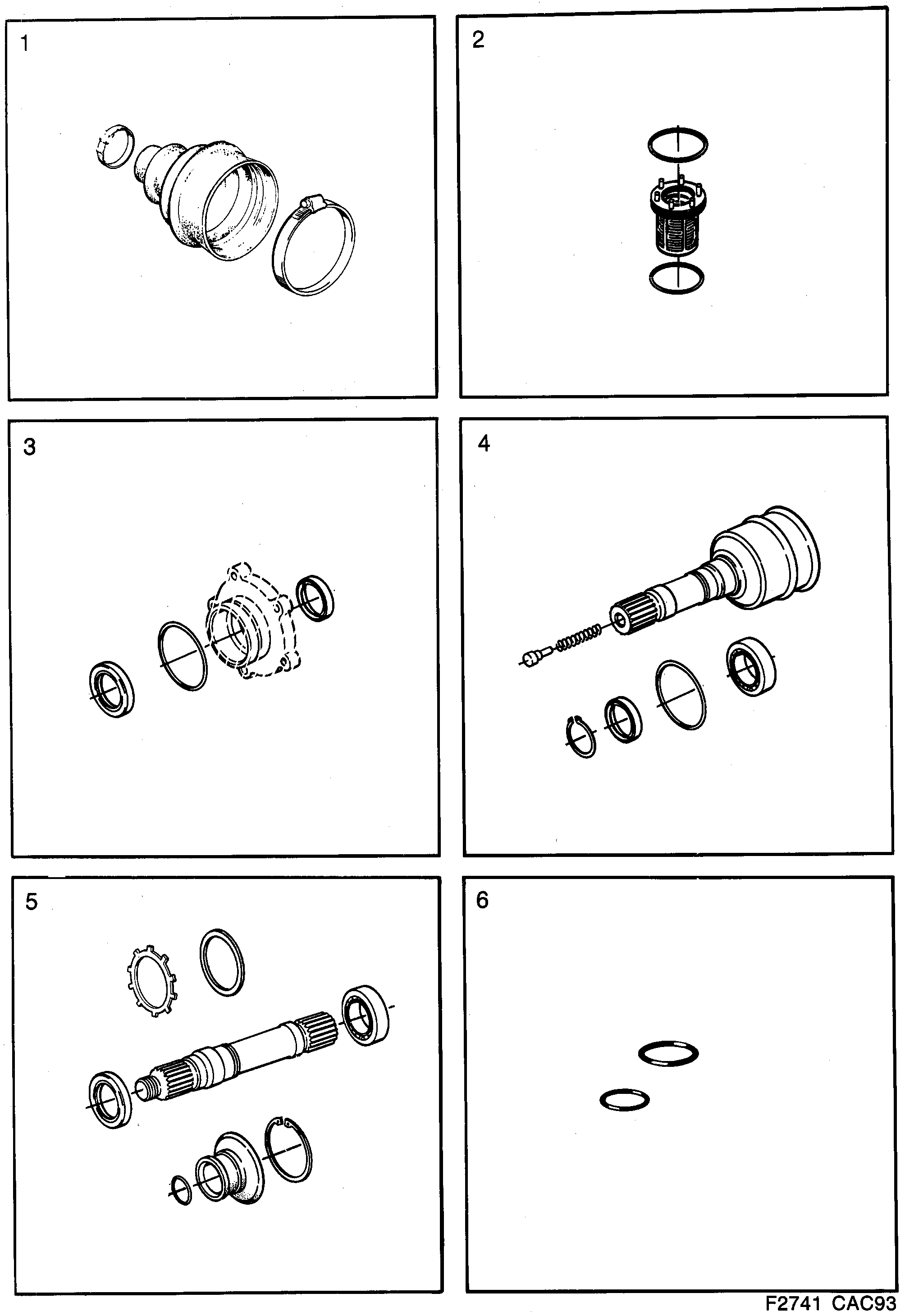

Group 4 Transmission, section 830
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bellows kit | 8993636 |
| Bellows | 8955007 | |
| Banding iron | 7048465 | |
| Clamp | 7048473 | |
| Clamp | 30519720 (replaces 8972986) | |
| 1 | Bellows kit | 8993701 |
| Bellows | 4103248 | |
| 2 | Repair kit | 7575525 |
| Sealing ring | 7571391 | |
| O-ring | 7594187 | |
| O-ring | 7597776 | |
| Filter | 7599525 | |
| 3 | Sealing kit | 7575509 |
| O-ring | 7594120 (replaces 7552128) | |
| Sealing collar | 8731804 (replaces 8704298) | |
| Seal | 8721078 | |
| 4 | Repair kit | 7575566 |
| O-ring | 7597776 (replaces 7552102) | |
| Ball bearing | 7558950 | |
| Lock ring | 8728198 (replaces 7915200) | |
| Spring | 8704314 | |
| Plunger | 8704322 | |
| Companion flange | 8720948 | |
| 5 | Repair kit | 7575574 |
| Shaft | 8723140 (replaces 7571896) | |
| O-ring | 7571904 | |
| Sealing ring | 8720997 | |
| Ring | 8048324 | |
| Lock ring | 8048324 (replaces 7915036) | |
| 6 | Sealing kit | 7575442 |
