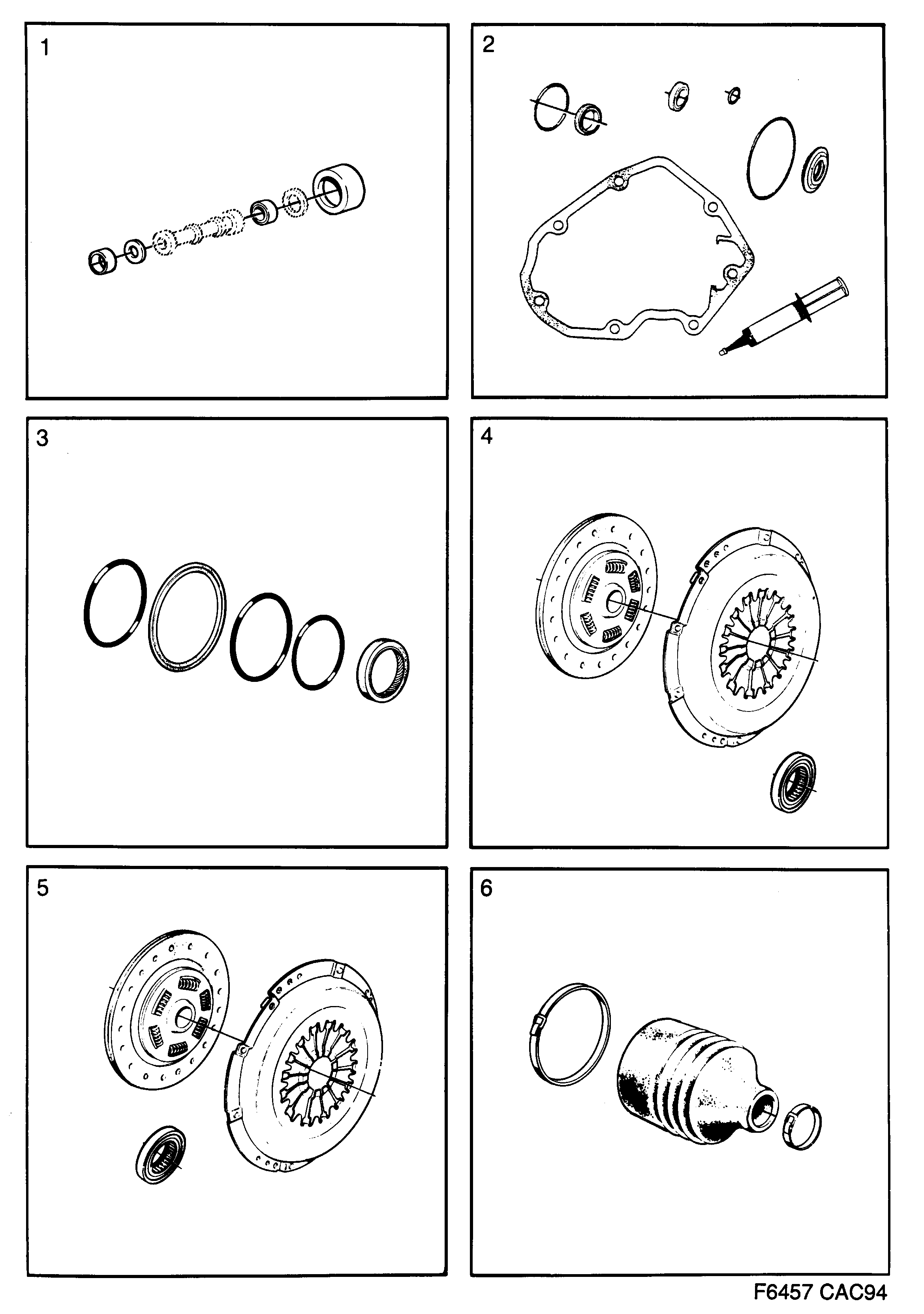

Group 4 Transmission, section 810
| Pos | Article | Part No. |
|---|---|---|
| 1 | Repair kit | 8993156 |
| Gasket | 8903304 | |
| Washer | 7313182 | |
| Gasket | 8940769 | |
| Seal | 7313240 | |
| Gasket | 8945248 | |
| Washer | 8945255 | |
| 2 | Gasket kit | 8781593 |
| Gasket kit | 4904553 | |
| Gasket | 12755014 (replaces 4940169) | |
| O-ring | 90486232 (replaces 8047144) | |
| O-ring | 8711707 | |
| O-ring | 4903787 | |
| O-ring | 8731390 | |
| Sealing collar | 8731804 | |
| Gasket | 90541166 (replaces 8734832) | |
| Seal | 8734980 | |
| Seal | 90511282 (replaces 8741878) | |
| Flange sealant | 90297970 | |
| Adhesive | 4904090 | |
| Grease | 4904108 | |
| 3 | Sealing kit | 4904561 |
| Seal | 8722118 | |
| Seal | 8722126 | |
| Seal | 8729592 | |
| Snap ring | 8737025 | |
| 4 | Clutch kit | 8781551 |
| Release bearing | 8721995 | |
| Clutch disc | 5174941 (replaces 8735722) | |
| Pressure plate | 8736761 | |
| 4 | Clutch kit | 8781692 |
| Clutch disc | 8736555 | |
| 5 | Clutch kit | 8781569 |
| Clutch disc | 8744070 (replaces 8736415) | |
| Pressure plate | 8736423 | |
| 6 | Bellows kit | 8993628 |
| Bellows | 4002747 | |
| Clamp | 4000667 | |
| Clamp | 4425534 | |
| 6 | Bellows kit | 8993685 |
| Bellows | 4105797 | |
| Clamp | 4107108 |
