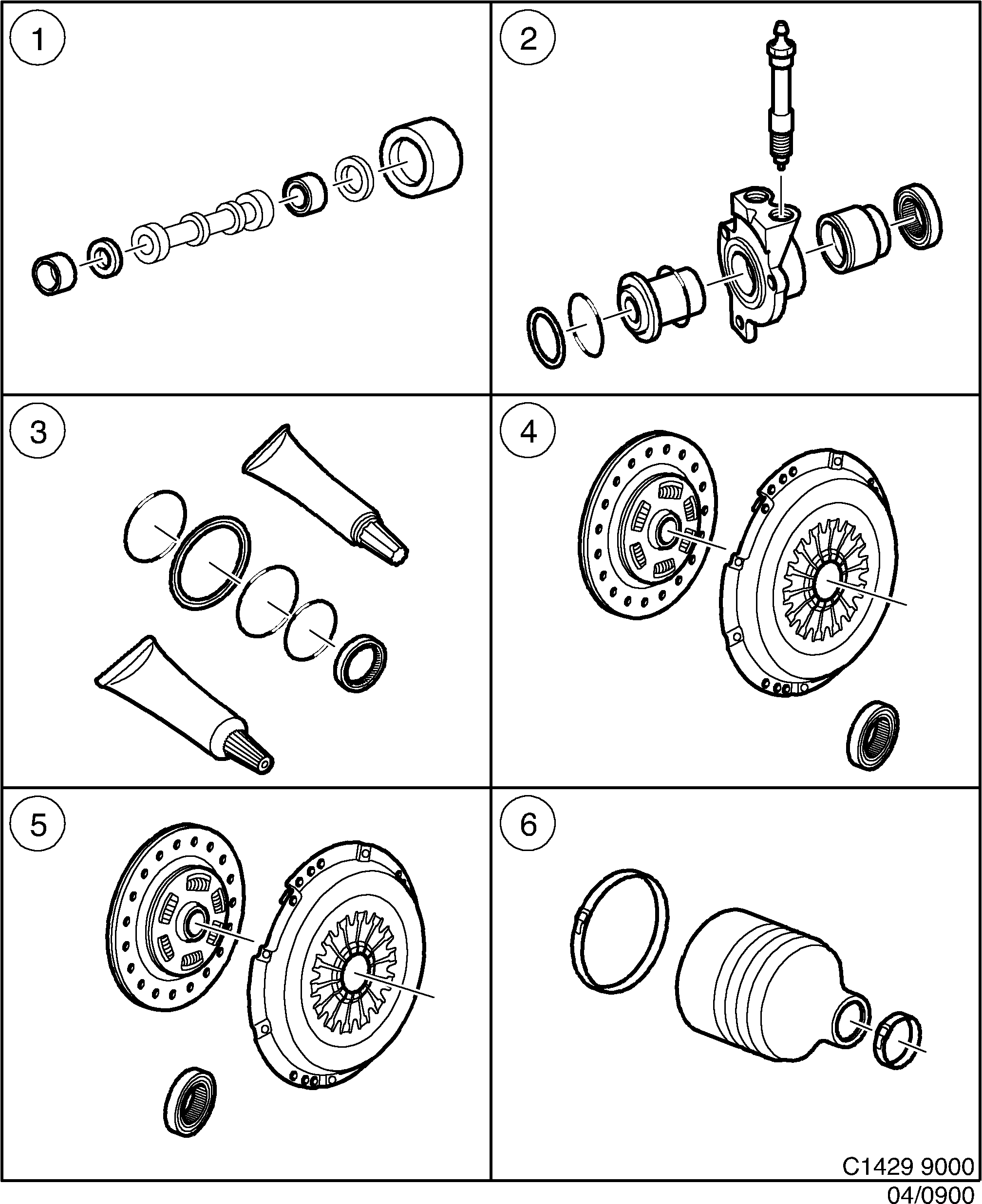

Group 4 Transmission, section 800
| Pos | Article | Part No. |
|---|---|---|
| 1 | Repair kit | 8993156 |
| Gasket | 8903304 | |
| Washer | 7313182 | |
| Gasket | 8940769 | |
| Seal | 7313240 | |
| Gasket | 8945248 | |
| Washer | 8945255 | |
| 2 | Slave cylinder | 8781189 |
| Slave cylinder | 4776332 (replaces 8723504) | |
| Seal | 8733198 | |
| Release bearing | 8721995 | |
| 2 | Slave cylinder | 4904579 (replaces 8781387) |
| Slave cylinder | 4776340 (replaces 8729550) | |
| O-ring | 4903787 (replaces 8729600) | |
| 2 | Slave cylinder | 4904579 |
| Slave cylinder | 4776340 | |
| O-ring | 4903787 | |
| 3 | Sealing kit | 8781122 |
| Seal | 8722118 | |
| Seal | 8722126 | |
| Seal | 8722001 | |
| 3 | Sealing kit | 4904561 |
| Grease | 4904108 | |
| Seal | 8729592 | |
| Seal | 8734980 | |
| Snap ring | 8737025 | |
| Adhesive | 4904090 | |
| 4 | Clutch kit | 8781320 |
| Pressure plate | 8727190 | |
| Clutch disc | 8727695 | |
| 4 | Clutch kit | 8781353 |
| Pressure plate | 8728289 | |
| Clutch disc | 8728297 | |
| 5 | Clutch kit | 8781312 |
| Pressure plate | 8728123 | |
| Clutch disc | 8727935 | |
| 5 | Clutch kit | 8781338 |
| Clutch disc | 8730806 | |
| 6 | Bellows kit | 8993628 |
| Bellows | 4002747 | |
| Banding iron | 30503497 (replaces 7167117) | |
| Clamp | 7048473 | |
| 6 | Bellows kit | 8993685 |
| Bellows | 4105797 |
