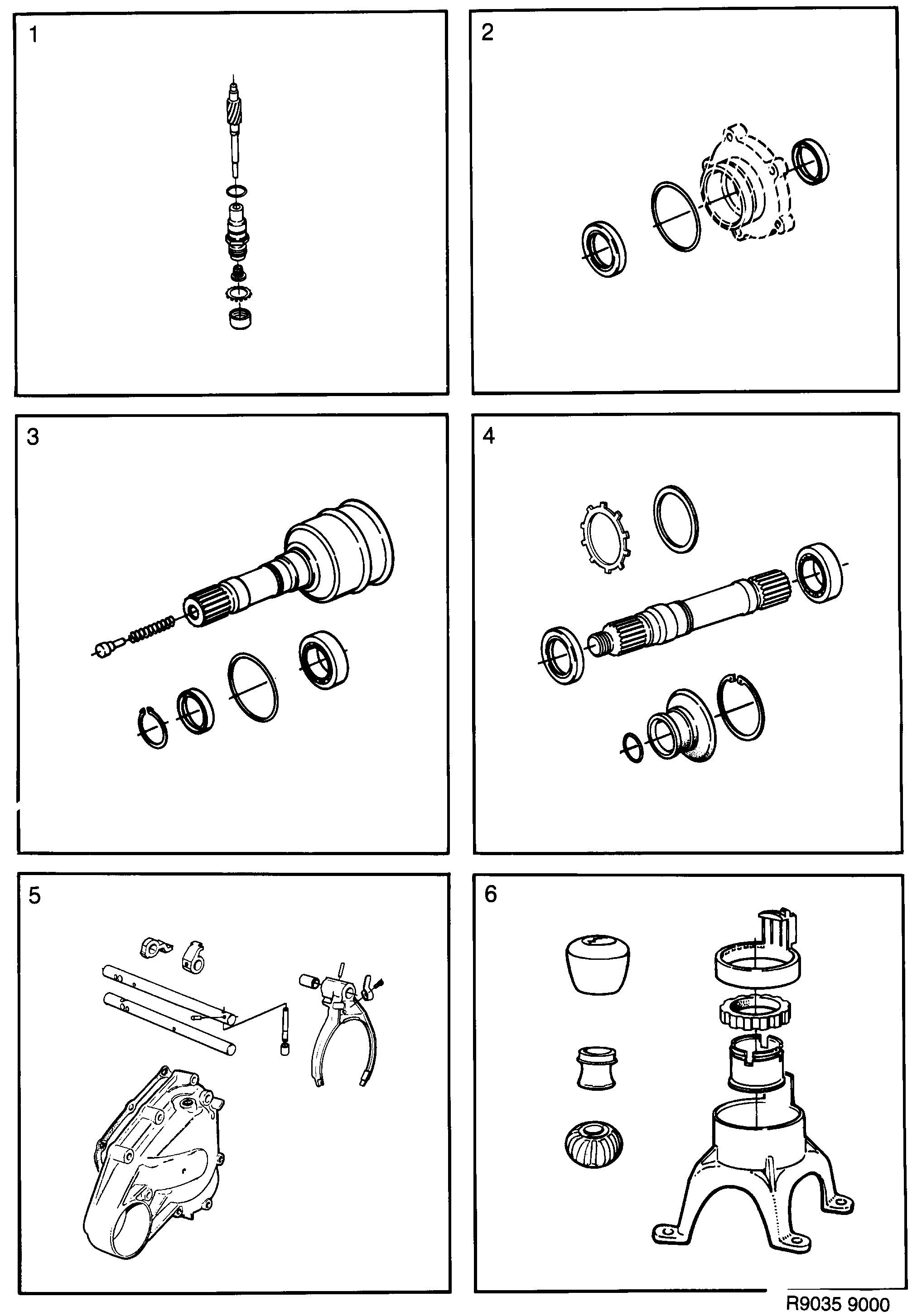

Group 4 Transmission, section 790
| Pos | Article | Part No. |
|---|---|---|
| 1 | Repair kit | 7575517 |
| O-ring | 8711707 | |
| Seal | 8713463 | |
| Locking | 8717308 | |
| Gear | 8723892 (replaces 8720641) | |
| Sleeve | 8727828 (replaces 8721789) | |
| 2 | Sealing kit | 7575509 |
| O-ring | 7594120 (replaces 7552128) | |
| Sealing collar | 8731804 (replaces 8704298) | |
| Seal | 8721078 | |
| 3 | Repair kit | 7575566 |
| O-ring | 7597776 | |
| Ball bearing | 7558950 | |
| Snap ring | 8728198 | |
| Spring | 8704314 | |
| Plunger | 8704322 | |
| Companion flange | 8720948 | |
| 4 | Repair kit | 7575574 |
| Shaft | 8723140 | |
| O-ring | 7571904 | |
| Sealing ring | 8720997 | |
| Ring | 8048324 | |
| Lock ring | 8728198 (replaces 7915200) | |
| 5 | Service kit | 9321381 |
| Pin | 8034373 | |
| Pin | 8117616 | |
| Gasket | 11066422 (replaces 8124133) | |
| Screw | 8723405 | |
| Companion flange | 8724304 | |
| Companion flange | 8724346 | |
| Shift rail | 8724387 | |
| Shift rail | 8724395 | |
| Gear selector fork | 8726689 | |
| Gear selector fork | 8724296 | |
| Bushing | 8724411 | |
| Spring | 8725368 | |
| Cover | 8724619 | |
| Shift rail | 8724643 | |
| Shift rail | 8724643 (replaces 8724353) | |
| Bushing | 8724627 | |
| Gasket | 8728685 (replaces 8725061) | |
| 6 | Kit | 9321407 |
| Joint | 4477147 (replaces 7577620) | |
| Companion flange | 7577646 | |
| Ball | 7577653 | |
| Gear shift housing | 7579873 | |
| Knob | 9382425 |
