Saab 9000 1985-1989 Transmission

Group 4 Transmission, section 760

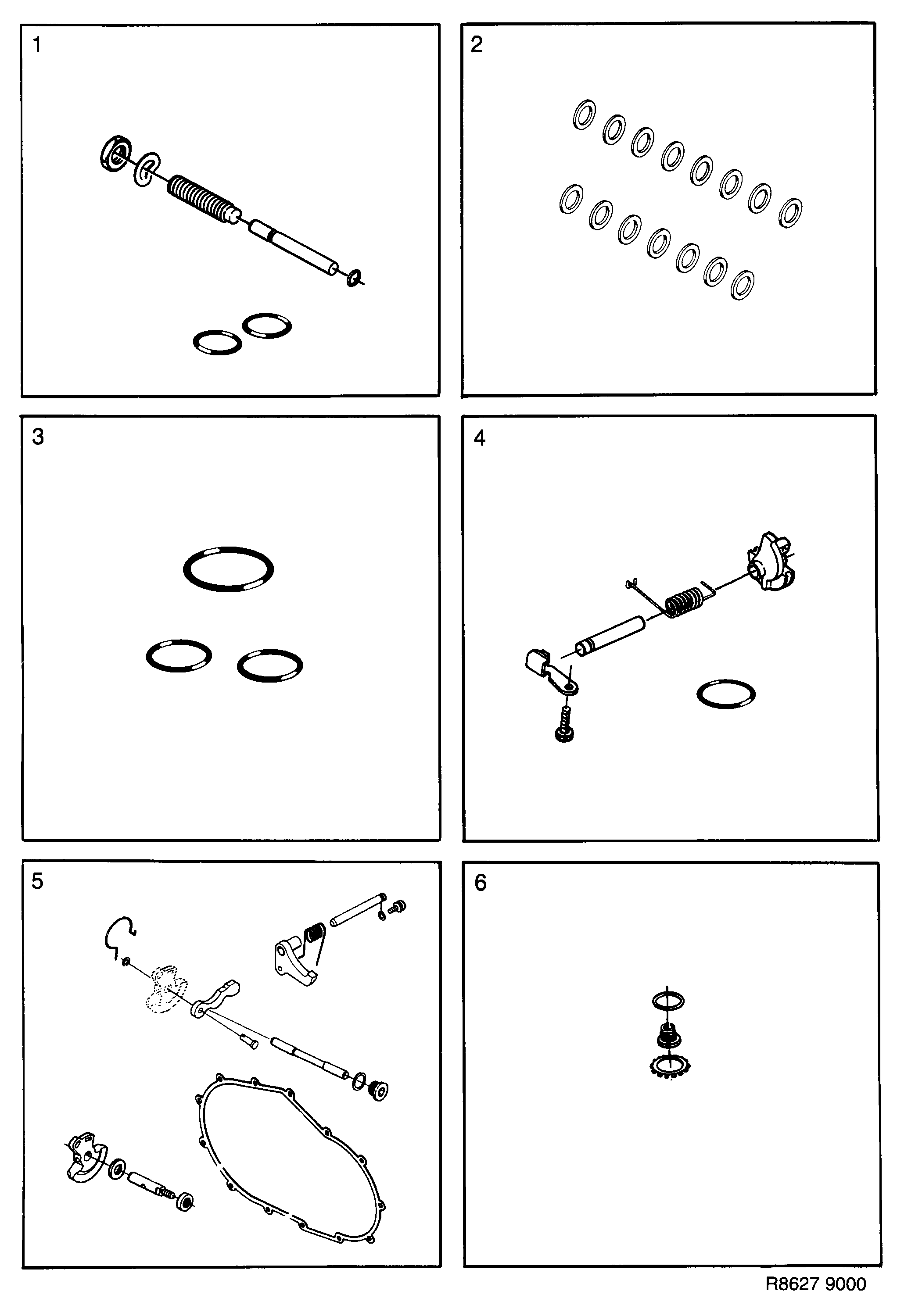

Saab 9000 Transmission diagram

Pos	Article	Part No.
1	Repair kit	7575558
	O-ring	7552144
	Bolt	7554926
	Adjustment screw	7554934
	Nut	7557960
	O-ring	7571482
	Washer	7933872
2	Washer	7556962
	Washer	7556848
	Washer	7556855
	Washer	7556863
	Washer	7556871
	Washer	7556889
	Washer	7571508
	Washer	7571516
	Washer	7571524
	Washer	7571532
	Washer	7571540
	Washer	7571557
	Washer	7571565
	Washer	7571573
	Washer	7571581
	Washer	7571599
3	Sealing kit	7575483
	Sealing ring	7575392
4	Repair kit	7575533
	Cam disc	7556111
	Shaft	7556137
	Spring	7556145
	Fixation plate	7556939
	Hexagon screw	7557903
5	Repair kit	7575541
	Shaft seal	5440318 (replaces 7552276)
	Seal	7552342
	Spring clamp	7554660
	Lock lug	7554678
	Pin	7554686
	Washer	7554694
	Stop	7554702
	Spring	7554710
	Pin	7554728
	Shaft	7554736
	Shaft	7556095
	Segment	7556103
	Gasket	4477378 (replaces 7556228)
	Pin	7556905
	Screw	7557762
6	Sealing kit	7575459
	O-ring	8711707
	Seal	8713463
	Locking	8717308
