Saab 9000 1990-1993 Throttle cable electrical motor ASR

Group 4 Transmission, section 740

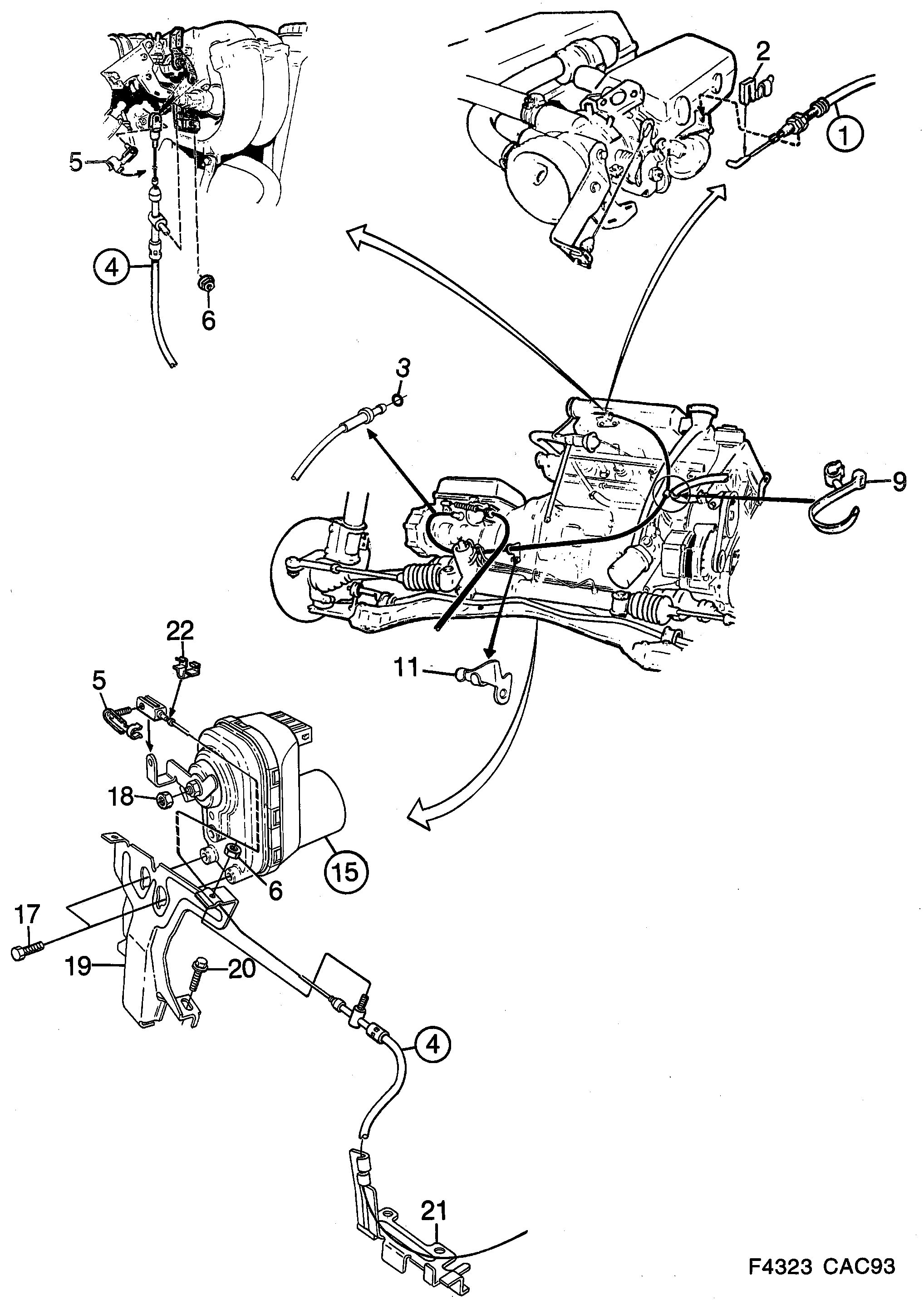

Saab 9000 Throttle cable electrical motor ASR diagram
PosArticlePart No.
1Cable4028239
2Clip8322331
3Sealing ring7575392
3Sealing ring4119244
4Cable4122529 (replaces 4026365)
4Cable4122529
4Cable4281713
5Clip8308389
6Nut11900428 (replaces 7971658)
6Nut11900429 (replaces 7967953)
9Clamp7399652
11Bracket4118311
15Electrical motor4161220
17Screw7969223
18Nut8151227 (replaces 8029555)
19Bracket4163317
20Screw92153146 (replaces 7972607)
21Retainer4163333
22Clamp4384053
