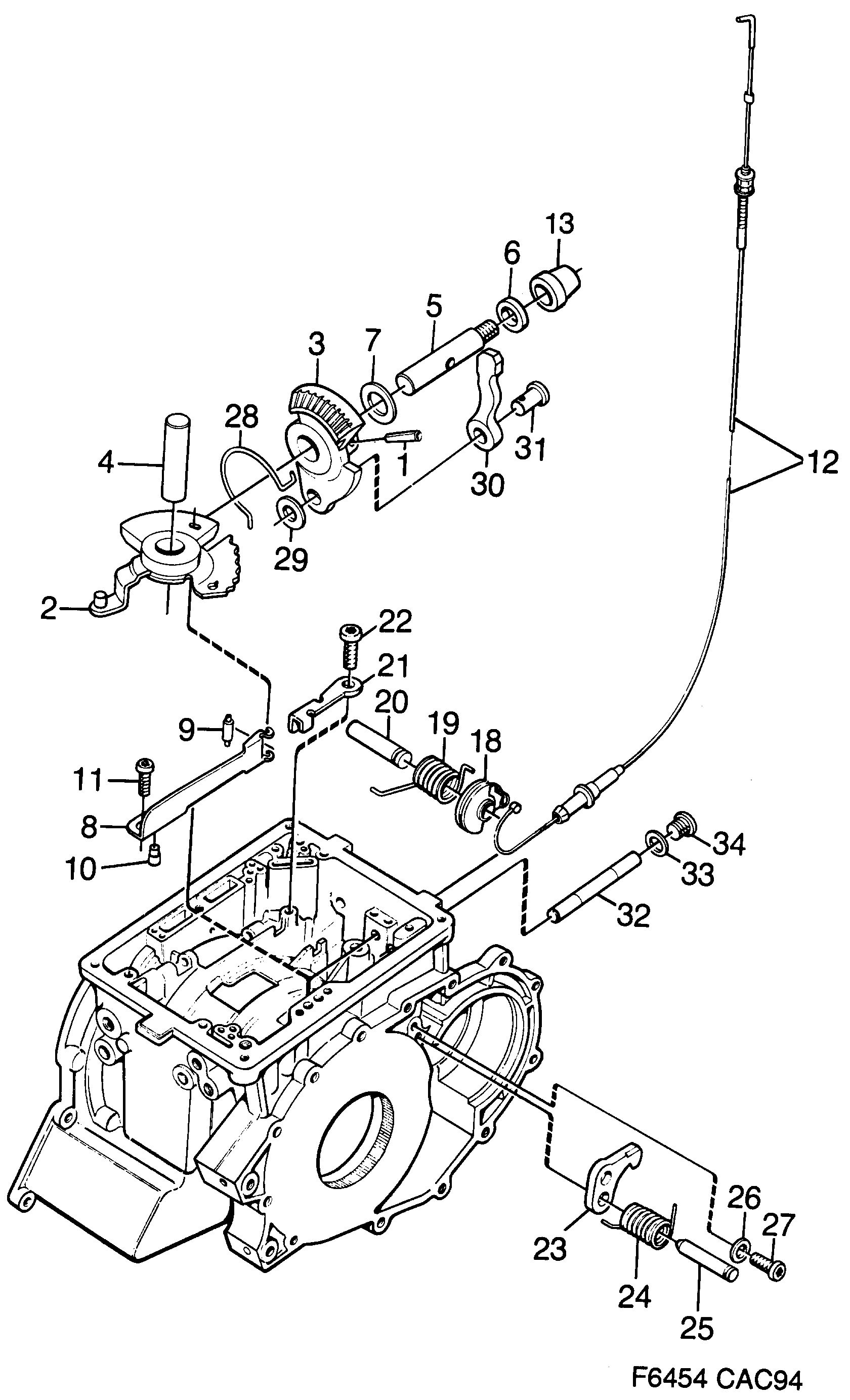

Group 4 Transmission, section 720
| Pos | Article | Part No. |
|---|---|---|
| 1 | Pin | 4122552 |
| 1 | Pin | 4280616 |
| 2 | Catch | 4122578 |
| 2 | Catch | 4385621 |
| 3 | Segment | 7556103 |
| 4 | Bolt | 7556913 |
| 5 | Shaft | 7556095 |
| 6 | Shaft seal | 5440318 (replaces 7552276) |
| 6 | Shaft seal | 5440318 |
| 7 | Washer | 7556889 |
| 7 | Washer | 7556871 |
| 7 | Washer | 7556863 |
| 7 | Washer | 7556855 |
| 7 | Washer | 7556848 |
| 7 | Washer | 7571599 |
| 7 | Washer | 7571581 |
| 7 | Washer | 7571573 |
| 7 | Washer | 7571565 |
| 7 | Washer | 7571557 |
| 7 | Washer | 7571540 |
| 7 | Washer | 7571532 |
| 7 | Washer | 7571524 |
| 7 | Washer | 7571516 |
| 7 | Washer | 7571508 |
| 8 | Spring | 7573934 |
| 8 | Spring | 4281747 |
| 9 | Roller | 7558836 |
| 10 | Pin | 7556905 |
| 11 | Screw | 7557762 |
| 13 | Plug | 4026316 |
| 18 | Cam disc | 7556111 |
| 19 | Spring | 7556145 |
| 20 | Shaft | 7556137 |
| 21 | Fixation plate | 7556939 |
| 22 | Hexagon screw | 7557903 |
| 23 | Stop | 4025136 |
| 24 | Spring | 7554710 |
| 25 | Pin | 4026431 |
| 26 | Washer | 7554694 |
| 28 | Spring clamp | 7554660 |
| 30 | Lock lug | 7554678 |
| 31 | Pin | 7554686 |
| 31 | Pin | 4775177 |
| 32 | Shaft | 7554736 |
| 33 | Seal | 7552342 |
| 33 | Seal | 4477774 |
| 34 | Hexagon screw | 7558513 |
| Gasket kit | 7496094 | |
| Gasket kit | 7496102 |
