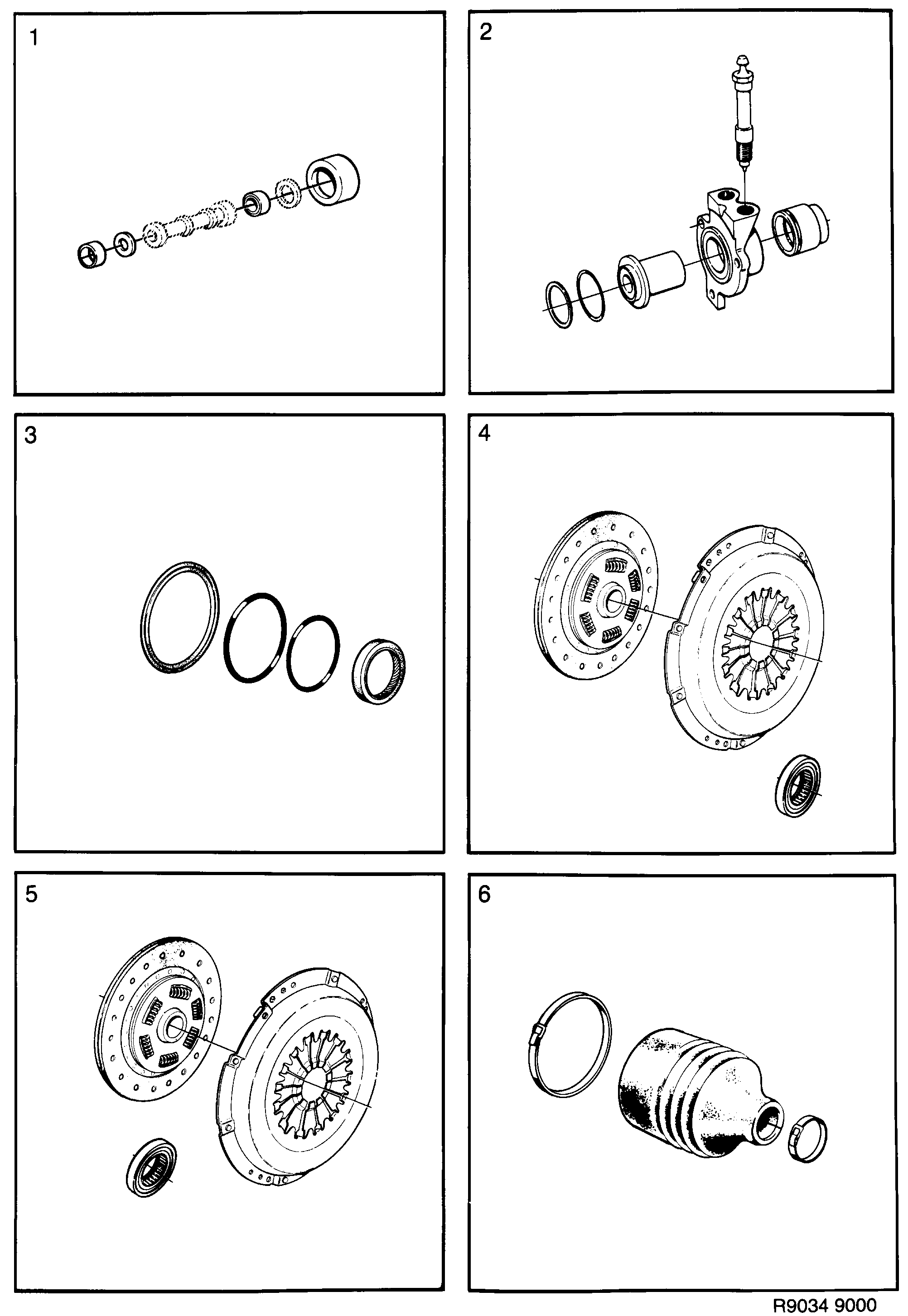

Group 4 Transmission, section 700
| Pos | Article | Part No. |
|---|---|---|
| 1 | Repair kit | 8993156 |
| Gasket | 8903304 | |
| Washer | 7313182 | |
| Gasket | 8940769 | |
| Seal | 7313240 | |
| Gasket | 8945248 | |
| Washer | 8945255 | |
| 2 | Slave cylinder | 8781189 |
| Slave cylinder | 4776332 (replaces 8723504) | |
| O-ring | 8733198 (replaces 8723520) | |
| 3 | Sealing kit | 8781122 |
| Seal | 8722118 | |
| Seal | 8722126 | |
| Seal | 8722001 | |
| 4 | Clutch kit | 8781320 (replaces 8781049) |
| Pressure plate | 8722589 | |
| Clutch disc | 8727695 (replaces 8724833) | |
| Release bearing | 8721995 | |
| 4 | Clutch kit | 8781320 (replaces 8781254) |
| Clutch disc | 8727695 (replaces 8727950) | |
| 5 | Clutch kit | 8781338 (replaces 8781056) |
| Pressure plate | 8728123 | |
| Clutch disc | 8730806 (replaces 8726606) | |
| 5 | Clutch kit | 8781338 (replaces 8781262) |
| 6 | Bellows kit | 8993628 (replaces 8961864) |
| Bellows | 4002747 (replaces 8953135) | |
| Banding iron | 30503497 (replaces 7167117) | |
| Clamp | 7048473 | |
| 6 | Bellows kit | 8993628 |
| Bellows | 4002747 |
