Saab 9000 1994-1998 Gears, pinion Part 1

Group 4 Transmission, section 600

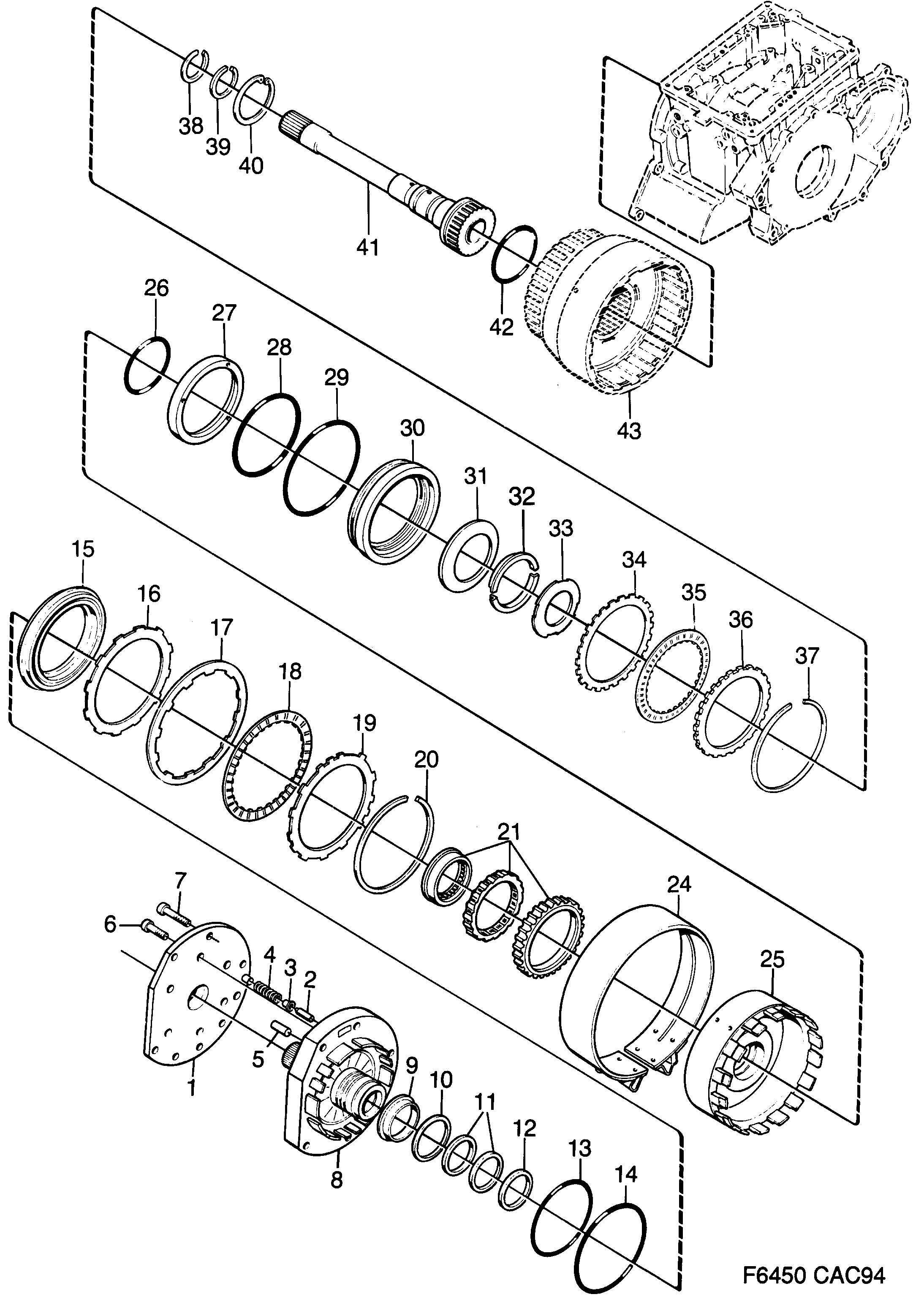

Saab 9000 Gears, pinion Part 1 diagram

Pos	Article	Part No.
1	Pump	7596935
1	Pump	4122081
1	Pump	4477162
2	Valve	7556319
3	Spring guide	4280418
4	Compression spring	7557986
5	Guide pin	4026639
6	Screw	7557747
6	Screw	5258959
7	Screw	7557754
8	Connector	4280061
8	Connector	4478129
8	Connector	4477493
8	Connector	4478111
9	Angle washer	7552896
10	Washer	4025979
10	Washer	4025961
10	Washer	4025953
10	Washer	4025946
10	Washer	4025938
10	Washer	4025920
10	Washer	4025912
10	Washer	4025904
10	Washer	4025896
10	Washer	4025888
10	Washer	4025870
10	Washer	4025862
10	Washer	4025854
10	Washer	4025847
11	Piston ring	7576077
12	Piston ring	4120945
13	O-ring	7574833
14	O-ring	7552151
15	Piston	7574841
16	Clutch disc	7553084
17	Spring disc	7552961
18	Clutch disc	4122016
19	Clutch disc	7592249
20	Lock ring	7572639
20	Lock ring	7572621
20	Lock ring	7572613
20	Lock ring	7558786
20	Lock ring	7572605
20	Lock ring	7574890
20	Lock ring	7595895
20	Lock ring	7595903
20	Lock ring	7595887
21	Freewheel	4026209
21	Freewheel	4384962
24	Brake lining	4385787 (replaces 4026860)
24	Brake lining	4385787
24	Brake lining	4385266
25	Cylinder	4280426
25	Cylinder	4491734
25	Cylinder	5258801
25	Cylinder	4477550
26	O-ring	7594161
27	Spacer	7570351
28	O-ring	7552268
30	Piston	7573280
30	Piston	7554868
31	Spring disc	7552912
32	Stop ring	7554900
32	Stop ring	4384988
33	Thrust washer	7552904
33	Thrust washer	4385217
33	Thrust washer	4384996
33	Thrust washer	4385183
34	Clutch disc	7553068
35	Clutch disc	7572704
35	Clutch disc	4281622
36	Clutch disc	7553092
37	Lock ring	7553217
38	Piston ring	7575632
39	Piston ring	4280111
40	Stop ring	7559024
41	Turbine shaft	4280053
42	O-ring	7594153
	Disc kit	7496052
	Disc kit	7496060
	Gasket kit	7496094
	Gasket kit	7496102
