Saab 9000 1994-1998 Gear box case, cover

Group 4 Transmission, section 570

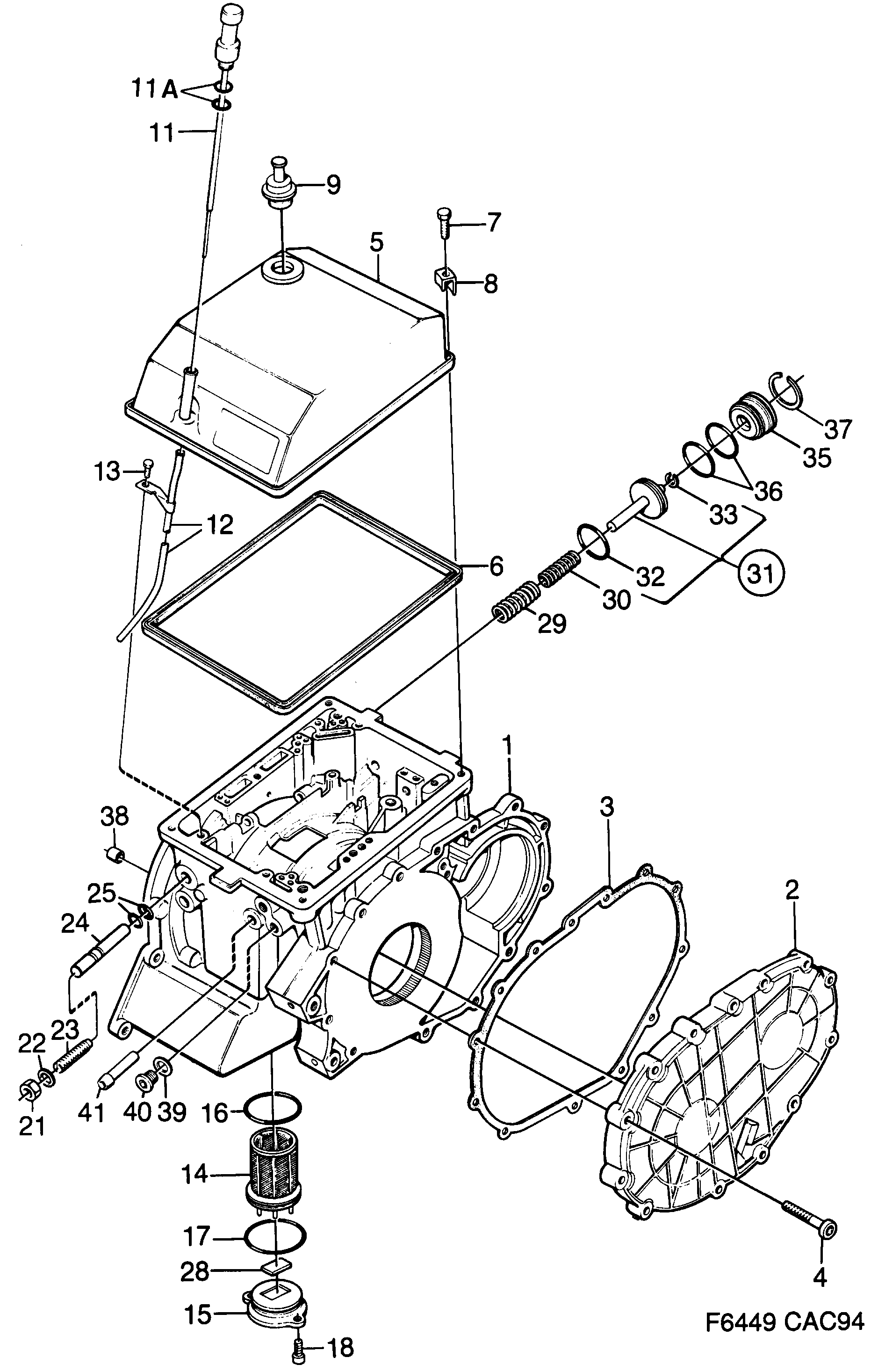

Saab 9000 Gear box case, cover diagram

Pos	Article	Part No.
1	Transmission housing	5259312
1	Transmission housing	5259163
2	Cover	7597784
3	Gasket	4477378 (replaces 4280681)
3	Gasket	4477378
4	Screw	4477311
5	Cover	4119525
5	Cover	4775086
6	Gasket	7592330
7	Screw	7593759
8	Holder	4120671
9	Air vent valve	7597222
9	Air vent valve	4385720
11	Dipstick	4026449
11A	O-ring	7594880
12	Tube	4279931
13	Screw	7557887
14	Filter	7599525
15	Cover	7577562
16	O-ring	7594187
17	O-ring	7597776
18	Screw	4026902
21	Nut	4026753
22	Washer	7933872
23	Adjustment screw	7554934
24	Bolt	4119061
24	Bolt	4385282
25	O-ring	7594179
28	Magnet	7576788
29	Compression spring	7558232
30	Compression spring	7558240
31	Piston	7576937
32	O-ring	7552250
33	Snap ring	7559008
35	Cover	7554967
36	O-ring	7556996
37	Lock ring	7557093
38	Sleeve	7573819
39	Sealing ring	7558356
39	Sealing ring	4385704
40	Plug	7558521
40	Plug	4280673
41	Tube	7571490
	Repair kit	7575525
	Gasket kit	7496094
	Gasket kit	7496102
	Oil	8781668
