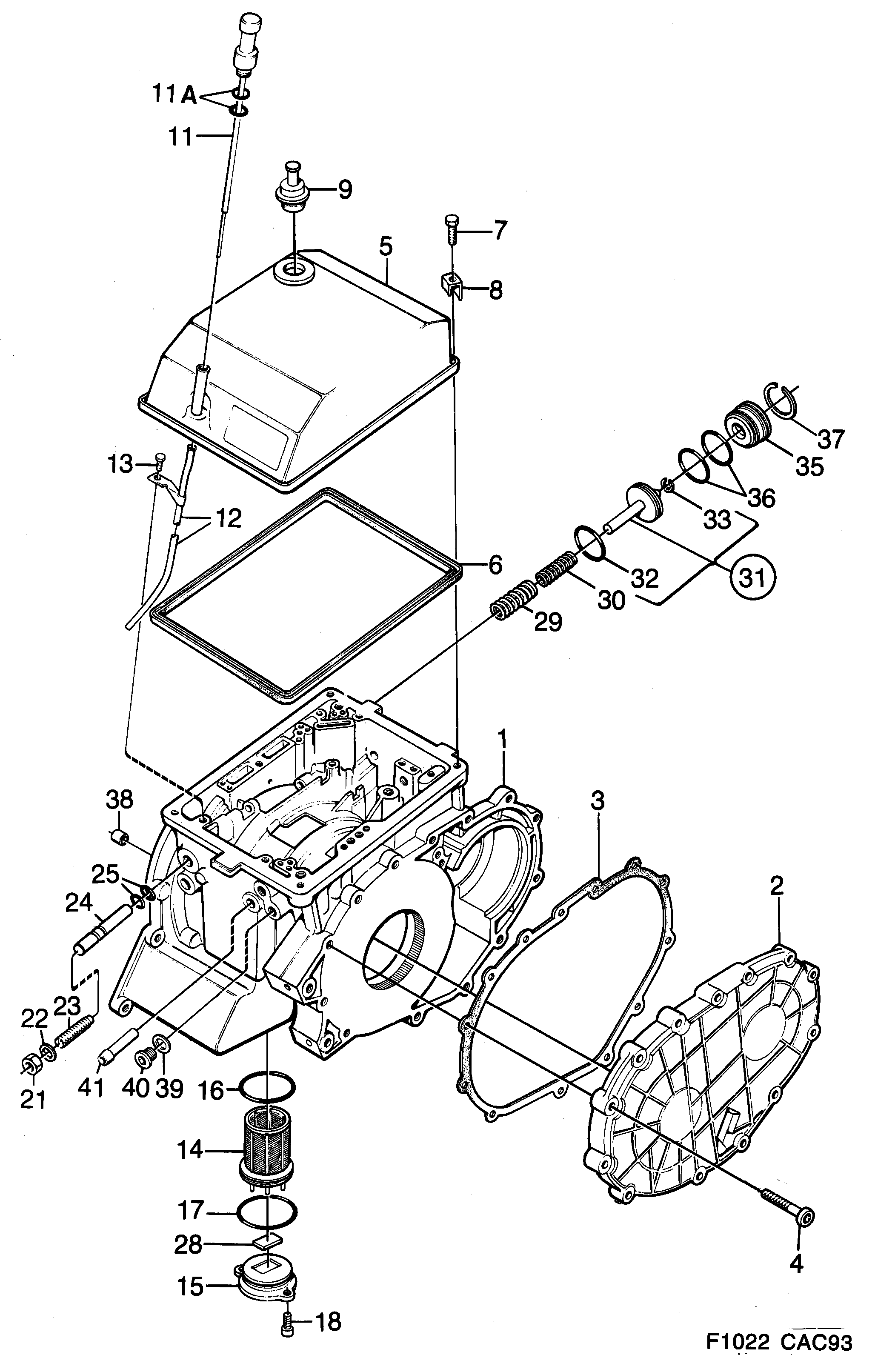

Group 4 Transmission, section 560
| Pos | Article | Part No. |
|---|---|---|
| 1 | Transmission housing | 4025086 |
| 1 | Transmission housing | 4122065 |
| 1 | Transmission housing | 4280038 |
| 1 | Transmission housing | 7599798 |
| 1 | Transmission housing | 4122057 |
| 1 | Transmission housing | 4280046 |
| 2 | Cover | 7597784 |
| 3 | Gasket | 4477378 (replaces 7556228) |
| 3 | Gasket | 4477378 (replaces 4280681) |
| 4 | Screw | 7557754 |
| 5 | Cover | 7574031 |
| 5 | Cover | 4119525 |
| 6 | Gasket | 7592330 |
| 7 | Screw | 7557895 |
| 7 | Screw | 7593759 |
| 8 | Lock plate | 7558828 |
| 8 | Lock plate | 7593742 |
| 8 | Holder | 4120671 |
| 9 | Air vent valve | 7597222 |
| 11 | Dipstick | 4026449 |
| 11A | O-ring | 7594880 |
| 12 | Tube | 7571334 |
| 12 | Tube | 4279931 |
| 13 | Screw | 7557887 |
| 14 | Filter | 7599525 |
| 15 | Cover | 7577562 |
| 16 | O-ring | 7594187 |
| 17 | O-ring | 7597776 |
| 18 | Screw | 7557804 |
| 18 | Screw | 4026902 |
| 21 | Nut | 4026753 |
| 22 | Washer | 7933872 |
| 23 | Adjustment screw | 7554934 |
| 24 | Bolt | 7554926 |
| 24 | Bolt | 4119061 |
| 25 | O-ring | 7594179 |
| 28 | Magnet | 7576788 |
| 29 | Compression spring | 7558232 |
| 30 | Compression spring | 7558240 |
| 31 | Piston | 7576937 |
| 32 | O-ring | 7552250 |
| 33 | Snap ring | 7559008 |
| 35 | Cover | 7554967 |
| 36 | O-ring | 7556996 |
| 37 | Lock ring | 7557093 |
| 38 | Sleeve | 7573819 |
| 39 | Sealing ring | 7558356 |
| 40 | Plug | 7558521 |
| 41 | Tube | 7571490 |
| Repair kit | 7575525 | |
| Gasket kit | 7496094 | |
| Gasket kit | 7496102 |
