Saab 9000 1985-1989 Gears, pinion Part 2

Group 4 Transmission, section 550

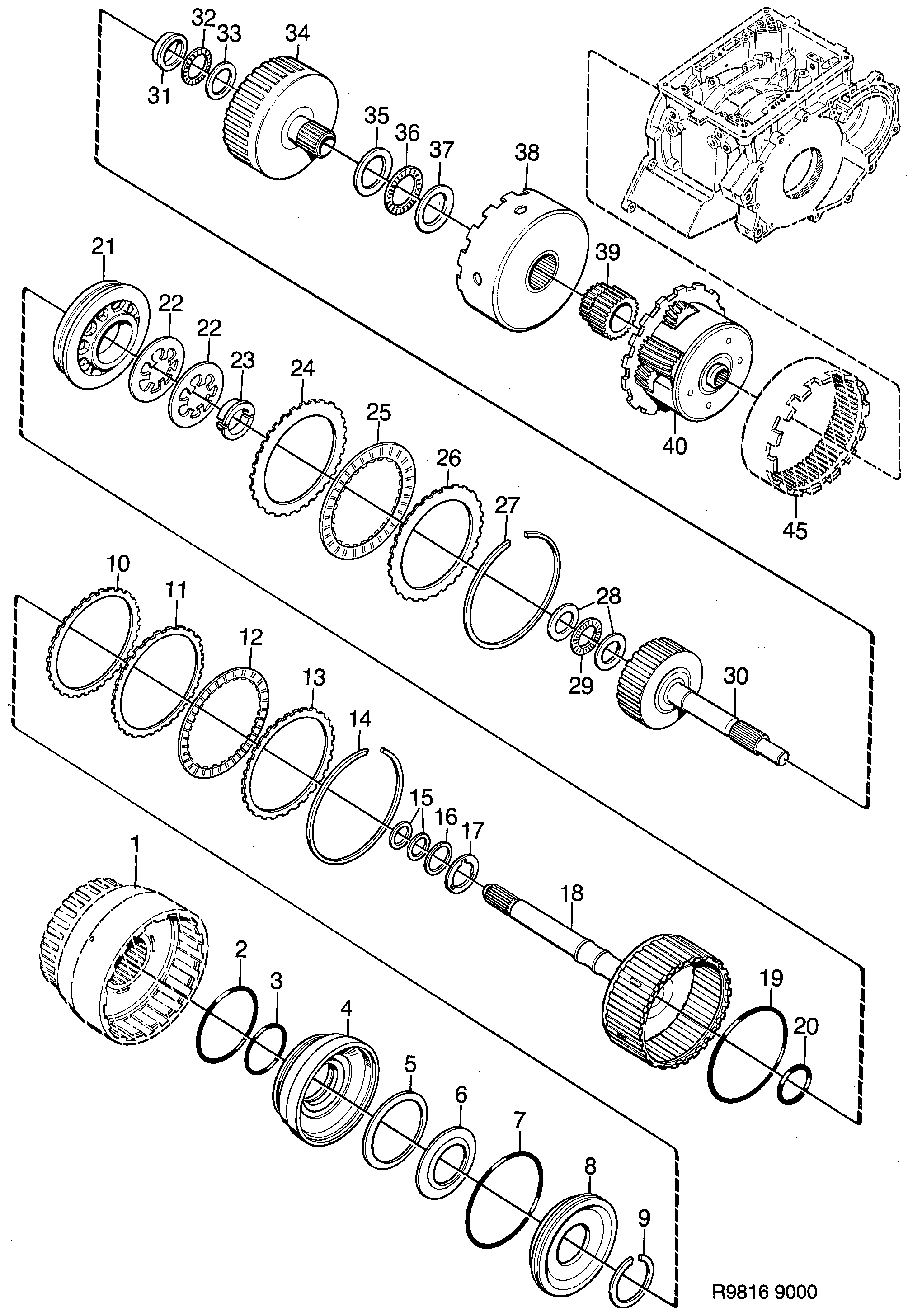

Saab 9000 Gears, pinion Part 2 diagram

Pos	Article	Part No.
2	O-ring	7552185
3	O-ring	7552243
4	Piston	7556061
5	Spring disc	7577588
6	Spring disc	7552920
7	O-ring	7552193
8	Oil dam	7577596
9	Lock ring	7557440
10	Clutch disc	7553050
11	Clutch disc	7553068
12	Clutch disc	7552292
13	Clutch disc	7553092
14	Lock ring	7553183
14	Lock ring	7553191
14	Lock ring	7553209
14	Lock ring	7553217
14	Lock ring	7553225
14	Lock ring	7553233
14	Lock ring	7553241
14	Lock ring	7553258
14	Lock ring	7553266
14	Lock ring	7553274
15	Piston ring	7557457
16	Piston ring	7574817
17	Thrust washer	7570146
18	Motor shaft	7572530
19	O-ring	7552235
20	O-ring	7552201
21	Piston	7579485
21	Piston	7576846
22	Spring disc	7553605
23	Stop ring	7556681
24	Clutch disc	7572571
25	Clutch disc	7597933
26	Clutch disc	7576796
26	Clutch disc	7576853
27	Lock ring	7557085
28	Thrust washer	7552862
29	Angle washer	7552870
30	Intermediate shaft	7554801
31	Angle washer	7552839
32	Angle washer	7552847
33	Thrust washer	7552854
34	Sun gear	7556079
35	Angle washer	7552805
36	Angle washer	7552813
37	Thrust washer	7552821
38	Cylinder	7595937
39	Sun gear	7553548
40	Planetary gear housing	4026423 (replaces 7578768)
	Disc kit	7496045
	Disc kit	7496086
	Gasket kit	7496094
	Gasket kit	7496102
