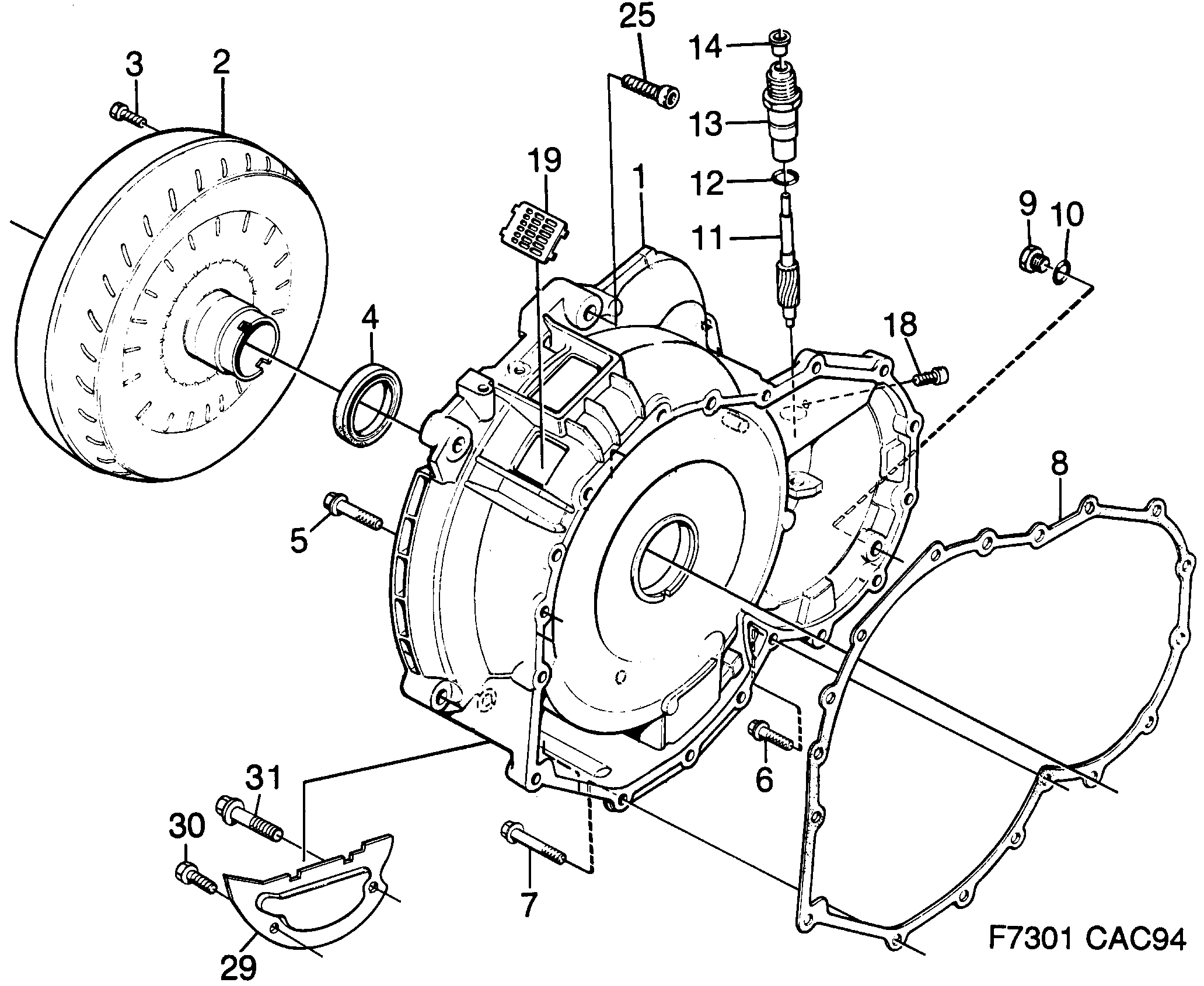

Group 4 Transmission, section 540
| Pos | Article | Part No. |
|---|---|---|
| 1 | Converter shell | 4280715 |
| 1 | Converter shell | 4478061 |
| 2 | Torque converter | 4385795 |
| 2 | Torque converter | 4477238 |
| 2 | Torque converter | 4478806 |
| 3 | Screw | 4477097 |
| 4 | Shaft seal | 30588149 (replaces 4280582) |
| 4 | Shaft seal | 30588149 (replaces 5258967) |
| 5 | Hexagon screw | 7558497 |
| 6 | Screw | 8083974 |
| 7 | Hexagon screw | 7572159 |
| 8 | Gasket | 4477394 (replaces 7570542) |
| 8 | Gasket | 4477394 (replaces 4280699) |
| 8 | Gasket | 4477394 |
| 9 | Plug | 7558505 |
| 10 | Sealing ring | 4477527 (replaces 7572175) |
| 10 | Sealing ring | 4477527 |
| 11 | Gear | 8727240 |
| 12 | O-ring | 7595325 |
| 13 | Sleeve | 8727828 |
| 14 | Seal | 8724874 |
| 18 | Screw | 8724882 |
| 18 | Screw | 4280764 |
| 19 | Protecting casing | 7576911 |
| 25 | Screw | 55557007 (replaces 7984297) |
| 25 | Hexagon screw | 92150043 (replaces 7982606) |
| 29 | Baffle | 4164497 |
| 29 | Baffle | 4164489 |
| 30 | Hexagon screw | 4346235 |
| 31 | Hexagon screw | 4087193 |
| Gasket kit | 7496094 | |
| Gasket kit | 7496102 | |
| Oil | 8781668 |
