Saab 9000 1990-1993 Converter shell Torque converter

Group 4 Transmission, section 530

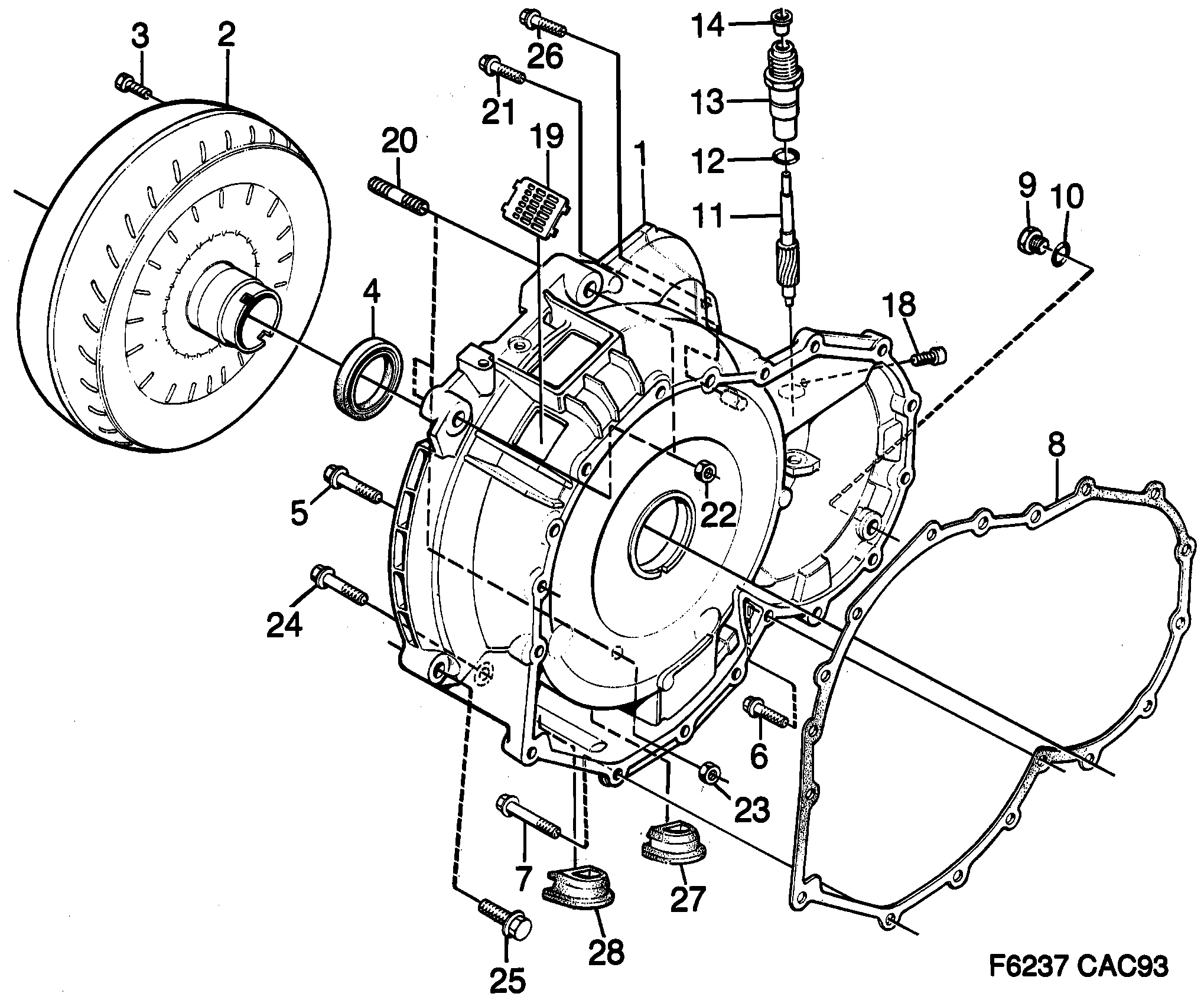

Saab 9000 Converter shell Torque converter diagram

Pos	Article	Part No.
1	Converter shell	4119376
2	Torque converter	7592181
3	Screw	7553449
3	Screw	4121760
4	Shaft seal	30588149 (replaces 7558406)
4	Shaft seal	30588149 (replaces 4280582)
5	Hexagon screw	7558497
6	Screw	8083974
7	Hexagon screw	7572159
8	Gasket	4477394 (replaces 7570542)
9	Plug	7558505
10	Sealing ring	4477527 (replaces 7572175)
11	Gear	8727240
12	O-ring	7595325
13	Sleeve	8727828
14	Seal	8724874
18	Screw	8724882
19	Protecting casing	7576911
20	Stud	7553688
21	Screw	7974801
22	Nut	7976962
22	Flange nut	8151342
24	Screw	7974819
26	Screw	7974793
27	Plug	4119640
28	Plug	4119657
	Gasket kit	7496094
	Gasket kit	7496102
