Saab 9000 1985-1989 Gears, pinion Part 1

Group 4 Transmission, section 520

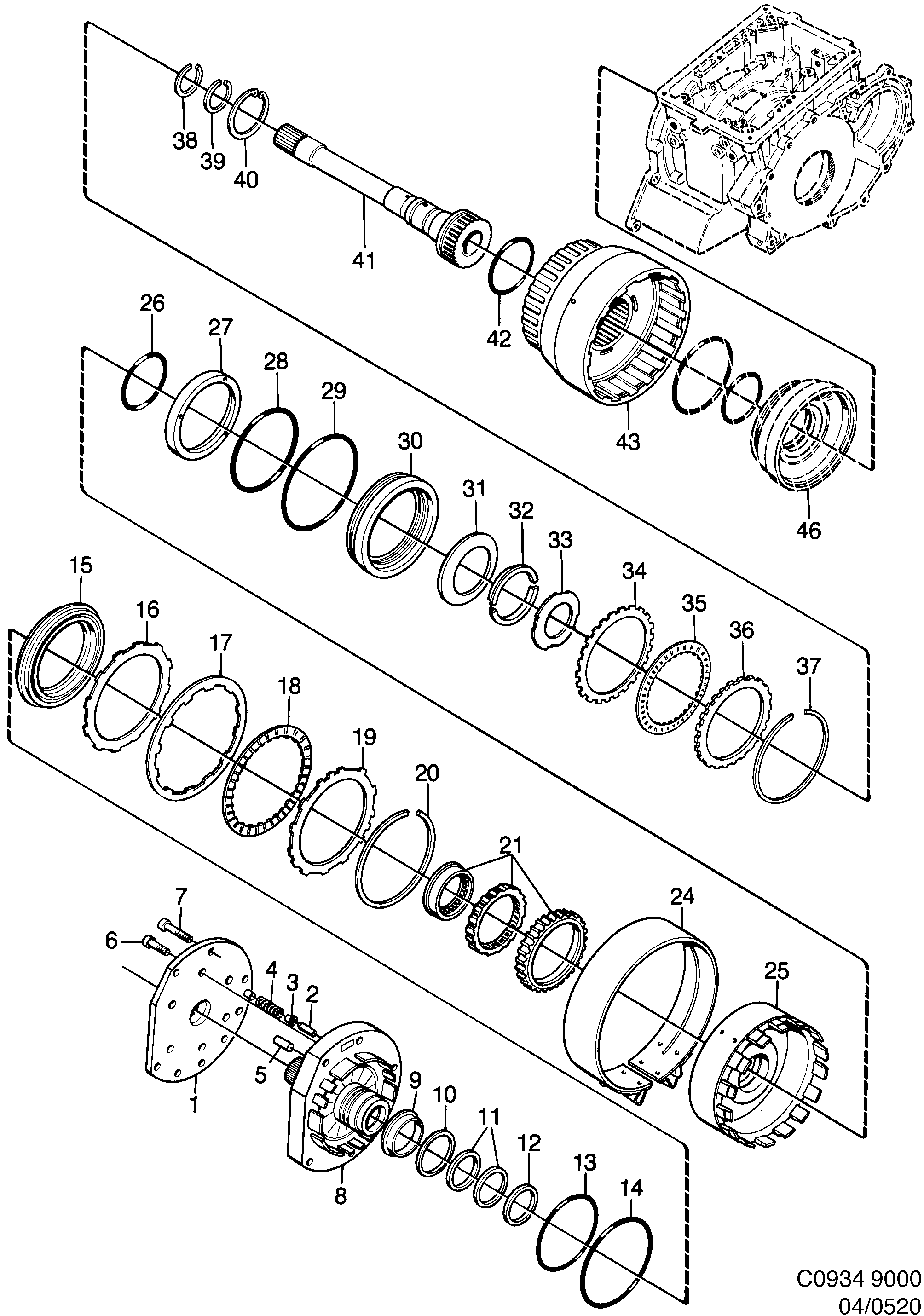

Saab 9000 Gears, pinion Part 1 diagram

Pos	Article	Part No.
1	Pump	7553522
1	Pump	7596935
2	Valve	7556319
3	Spring guide	7556327
4	Compression spring	7557986
5	Guide pin	7557911
5	Guide pin	4026639
6	Screw	7557747
7	Screw	7557754
8	Connector	7574254
8	Connector	7597164
8	Connector	4026407
9	Angle washer	7552896
10	Washer	7557275
10	Washer	7557267
10	Washer	7557259
10	Washer	7557242
10	Washer	7557234
10	Washer	7557226
10	Washer	7557218
10	Washer	7557200
10	Washer	7557192
10	Washer	4025888 (replaces 7557184)
10	Washer	7557176
10	Washer	7557168
10	Washer	7557150
10	Washer	7557143
11	Piston ring	7576077
12	Piston ring	7578271
13	O-ring	7574833
14	O-ring	7552151
15	Piston	7574841
16	Clutch disc	7553084
17	Spring disc	7552961
18	Clutch disc	7570740
19	Clutch disc	7592249
20	Lock ring	7572639
20	Lock ring	7572621
20	Lock ring	7572613
20	Lock ring	7558786
20	Lock ring	7572605
20	Lock ring	7574890
20	Lock ring	7595895
20	Lock ring	7595903
20	Lock ring	7595887
21	Freewheel	7597610
24	Brake lining	4385787 (replaces 7552979)
24	Brake lining	4385787 (replaces 4026860)
25	Cylinder	7578743
26	O-ring	7594161
27	Spacer	7570351
28	O-ring	7552268
30	Piston	7573280
30	Piston	7554868
31	Spring disc	7552912
32	Stop ring	7554900
33	Thrust washer	7552904
34	Clutch disc	7553068
35	Clutch disc	7572704
36	Clutch disc	7553092
37	Lock ring	7553217
38	Piston ring	7575632
39	Piston ring	7575624
40	Stop ring	7559024
41	Turbine shaft	7570526
42	O-ring	7594153
43	Cylinder	7577075
	Disc kit	7496052
	Disc kit	7496060
	Gasket kit	7496094
	Gasket kit	7496102
