Saab 9000 1985-1989 Gear box case, cover

Group 4 Transmission, section 490

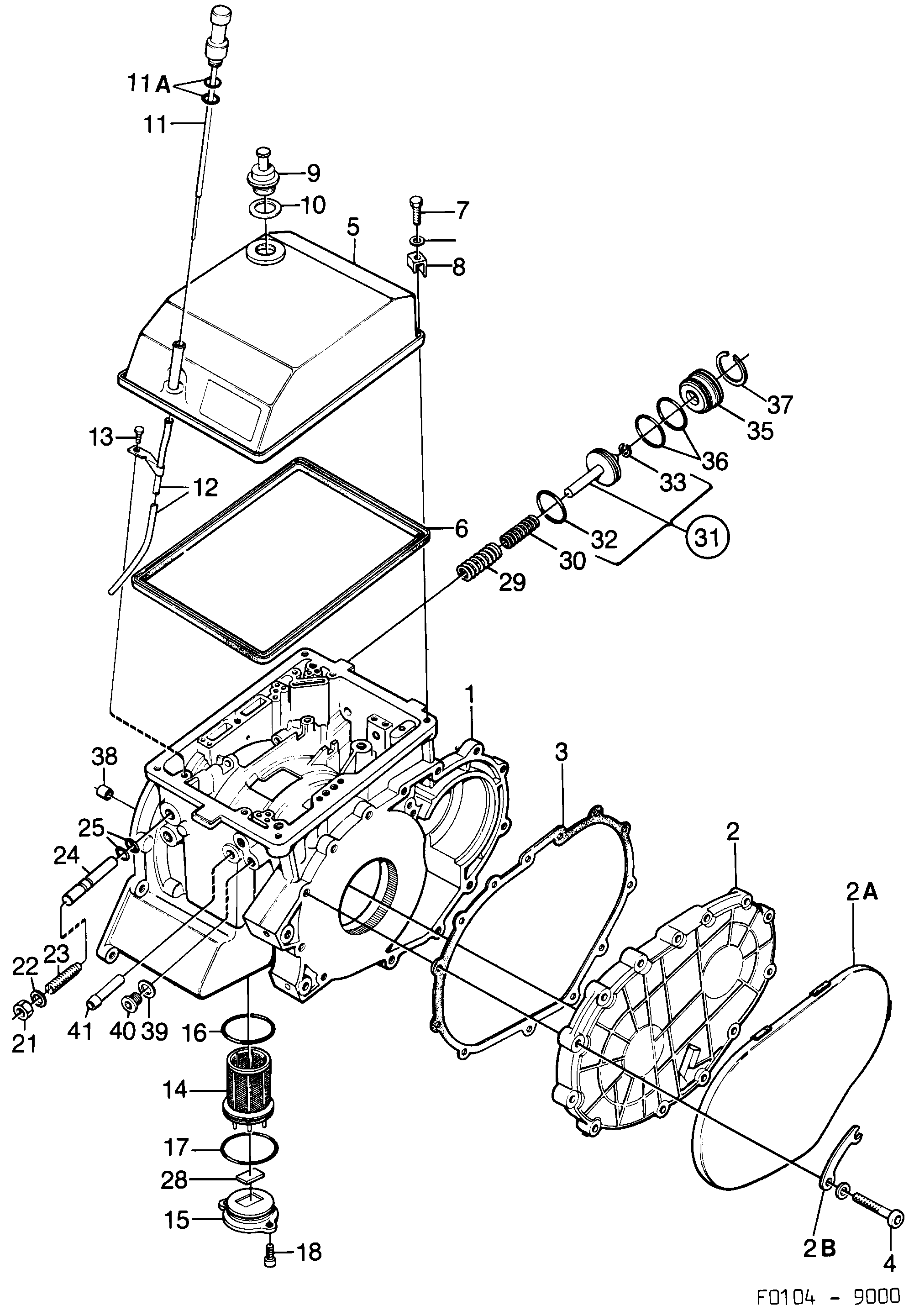

Saab 9000 Gear box case, cover diagram

Pos	Article	Part No.
1	Transmission housing	7577521
1	Transmission housing	7579014
1	Transmission housing	4025078
1	Transmission housing	4025086
1	Transmission housing	7579428
1	Transmission housing	7599780
1	Transmission housing	7599798
2	Cover	7571920
2	Cover	7597784 (replaces 7579089)
2	Cover	7597784 (replaces 7594930)
2	Cover	7597784 (replaces 7597602)
2	Cover	7597784
2A	Cover	7597784 (replaces 7578313)
2B	Brace	7578362
3	Gasket	4477378 (replaces 7556228)
4	Screw	7557754
4	Screw	7592504
5	Cover	7574031
6	Gasket	7592330
7	Screw	7557895
8	Lock plate	7558828
9	Plug	7571409
9	Air vent valve	7593502
9	Air vent valve	7597222
10	Sealing ring	7571391
11	Dipstick	7594948
11	Dipstick	4026449
11A	O-ring	7594880
12	Tube	7571334
13	Screw	7557887
14	Filter	7599525
15	Cover	7577562
16	O-ring	7594187
17	O-ring	7597776
18	Screw	7557804
21	Nut	7557960
21	Nut	4026753
22	Washer	7933872
23	Adjustment screw	7554934
24	Bolt	7554926
25	O-ring	7552144
25	O-ring	7594179
28	Magnet	7576788
29	Compression spring	7558232
30	Compression spring	7558240
31	Piston	7576937
32	O-ring	7552250
33	Snap ring	7559008
35	Cover	7554967
36	O-ring	7556996
37	Lock ring	7557093
38	Sleeve	7573819
39	Sealing ring	7558356
40	Plug	7558521
41	Tube	7571490
	Sealing kit	7575442
	Sealing kit	7575475
	Repair kit	7575525
	Sealing kit	7575467
	Sealing kit	7575491
	Repair kit	7575558
	Gasket kit	7496094
	Gasket kit	7496102
	Conversion kit	7496110
	Conversion kit	7496128
