Saab 9000 1994-1998 Outer universal joint

Group 4 Transmission, section 480

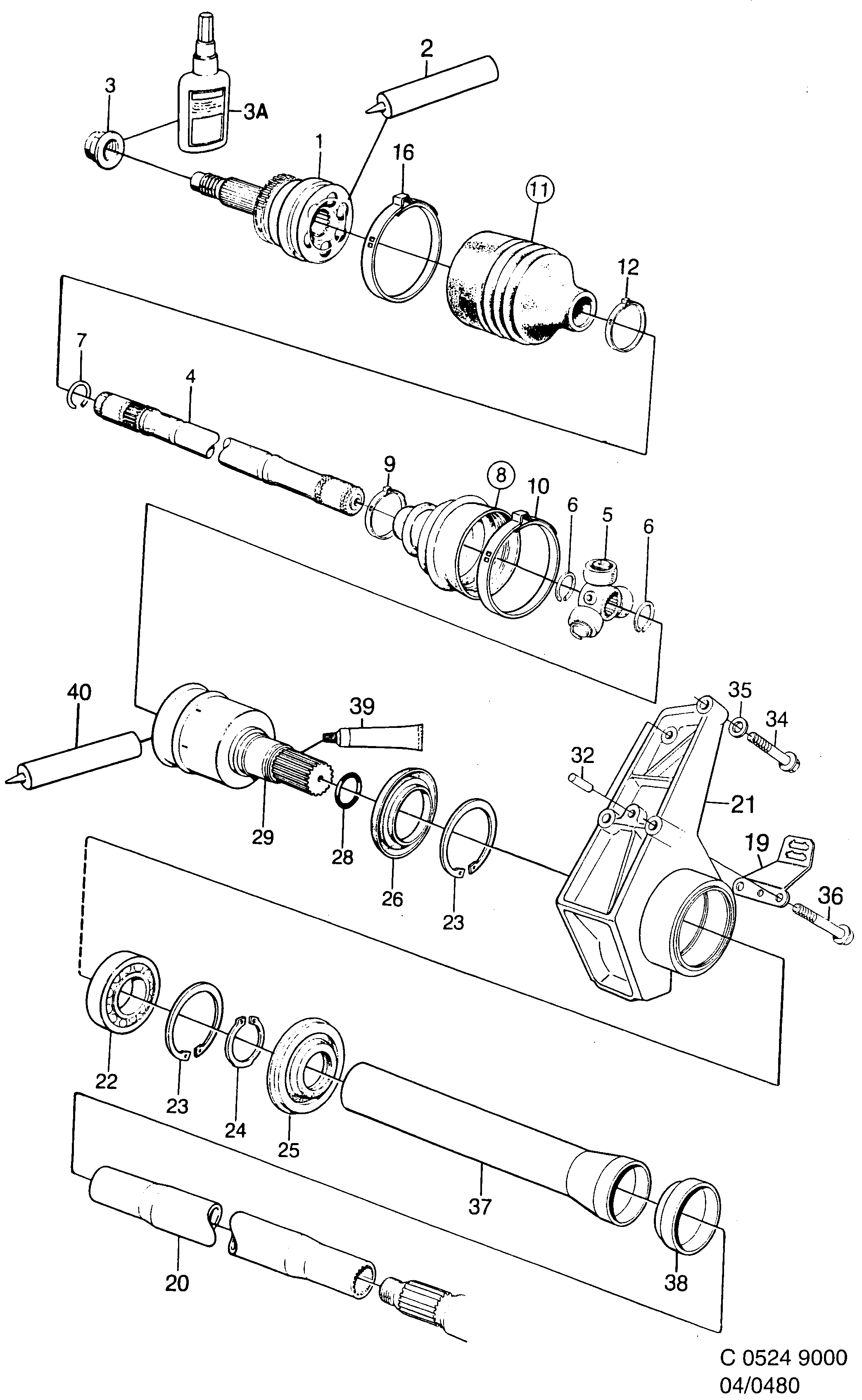

Saab 9000 Outer universal joint diagram

Pos	Article	Part No.
1	Universal joint	4000642
1	Universal joint	4103263
2	Grease	90007999 (replaces 8781676)
3	Lock nut	8965360
3A	Nut lock	7496276
4	Drive shaft	4106134
4	Drive shaft	4105235
5	Companion flange	8950628
5	Companion flange	4103313
6	Lock ring	8950636
7	Lock ring	8921520
8	Bellows kit	8993636
8	Bellows kit	8993701
9	Clamp	4425534
10	Clamp	30519720 (replaces 8972986)
10	Clamp	4103214
11	Bellows kit	8993628
11	Bellows kit	8993685
16	Clamp	4000667
16	Clamp	4107108
19	Connector holder	4392775
20	Intermediate shaft	8727000
20	Intermediate shaft	8727968
21	Bearing bracket	4387536
21	Bearing bracket	4281192
21	Bearing bracket	4387528
21	Bearing bracket	4281184
22	Ball bearing	12785906 (replaces 9381450)
23	Snap ring	12788653 (replaces 7973738)
24	Snap ring	92152060 (replaces 9378332)
25	Ring	4120523
25	Sealing ring	4384046
25	Sealing ring	4579371
26	Sealing ring	9387044
28	O-ring	7970361 (replaces 7971997)
29	Companion flange	8723108
29	Companion flange	4103230
32	Cotter pin	7974074
34	Screw	7982291
34	Screw	7985906
34	Screw	55557006 (replaces 7978323)
35	Washer	7982317
36	Screw	7985914 (replaces 7982309)
36	Screw	7985914
36	Screw	7982580
37	Tube	4027231
38	Ring	4027249
38	Sealing ring	8720997
39	Grease	90513210 (replaces 8781684)
