Saab 9000 1990-1993 Outer universal joint

Group 4 Transmission, section 470

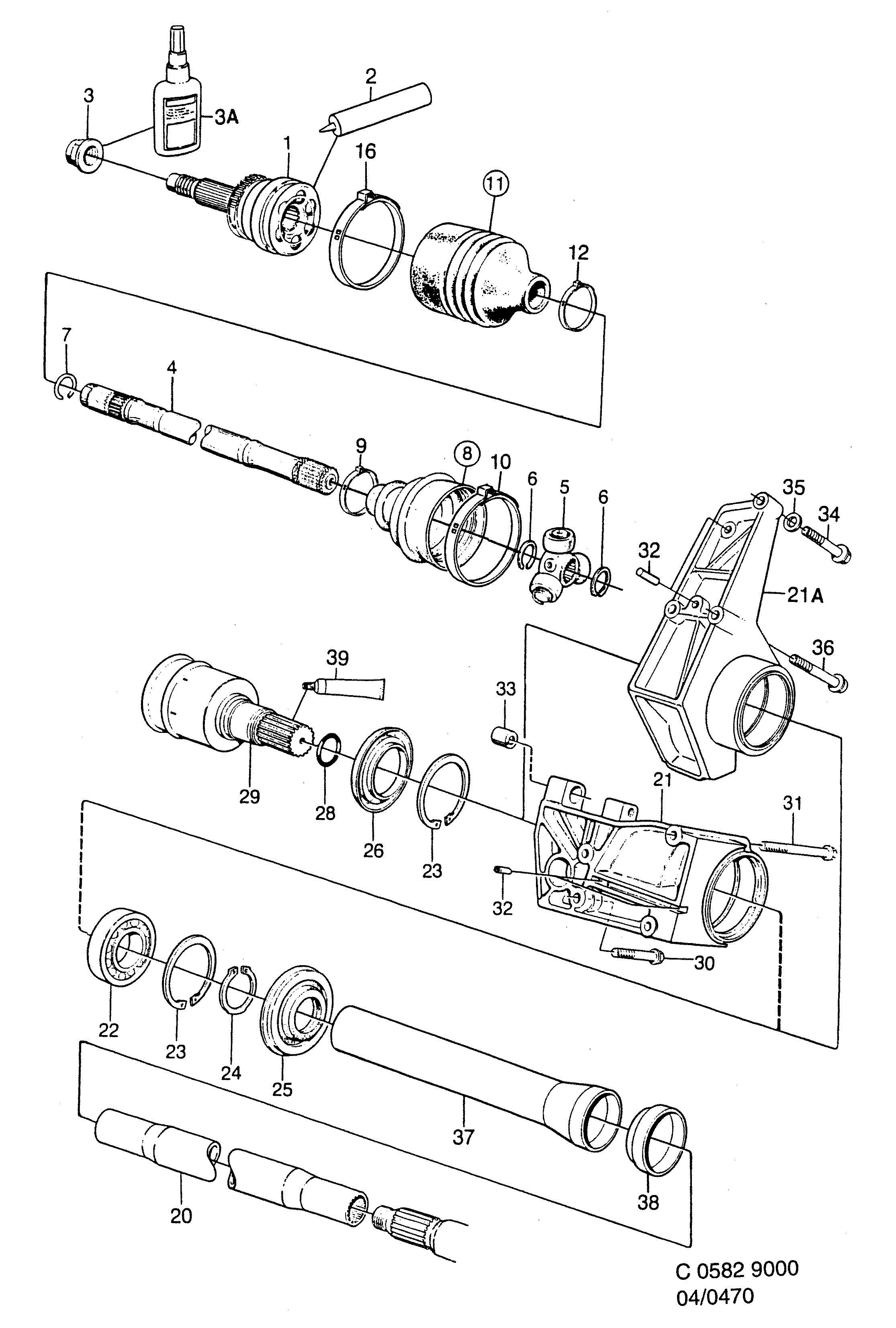

Saab 9000 Outer universal joint diagram

Pos	Article	Part No.
1	Universal joint	8952905
1	Universal joint	4000642
1	Universal joint	4103255
1	Universal joint	4103263
2	Grease	90007999 (replaces 8781676)
3	Lock nut	8965360
3A	Nut lock	7496276
4	Drive shaft	8952970
4	Drive shaft	4106126
4	Drive shaft	4106134 (replaces 8958241)
4	Drive shaft	4106134
4	Drive shaft	4105227
4	Drive shaft	4105235
5	Companion flange	8950628
5	Companion flange	4103313
6	Lock ring	8950636
7	Lock ring	8921520
8	Bellows kit	8993636
8	Bellows kit	8993701
9	Clamp	4195822
9	Clamp	4425534
10	Clamp	30519720 (replaces 8972986)
10	Clamp	4103214
11	Bellows kit	8993628
11	Bellows kit	8993685
16	Clamp	4000667
16	Clamp	4107108
20	Intermediate shaft	8723124
20	Intermediate shaft	8727000
20	Intermediate shaft	8723546
20	Intermediate shaft	8727968
21	Bearing bracket	7592959
21	Bearing bracket	7592942
21A	Bearing bracket	4387536 (replaces 7598840)
21A	Bearing bracket	4387536
21A	Bearing bracket	4387528 (replaces 7599350)
21A	Bearing bracket	4387528
22	Ball bearing	12785906 (replaces 9381450)
23	Snap ring	12788653 (replaces 7973738)
24	Snap ring	92152060 (replaces 9378332)
25	Ring	9385931
25	Sealing ring	7579964
25	Ring	4120523 (replaces 7596497)
25	Ring	4120523
26	Sealing ring	9387044
28	O-ring	7970361 (replaces 7971997)
29	Companion flange	8723108
29	Companion flange	4103230
30	Screw	7970015
31	Screw	7974785
32	Cotter pin	7974074
33	Bushing	7593080
34	Screw	7982291
35	Washer	7982317
36	Screw	7985914 (replaces 7982309)
37	Tube	4027231
38	Ring	4027249
39	Grease	90513210 (replaces 8781684)
