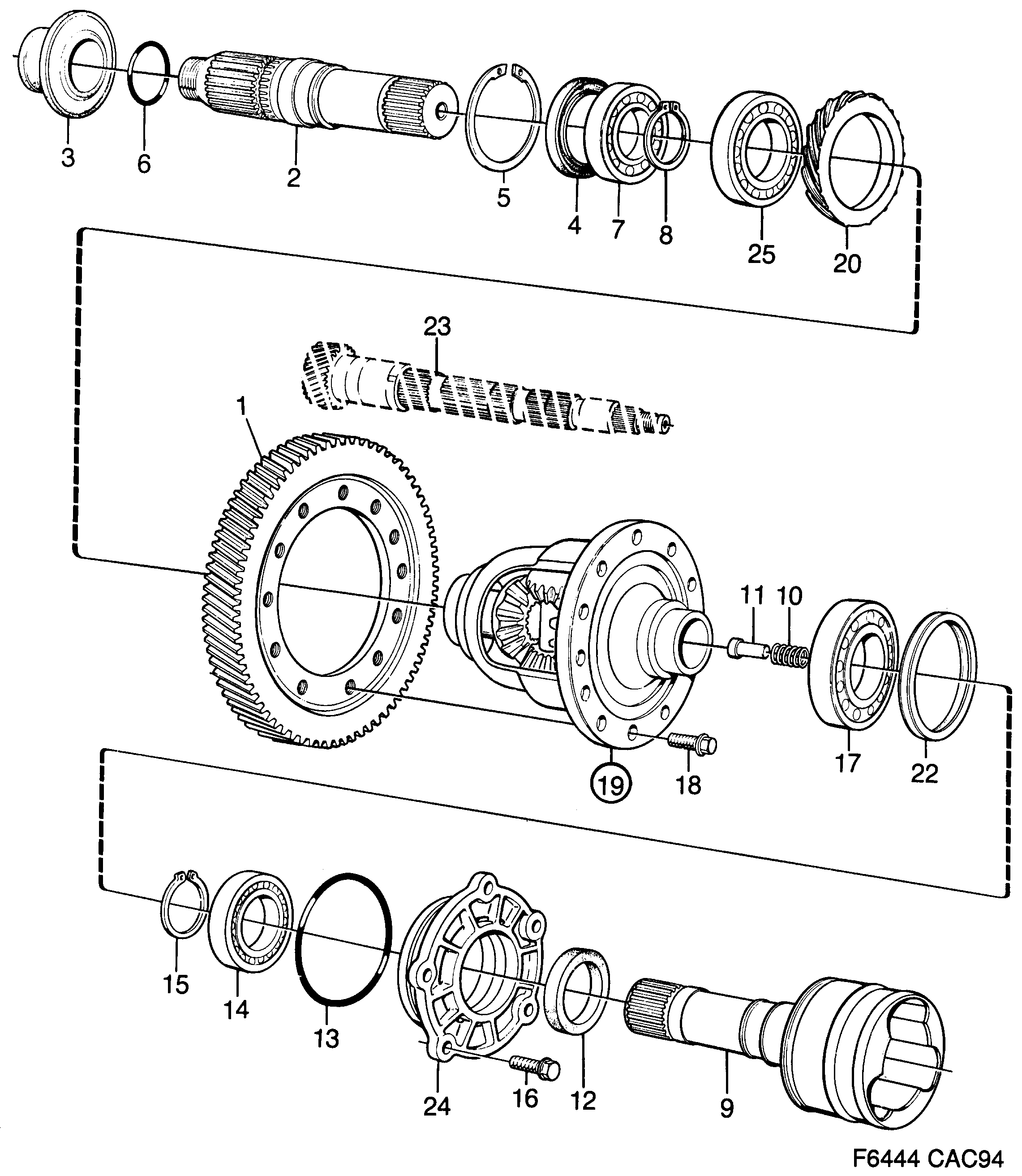

Group 4 Transmission, section 420
| Pos | Article | Part No. |
|---|---|---|
| 1 | Ring gear | 4026977 |
| 1 | Ring gear | 4384590 |
| 2 | Shaft | 8723140 |
| 4 | Seal | 7592223 |
| 5 | Ring | 8048324 |
| 5 | Lock ring | 8048324 (replaces 7915036) |
| 6 | O-ring | 7594898 |
| 7 | Ball bearing | 7558950 |
| 8 | Snap ring | 8728198 (replaces 8047813) |
| 8 | Lock ring | 8728198 (replaces 7915200) |
| 9 | Companion flange | 8720948 |
| 9 | Companion flange | 4103222 |
| 10 | Spring | 8704314 |
| 11 | Plunger | 8704322 |
| 12 | Seal | 4280376 |
| 13 | O-ring | 7594120 |
| 16 | Hexagon screw | 7558497 |
| 17 | Roller bearing | 7558430 |
| 17 | Roller bearing | 4614160 |
| 18 | Screw | 7571862 |
| 18 | Screw | 7571870 |
| 18 | Screw | 4491973 |
| 19 | Differential | 8746406 (replaces 8727778) |
| 19 | Differential | 8746406 (replaces 8729766) |
| 19 | Differential | 8746406 |
| 20 | Drive gear | 8727232 |
| 22 | Adjusting washer | 4122123 |
| 22 | Adjusting washer | 4122131 |
| 22 | Adjusting washer | 4122149 |
| 22 | Adjusting washer | 4122156 |
| 22 | Adjusting washer | 4122164 |
| 22 | Adjusting washer | 4122172 |
| 22 | Adjusting washer | 4122180 |
| 22 | Adjusting washer | 4122198 |
| 22 | Adjusting washer | 4122206 |
| 22 | Adjusting washer | 4122214 |
| 24 | Bearing seat | 8719098 |
| 25 | Roller bearing | 7558448 |
| 25 | Roller bearing | 4614178 |
| Sealing kit | 7575509 | |
| Repair kit | 7575566 | |
| Repair kit | 7575574 | |
| Gasket kit | 7496094 | |
| Gasket kit | 7496102 |
