Saab 9000 1985-1989 Outer universal joint

Group 4 Transmission, section 400

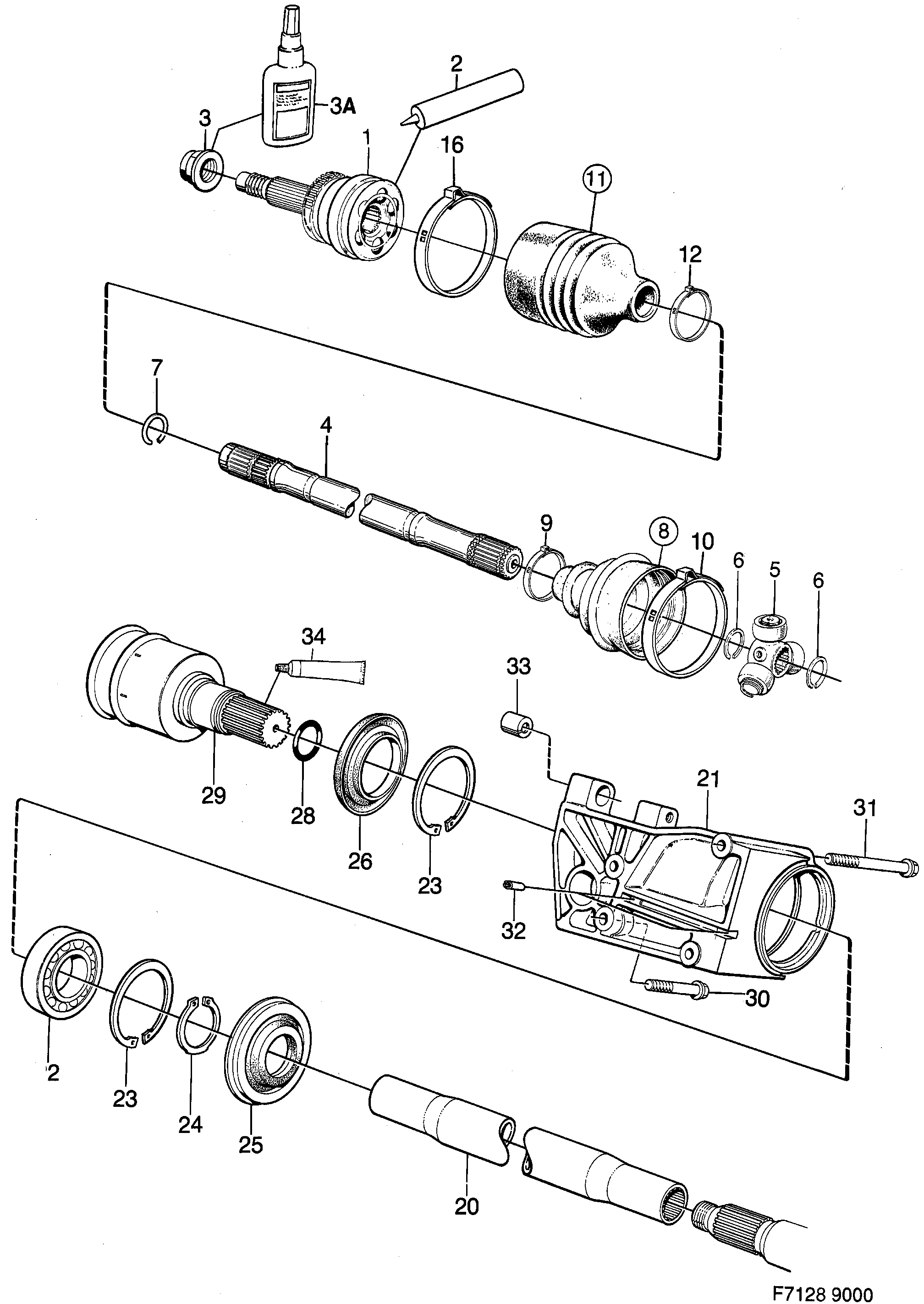

Saab 9000 Outer universal joint diagram

Pos	Article	Part No.
1	Universal joint	8952905
1	Universal joint	8963571
1	Universal joint	4002911
2	Grease	90007999 (replaces 8781676)
3	Lock nut	8965360
3A	Nut lock	7496276
4	Drive shaft	8952970
4	Drive shaft	4106134 (replaces 8958241)
5	Companion flange	8950628
6	Lock ring	8950636
7	Lock ring	8921520
8	Bellows kit	8993636 (replaces 8961872)
8	Bellows kit	8993636
9	Clamp	4195822
10	Clamp	30519720 (replaces 8972986)
11	Bellows kit	8993628 (replaces 8961864)
11	Bellows kit	8993628
16	Clamp	4000667
20	Intermediate shaft	8723124
20	Intermediate shaft	8723546
21	Bearing bracket	7550056
21	Bearing bracket	7592959
21	Bearing bracket	12788653 (replaces 9387333)
21	Bearing bracket	7592942
22	Ball bearing	12785906 (replaces 9381450)
23	Snap ring	12788653 (replaces 7973738)
24	Snap ring	92152060 (replaces 9378332)
25	Ring	9385931
25	Sealing ring	7579964
26	Sealing ring	9387044
28	O-ring	7970361 (replaces 8046625)
29	Companion flange	8723108
30	Screw	7970015
31	Screw	7974785
32	Cotter pin	7974074
33	Bushing	7550270
33	Bushing	7593080
34	Grease	90513210 (replaces 8781684)
