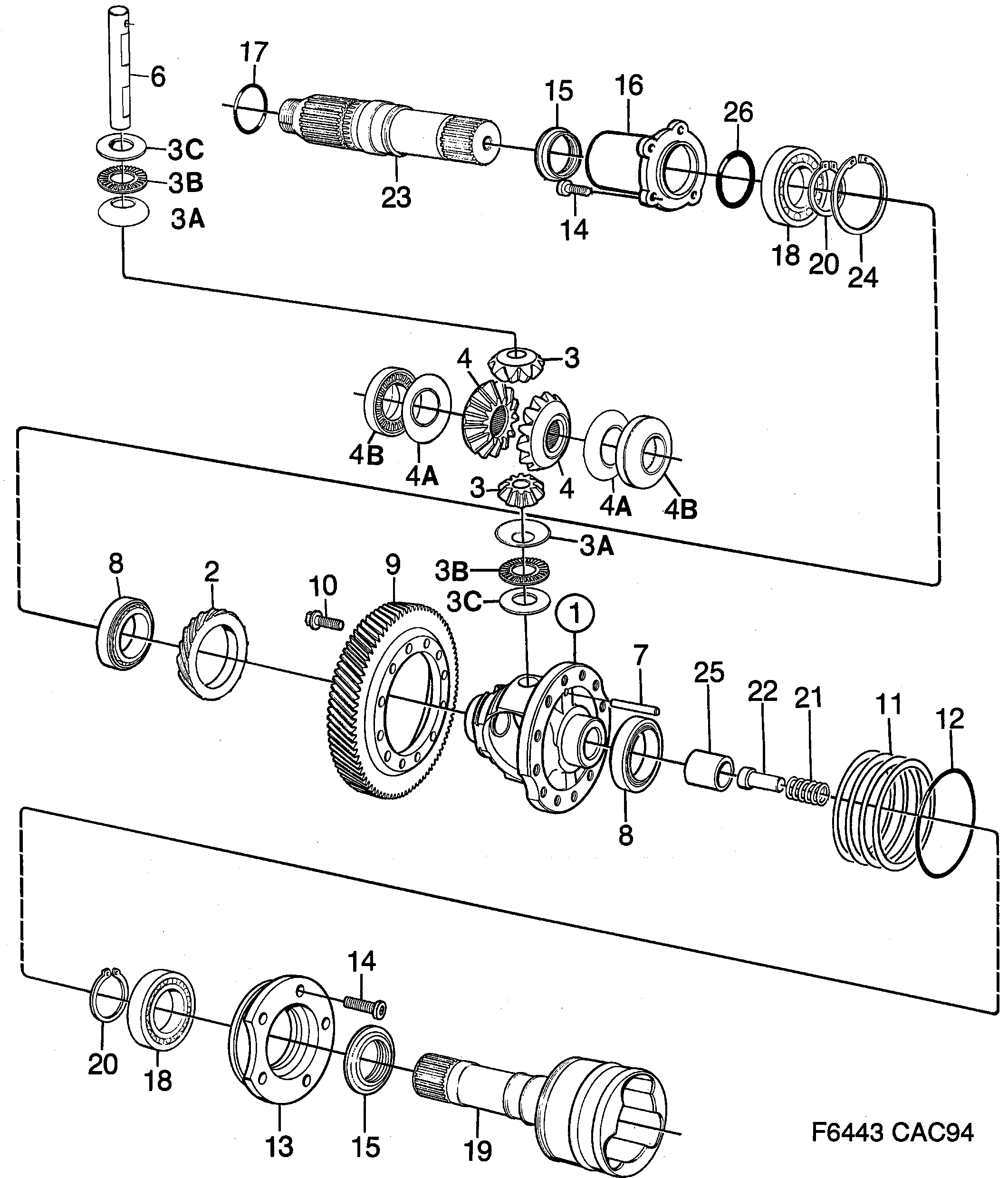

Group 4 Transmission, section 390
| Pos | Article | Part No. |
|---|---|---|
| 1 | Differential | 8741837 |
| 1 | Differential | 8744773 |
| 1 | Differential | 8741845 |
| 2 | Drive gear | 8734964 |
| 3 | Differential pinion | 8733909 |
| 3 | Differential pinion | 8739898 |
| 3A | Washer | 90490816 (replaces 8731788) |
| 3B | Needle bearing | 8730244 |
| 3C | Washer | 8730251 |
| 4 | Differential pinion | 8733438 |
| 4 | Differential pinion | 8737983 |
| 4A | Washer | 8731796 |
| 4B | Needle bearing | 8729758 |
| 6 | Differential shaft | 8719940 |
| 6 | Differential shaft | 8747255 |
| 7 | Roll pin | 8117863 |
| 7 | Roll pin | 30563333 (replaces 8117814) |
| 8 | Roller bearing | 12788353 (replaces 8734568) |
| 9 | Gear | 8730285 |
| 9 | Gear | 12755084 (replaces 8744518) |
| 9 | Gear | 12755084 (replaces 8749855) |
| 9 | Gear | 90540924 (replaces 8730715) |
| 9 | Gear | 90541203 (replaces 8744492) |
| 9 | Gear | 55354670 (replaces 8746893) |
| 9 | Gear | 8732422 |
| 9 | Gear | 8744476 |
| 10 | Screw | 90512199 (replaces 8735193) |
| 10 | Screw | 90512199 (replaces 8741712) |
| 10 | Flange screw | 90512199 |
| 10 | Screw | 55562646 (replaces 4685350) |
| 11 | Adjusting washer | 90511232 (replaces 8734618) |
| 11 | Adjusting washer | 90511233 (replaces 8734626) |
| 11 | Adjusting washer | 90511234 (replaces 8734634) |
| 11 | Adjusting washer | 90511235 (replaces 8734642) |
| 12 | O-ring | 90486232 (replaces 8047144) |
| 13 | Bearing seat | 8734048 |
| 14 | Screw | 92151830 (replaces 8059792) |
| 15 | Sealing collar | 8731804 |
| 16 | Bearing seat | 8734030 |
| 17 | O-ring | 7970361 |
| 18 | Ball bearing | 8704306 |
| 19 | Companion flange | 8720948 |
| 19 | Companion flange | 4103222 |
| 20 | Snap ring | 8728198 |
| 21 | Spring | 8704314 |
| 22 | Plunger | 8704322 |
| 23 | Shaft | 8723140 |
| 24 | Ring | 8048324 |
| 25 | Bushing | 8733230 |
| 26 | O-ring | 8731390 |
| Gasket kit | 8781593 | |
| Gasket kit | 4904553 |
