Saab 9000 1990-1993 Differential

Group 4 Transmission, section 380

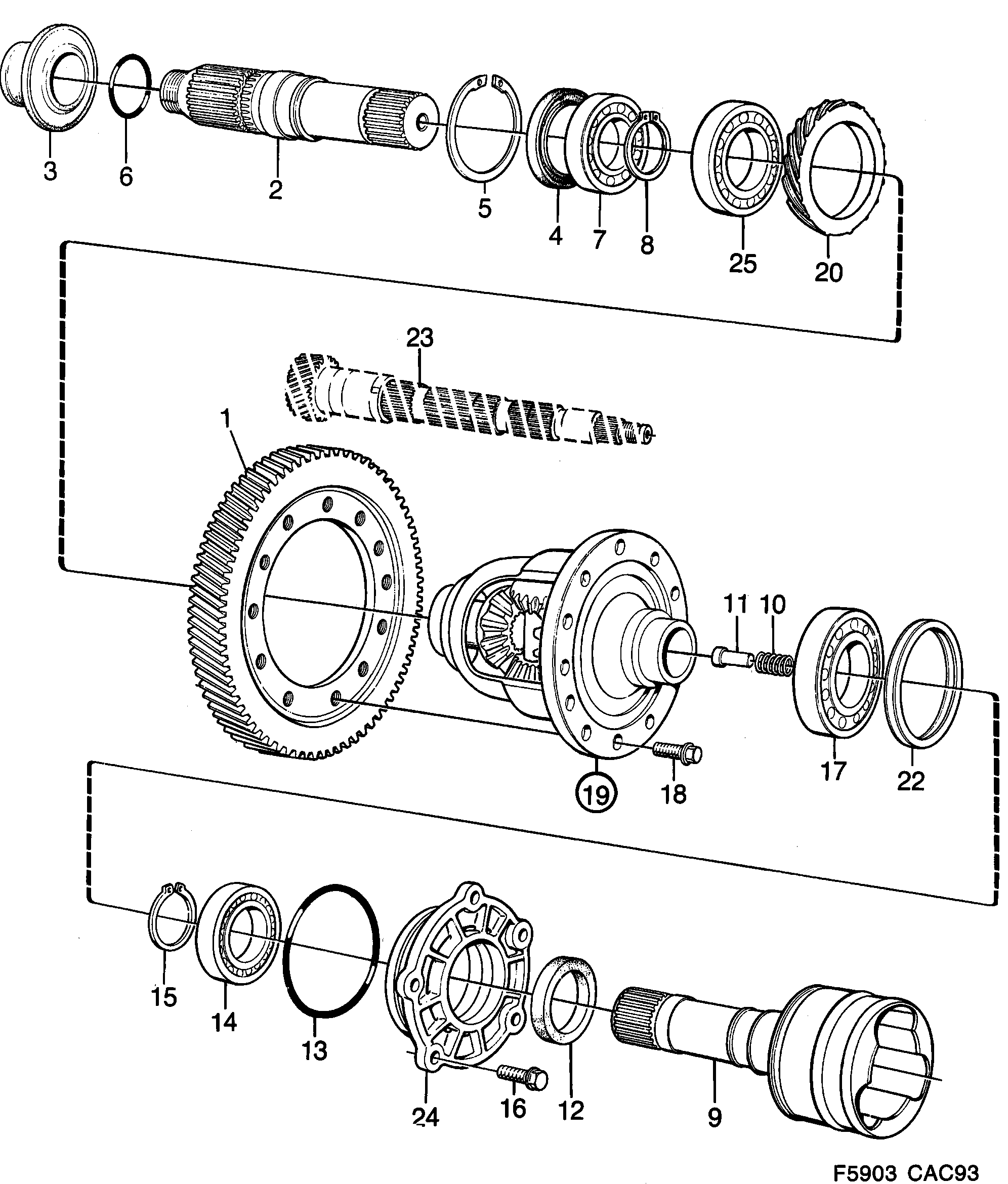

Saab 9000 Differential diagram

Pos	Article	Part No.
1	Ring gear	7571854
1	Ring gear	4026977
2	Shaft	8723140
3	Sealing ring	8720997
4	Seal	7592223
5	Ring	8048324
5	Lock ring	8048324 (replaces 7915036)
6	O-ring	7594898
7	Ball bearing	7558950
8	Snap ring	8728198 (replaces 8047813)
8	Lock ring	8728198 (replaces 7915200)
9	Companion flange	8720948
9	Companion flange	4103222
10	Spring	8704314
11	Plunger	8704322
12	Seal	4280376 (replaces 7592231)
12	Seal	4280376
13	O-ring	7594120
16	Hexagon screw	7558497
17	Roller bearing	7558430
18	Screw	7571862
18	Screw	7571870
19	Differential	8746406 (replaces 8727778)
19	Differential	8746406 (replaces 8729766)
20	Drive gear	8727232
22	Adjusting washer	4122123 (replaces 7597677)
22	Adjusting washer	4122123
22	Adjusting washer	4122131 (replaces 7597685)
22	Adjusting washer	4122131
22	Adjusting washer	7597693
22	Adjusting washer	4122149
22	Adjusting washer	7597701
22	Adjusting washer	4122156
22	Adjusting washer	7597719
22	Adjusting washer	4122164
22	Adjusting washer	7597727
22	Adjusting washer	4122172
22	Adjusting washer	7597735
22	Adjusting washer	4122180
22	Adjusting washer	7597743
22	Adjusting washer	4122198
22	Adjusting washer	7597750
22	Adjusting washer	4122206
22	Adjusting washer	7597768
22	Adjusting washer	4122214
24	Bearing seat	8719098
25	Roller bearing	7558448
	Sealing kit	7575509
	Repair kit	7575566
	Repair kit	7575574
	Gasket kit	7496094
	Gasket kit	7496102
